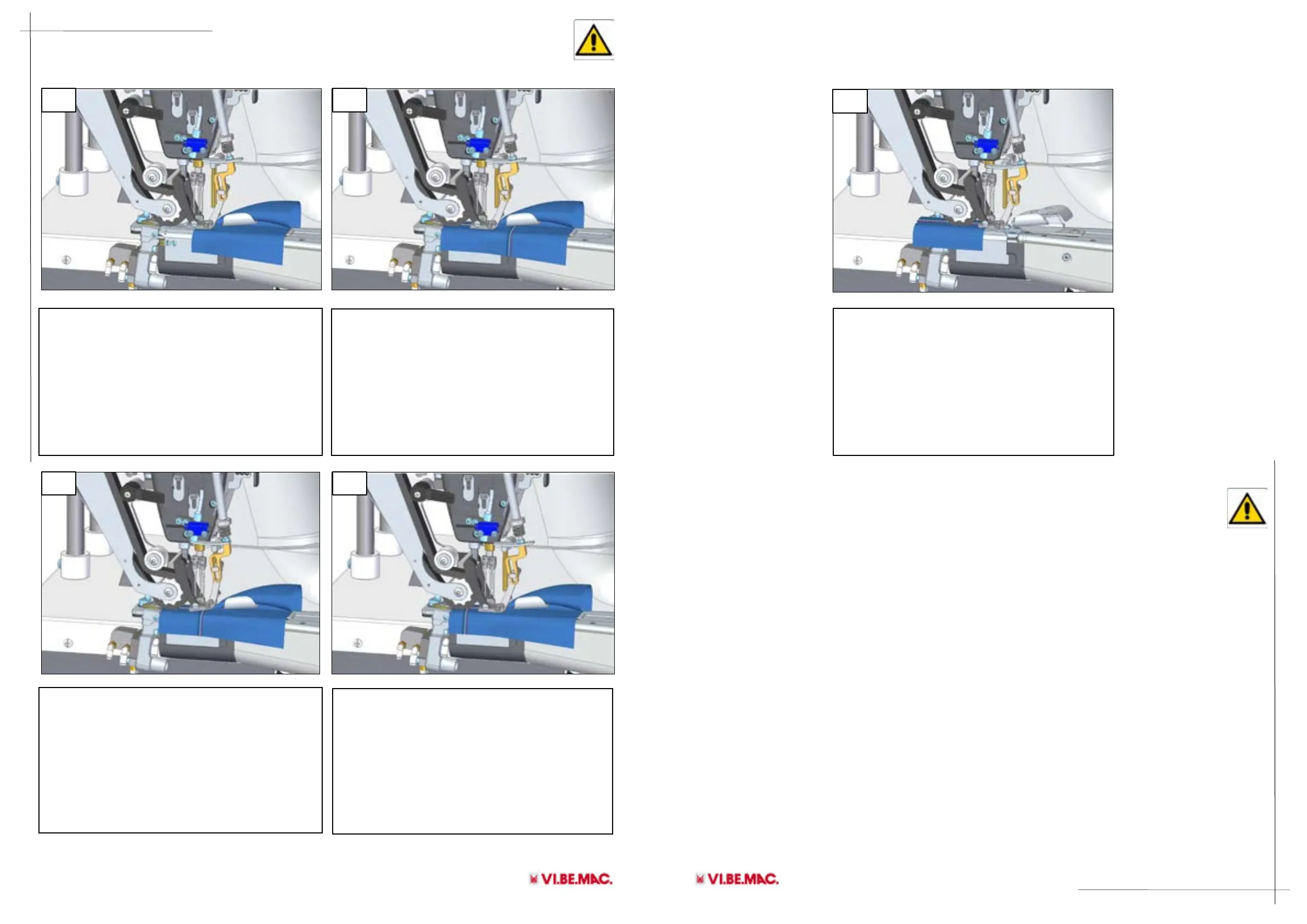

19. SEWING CYCLE PARAMETERS
Sewing Start
High pressure on presser foot (3 bar)
programmable S mode (↓+B+D)
Parameter K32 (standard value 12)
Suction programmable (↓+↑+B) F mode
parameter COB suction time from photocell
OFF
Parameter COA initial cut
On crossing area
Presser foot high pressure (3 bar) & Low
speed (2500 rpm) programmable
(↓+B+D)K42 Duration (standard value 10)
Presser foot cylinder activation
programmable
(↓+B+D) K11Delay (standard value 1)
K12 Duration (standard value 10)
During normal sewing (without
thickness)
Presser foot low pressure (1.2 bar)
High speed (4999 rpm)
After Crossing
Presser foot low pressure (1.2 bar)
High speed (4999 rpm)
Final funcion
After the photocell detects the end of the
fabric the machine sil start the suction
controlled by parameter COC
F mode (↓ + ↑ + B)
20. MITSUBISHI MOTOR
The servomotor MITSUBISHI serves to check the speed of rotation and the position of the
needles of the unit. The motor works with one phase 220 50/60Hz and has a power of 750 Watt.
20.1- Rotation setting
On the display appears:
☐ 2 - 9 9
↑
41.1
40.1
40.3
40.2
40.4
