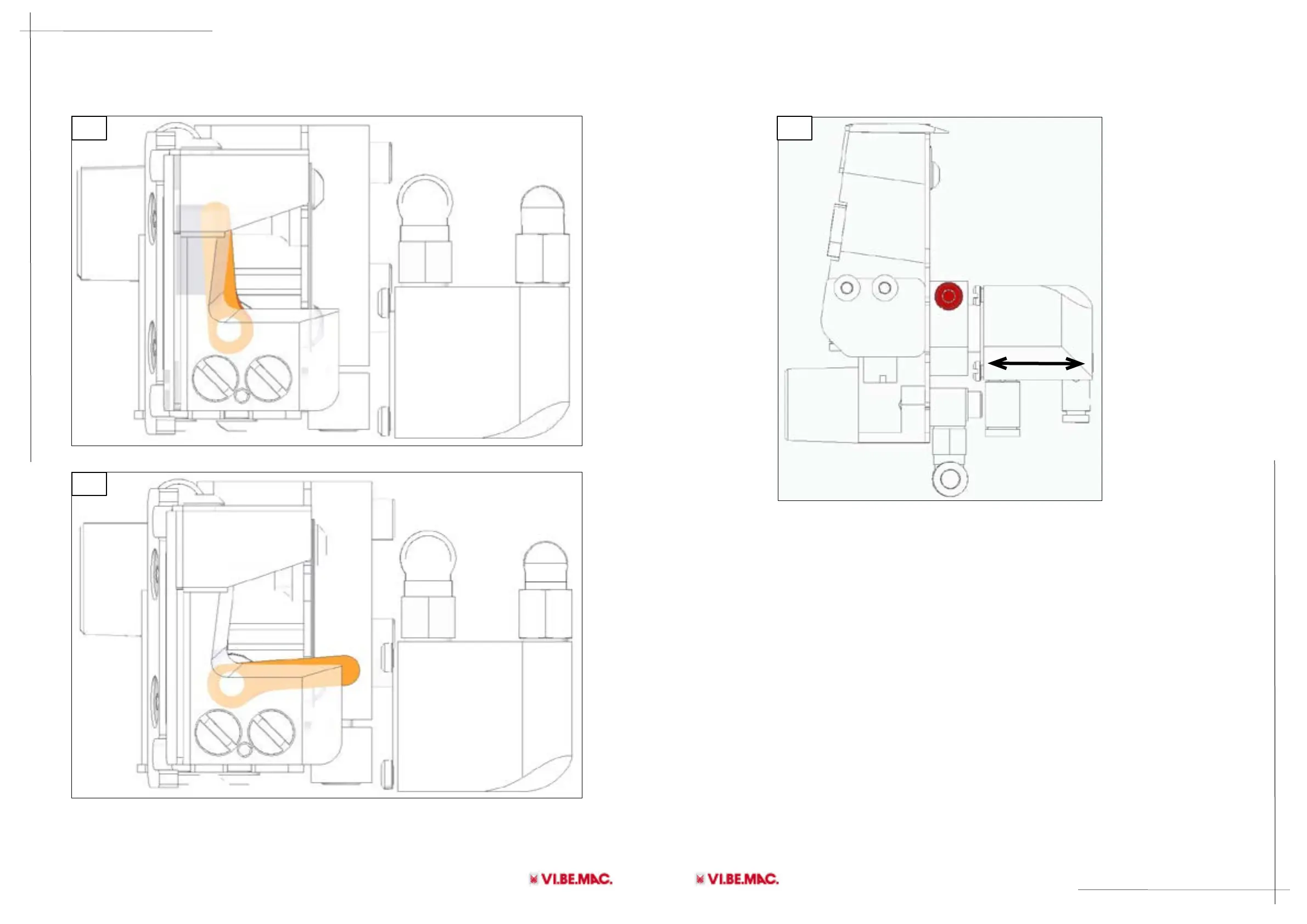

the moving knife of the thread trimmer device is is moved by a rack cylinder , the movement
have to be adjusted like in the below pictures (38.1 and 38.2) and don’t have to touch the sides
when is fully open or closed.
The adjustment of the moving knife position is made by losing the screw (picture 39.1) and
moving the rack cylinder back or forward.
