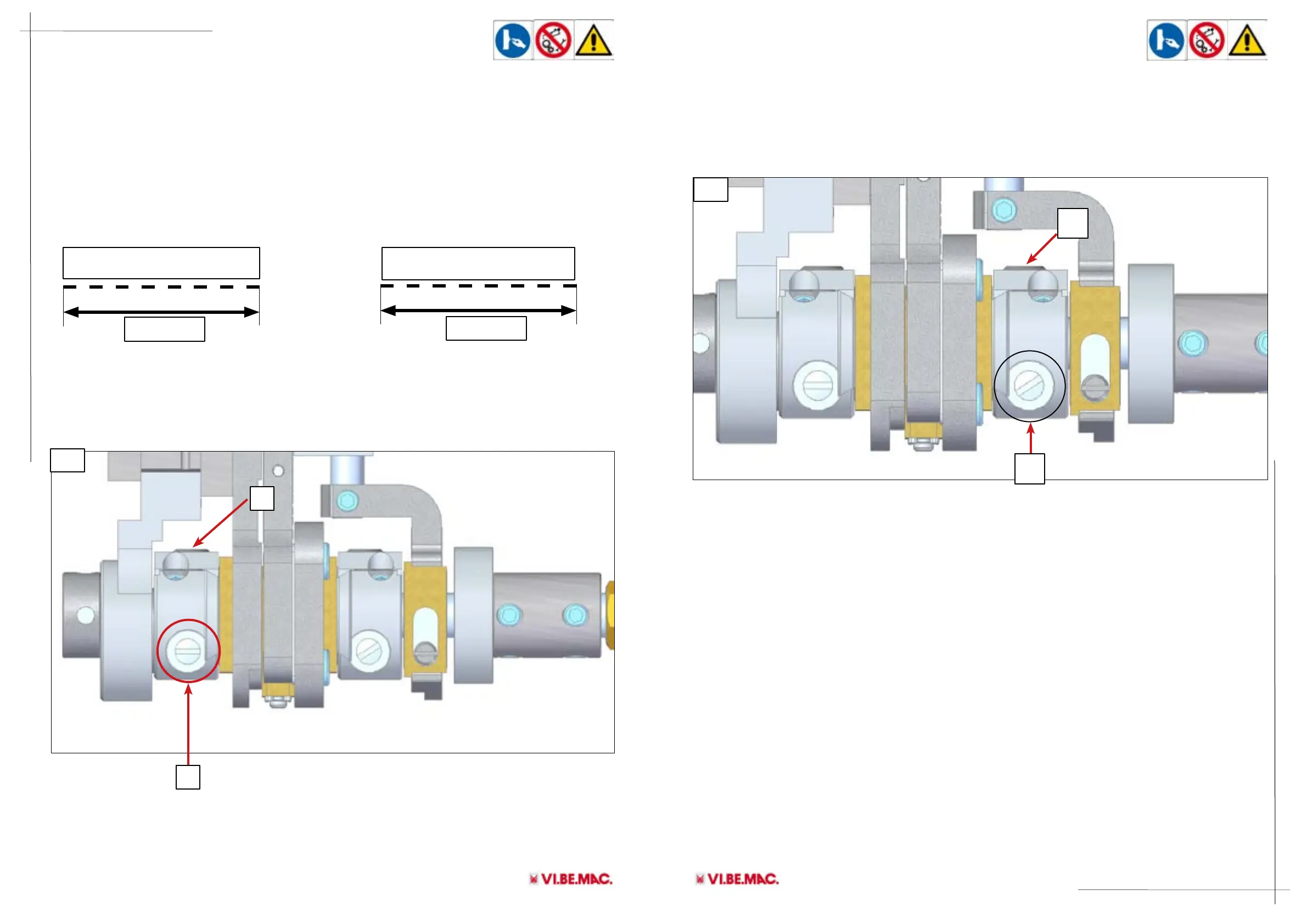

15.3- Stitch length
possible to adjust the stitch lenght:
Unscrewing the screw (B) the point will become longer, screwing it the stitch wil be shortened.
Verify the stitch length by testing the unit without the puller, once reached the desired measure
insert the puller and if required we can slightly increase the stitch length increasing the puller
speed.
ATTENTION: AFTER CHANGING LENGTH ALWAYS ADJUST THE NEEDLE GUARD
7 sticheshes per inch
without puller
1 inch
7 sticheshes per inch after
applying the puller
1 inch
15.4-
and unscrew the B screw to increase the transport and tighten it to reduce the transport (as
per image 33.1 below).
32.1
33.1
