18
PG PLUS RACK + ZERO AIR
& GC PLUS RACK USER MANUAL
www.vicidbs.com
Version 2.00.0000
PG PLUS RACK P/N 100/160 250/300 500/600
CELL DB-CELL-MI DB-CELL-MU1 DB-CELL-MU2
GAS LIQUID SEPARATOR (GLS) DB-RH200-010
OVER PRESSURE RELIEF VALVE DB-H200-035
PERMA PURE TUBES DB-H200-034
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:

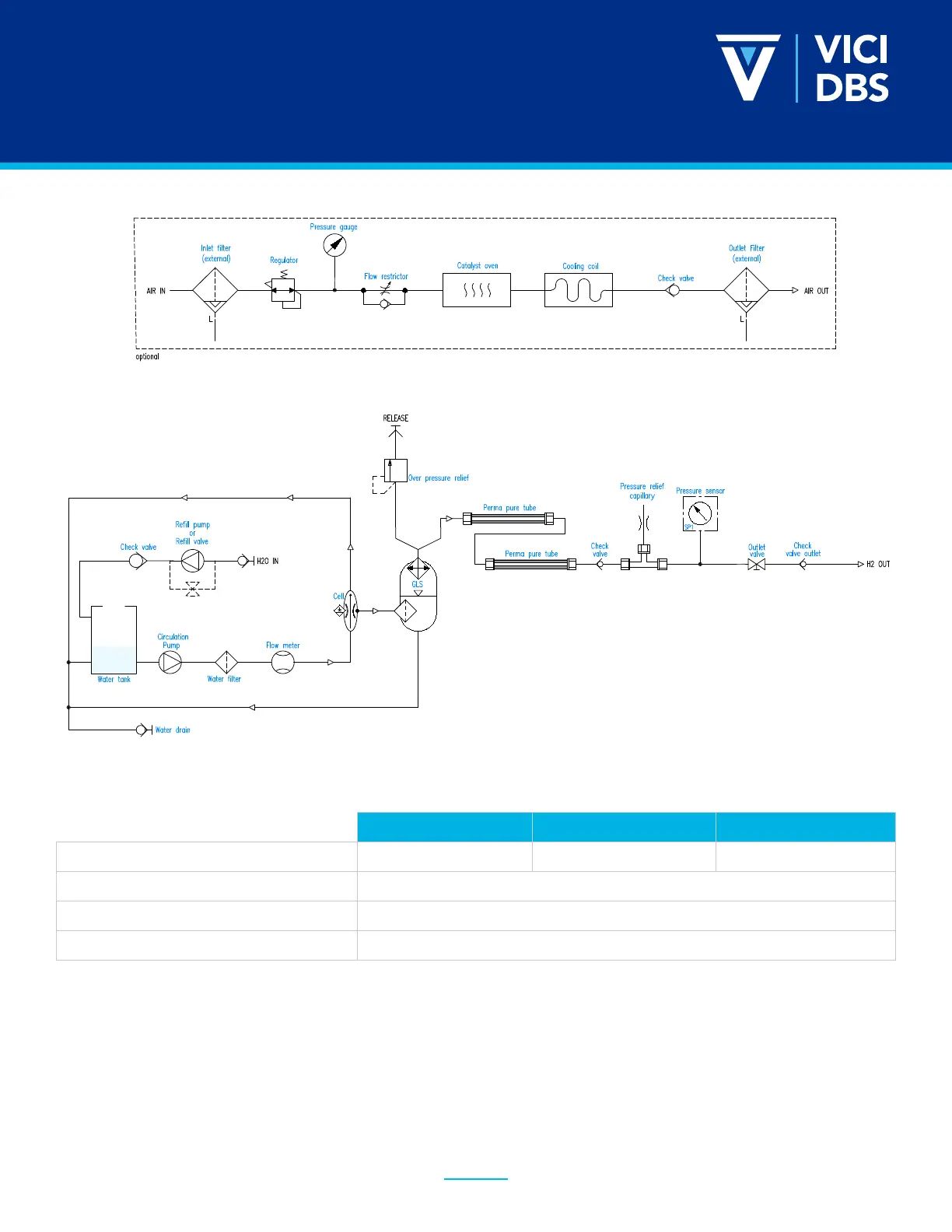

PG Plus Rack
water and hydrogen flow diagram
06.10.2020
06.10.2020
SBU
SB
1
1/1
