NOTE: More frequent replacement of the inlet lter may be required depending on the quality of the air
supply. Alternately, more ltration can be applied upstream of the GC Zero Air generator.
11.4. THREE YEAR CATALYST CHAMBER REPLACEMENT
The catalyst chamber used in the GC Zero Air generator should be replaced every three years to maintain
carbon monoxide and hydrocarbon specications. The system should be shut down as described above prior
to replacement. Allow the unit to cool down for a minimum of two hours before replacement.
• If unit has been powered recently and catalyst is hot, turn off the power. DO NOT turn off the air at the
same time.
• Remove the outlet connection and allow the outlet air to ow freely for two hours to cool the catalyst.
After two hours of cool-down, disconnect the air supply. Depressurize the system by depressing the pin at
the bottom of the inlet lter housing.
• Open top cover
• Carefully disconnect the two compression air ttings to remove the cooling spiral.
• Remove heater connections from the control board.
• Unscrew the two screws to remove the aluminum plate from the metal heat shield covering the catalyst.
• When the catalyst chamber is cool enough to touch, extract the catalyst chamber from the side.

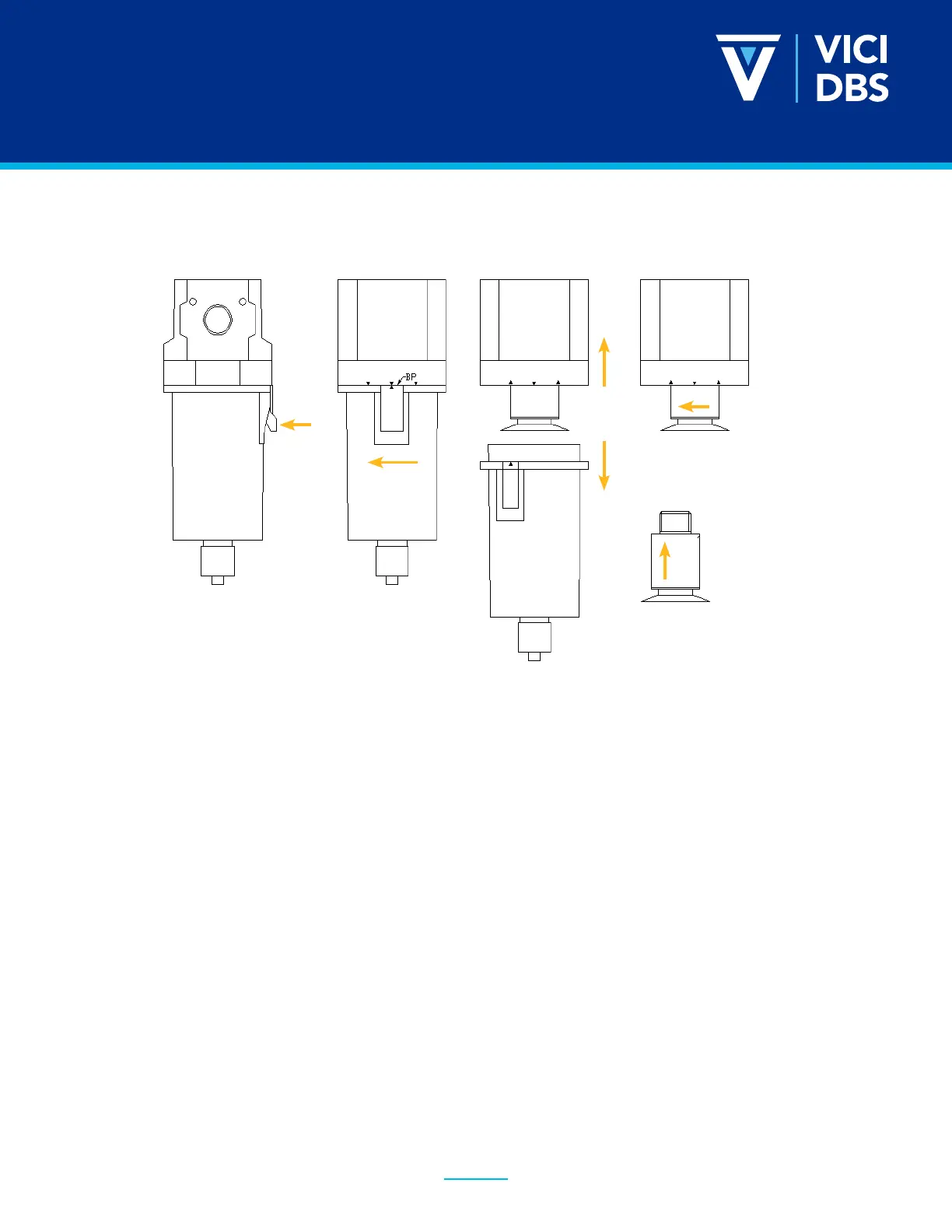

Push
Unscrew
Turn
Pull
Apart
Pull and
Replace
Element Filter
Diagram 1 Diagram 2 Diagram 3 Diagram 4
To Next Page
