21
PG PLUS RACK + ZERO AIR
& GC PLUS RACK USER MANUAL
www.vicidbs.com
Version 2.00.0000
GC PLUS RACK MODEL LED DISPLAY BOARD MAIN BOARD FAN MAIN SWITCH
1800 DB-NGT000-019 DB-NGC004-016 DB-H200-040 DB-RH200-001
5000
10000
15000
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:

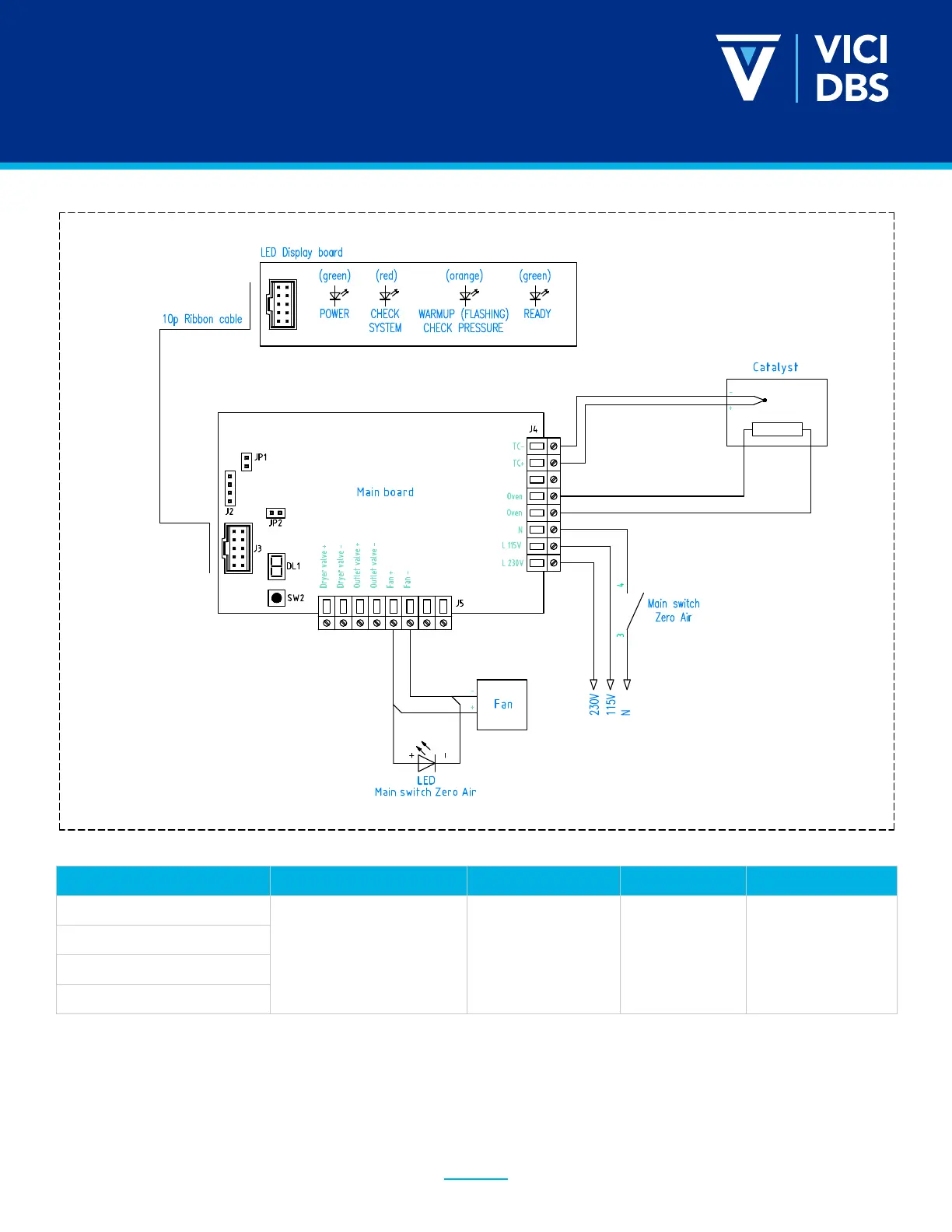

Zero Air option for Rack
electrical diagram
14.10.20
08.06.20
SBU
SB
1
2/2
