Vicon CMP 3001F - Moving the Mower into Transportposition

G0202MKD3 EN10
5

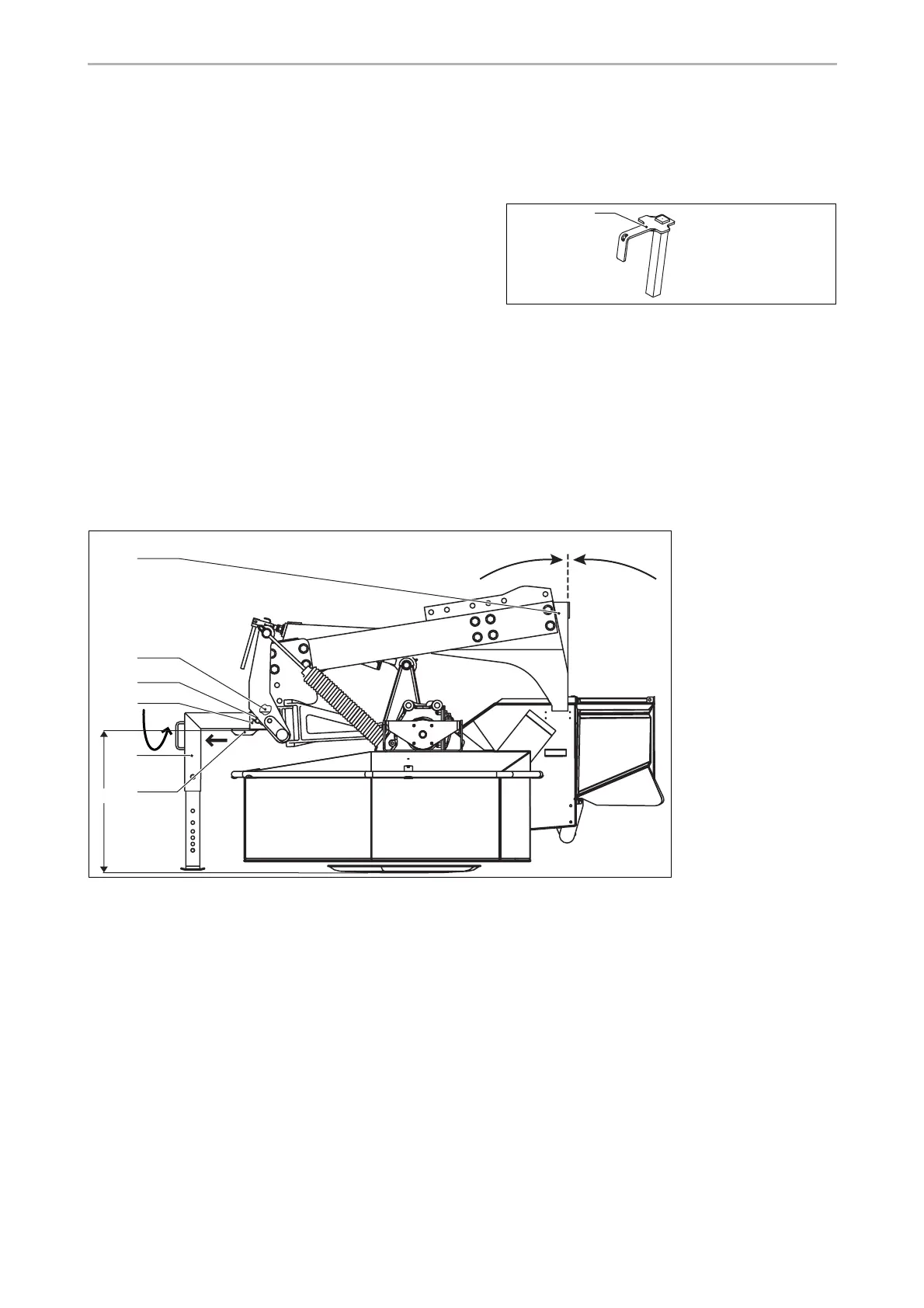

a) Lift machine till jack stand (3) comes free of ground.
b) Pull spring clip out of pin (35), remove pin (35) from
lower supports (2).
c) Pull out the jack stand (3) horizontally. Turn the jack
stand 90° to the right. Then lay jack stand at hook (36).
d) Slide the pin (35) through the hole of the upper sup-
ports, then safety by the spring clip.
6
Pull the blocking pins (43) out and place them in their
holder.
7
Always use stabilisers or check chains to prevent side-
ways movement of the machine.
8
If required fit depth limiting chain (option) (also refer
3.1).
2.2 Moving the mower into transport-
position
9
Pressurize lifting cylinder through control lever. Now
the cylinder will fully lift the mower.
10
Close cock of the lifting cylinder.
11
Lift the mower fully by using the 3-pt front linkage con-
trol lever.
43
MD0209
MD0206
3
2
35
4
36
