Vicon CMP 3001F - Shearbolt Overload Protection of the Conditioner

G0202MKD3 EN20
Attention:
ALWAYS recheck new position by rotating the drums:
the minimum distance between two blades that may
occur is 2 cm (4/5 in)!
5
Install skid saucer.

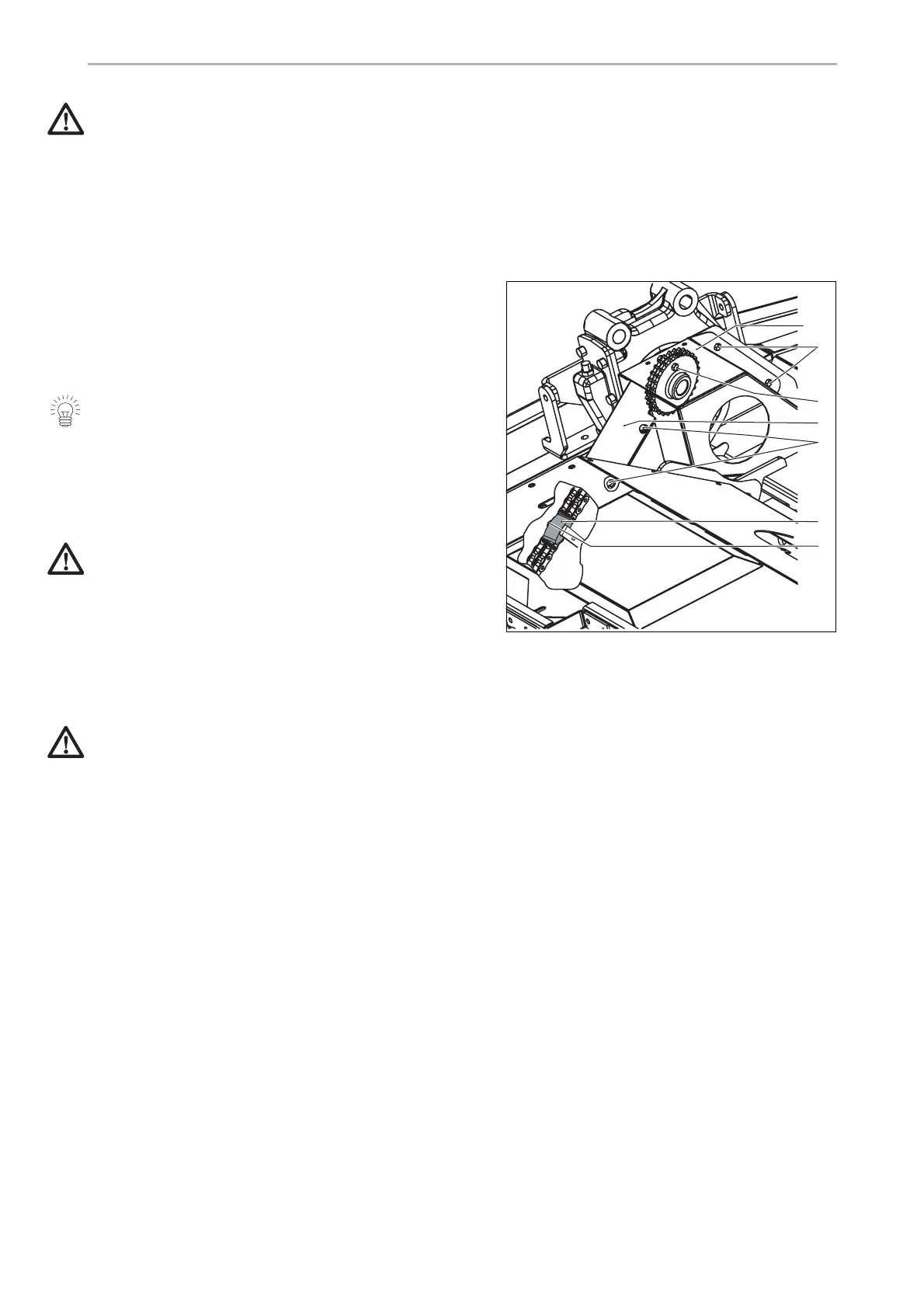

5.7 Shearbolt overload protection of
the conditioner
If a blockage occurs in the conditioner area, shearbolt (28)
of the chain drive will break causing the drive system to stop.
Clear the blockage and install a new shearbolt
M8x40DIN931-8.8 ('ND1586V') and a new selflocking
hex. M8-nut ('ND2097V').
To replace the shearbolt proceed as follows:
To replace shearbolt (28),put machine in trasport position
(see 4.1).
1
Release bolts and nuts (30) and pull out the protective
hood (34) of the chain case.
2
Remove all residues of the shearbolt.
Attention:
When replacing the shearbolt ensure that no broken
parts can fall down. It must therefore be ensured that
the shearbolt (28) is secured by both retaining rings
“DZ117”!
1
Insert the new shearbolt into the outer flange, rotate the
drums so as to move the bolt through the inner flange,
too. Replace the nut.
Attention:
Tighten the nut slightly only (24 N) to prevent any ter-
sile stress.
2
Install the protective hood (34) and tighten bolts and
nuts (30).
Holder on the lh side of the conditioner contains spare
shearbolts.
MD0203
2
626
2
424
2
525
3
030
3
434
2
828
2
727
