Assembly - attachment
34
Hydraulic connection
The tractor should be equipped with 1 sets of double-acting hydraulic
outlets.
Connect the machine's hydraulic system to the tractor.
First start-up of
machine
The initial test drive of the machine is important
When the machine is connected to the tractor for the first time into
must be test driven.
Attention to the safety instructions assures the personal safety of
yourself and others.
Failure to follow the safety instructions may result in serious injuries.
Raise the machine.
Carefully connect the tractor's PTO shaft.
Carefully increase the speed on the PTO shaft to 540/1000 rpm.
»Checking the rpm« page 30
Check that the machine runs smoothly without any vibrations.
Return the PTO shaft to idle speed.
Connect the tractor's hydraulic system.
Activate the tractor's hydraulic system and raise/lower the
machine's cutting unit (for turning at the headland).
Disconnect the tractor's hydraulic system.
Disconnect the tractor's PTO shaft.
Check that the tractor PTO has stopped rotating.

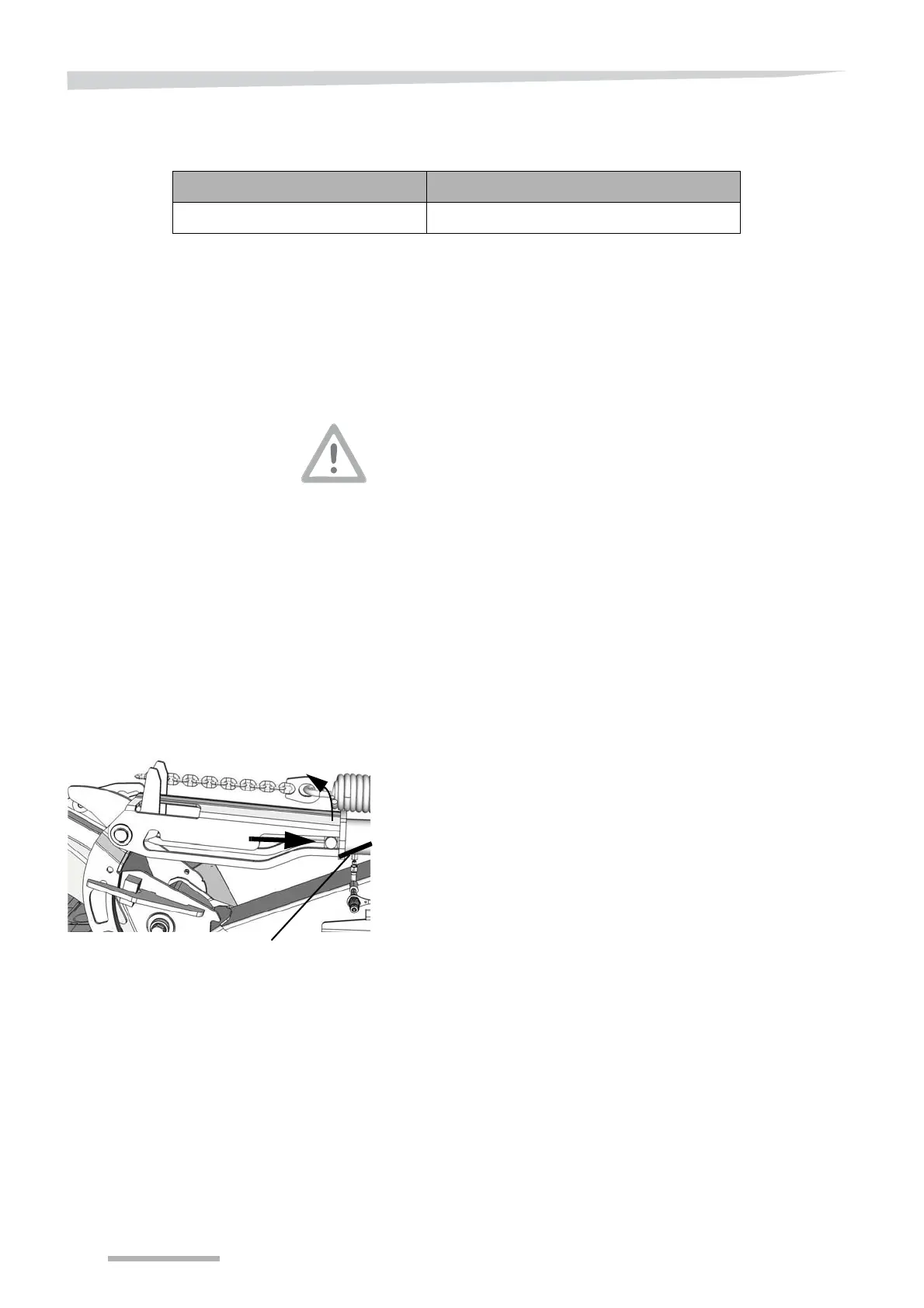

Pull and hold the cord and activate the tractor's double-acting
hydraulic system and let the machine's cutting unit swing up to the
transport position.
Activate the tractor's double-acting hydraulic system and let the
machine's cutting unit swing down to the working position.
Observe the machine's hydraulic cylinder and disconnect the
tractor's hydraulic system when the machine's hydraulic cylinder
has moved to the outermost position.
Hydraulic outlets on the tractor Function
Double acting hydraulic outlet Machine in transport and working position
