Maintenance
91

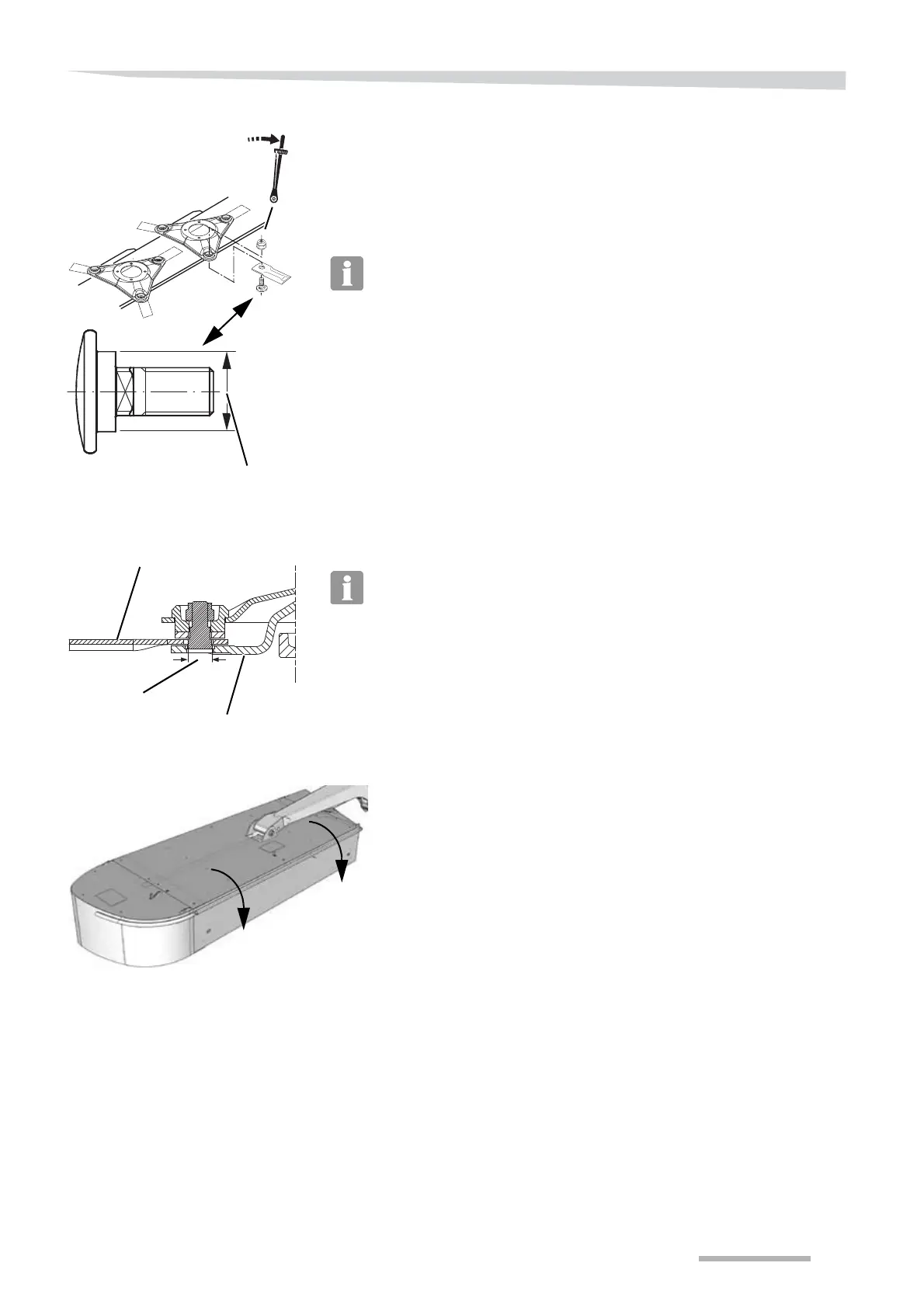

Turn the cutting discs by hand until the damaged knife is in the
position shown.
Use a suitable wrench and remove the bolt.
Replace the knife.
Inspect the bolt for wear.
• If the bolts are damaged or worn, they must be changed.
The minimum diameter of the bolt must not be less than 16 mm
(
5
/
8
”).
Mount the knife and bolt.
Tighten up the bolt with a torque wrench to the torque shown.
If the machine is fitted with knife quick release, the same requirement
applies for bolt wear.
Pull and release the lock.
Close the machine's front guard.
Minimum
16 mm (
5
/
8
”)
95 Nm +/- 5
70 ft/lb. +/- 3
Min. 16 mm (
5
/
8
”)
Spring
Knife
