30
EN
16657715_en 05/2006
5 Operation

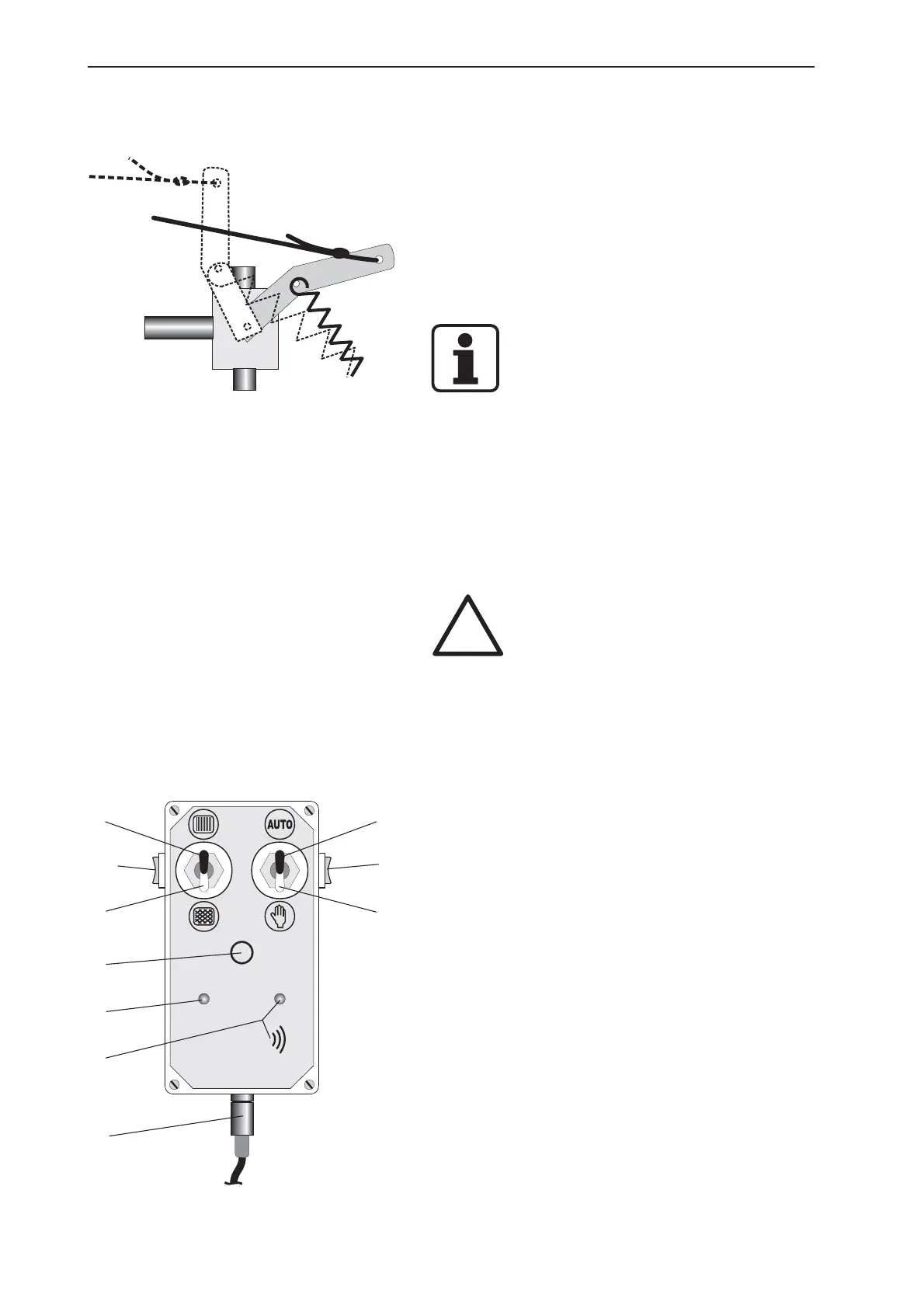

The hydraulic functions “pick-up” (a) and “cutting
mechanism” (b) are preselected by using the single
acting control unit. To preselect the desired function,
pull the Bowden cable acting on the diverter valve
located on the left hand front side of the machine.
Use the double acting control unit to open or close the
tailgate.
Note:
After the tailgate has been closed, keep
operating the control unit for abt. three
seconds. This will allow the hydraulic circuit
of the round baler to be filled uniformly.
5.1 Tying control
5.1.1 Control box
The control box must be installed in the tractor cab as
described in chapter 4.2.
Attention!
Always protect the control box from
moisture and mechanical damage.
A beep signal is generated, and the LED lights up, when
the control box is switched on.
Description of the functions:
1 Switch O = OFF
I = ON
II = EMERGENCY MODE
2 Preselect twine tying
3 Preselect net tying
4 Keypad for manual tying start
5 LED control box functional
6 audible / visual signal
7 Cable
8 Preselect manual tying start
9 Preselect automatic tying start
10 Rocker switch for emergency tying (net or twine) -
By-passes the electronic control in conjunction with
the machine box.
2
10
3
9
1
8
4
5
6
7
