Loading a new net reel; threading the net:
Fold back the tensioning lever (1).
WARNING! The lever is spring loaded!
Place the net reel in the net box; observe the
wrapping direction!

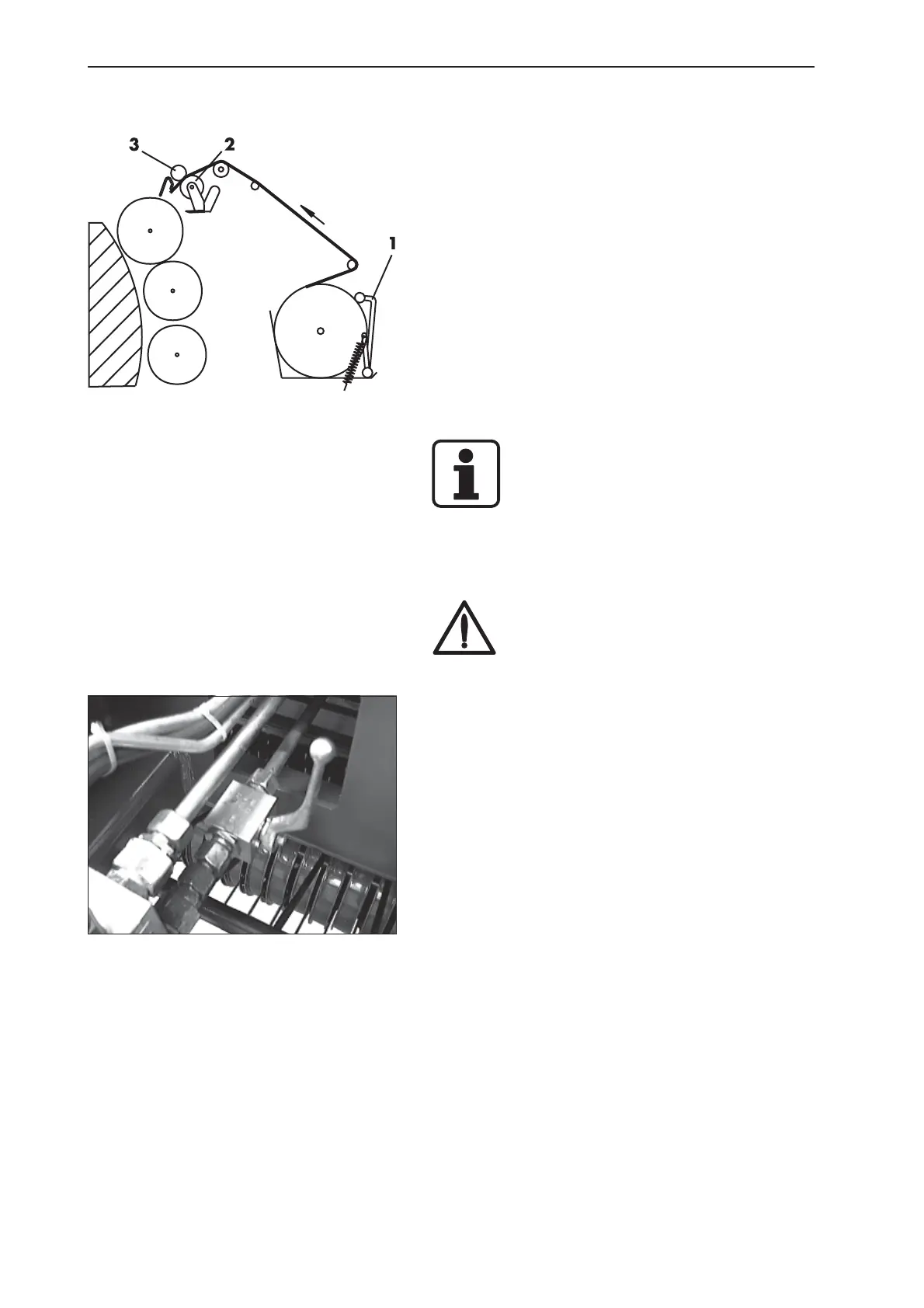

Place the net over the guiding pipes; see fig.
Gather together the beginning of the net to half its
width and press between the rubber roller (2) and
the aluminium roller (3). Turn the rollers slightly until
the net is securely caught.
Return the tensioning lever (1) to its original position
against the net reel.
Note:
take note of the running direction of the
net when laying the roller in on the net
brake.
5.6 Tailgate
Danger!
Take care when opening and closing the
tailgate. Shut the hydraulic shut-off tap
before entering the bale chamber. No
persons may remain in the swinging
range of the gate.
The tailgate is activated directly from the double-acting
control unit. The tailgate is opened fully using the ‘Raise’
function on the control unit. The tailgate is closed with
‘Lower’ on the control unit. When binding ends, a horn
signal will sound for 3 seconds followed by a series of
shorter signals until the rear trap is closed again. Finally,
the signal changes for 2 seconds into shorter signals.
The control unit should be held in the ”Lower” position
until the signal finally ceases. (Build-up of pressure!).
