Vicon RF121 R - Operating Cycle Displays

35
EN
16657715_en 05/2006
The „AutoPlus“ must be installed in the tractor cab as
described in chapter 4.2. The hydraulic functions for
the pick-up and cutter assembly are actuated by the
single-acting controller (double-acting on 0C23). Only
one function can be preselected on the AutoPlus at a
time.
The tailgate is not actuated via the „AutoPlus“, but
directly via the double-acting controller. After switching
on „AutoPlus“, an internal monitoring program is
initiated. After successful completion of the monitoring
program the daily bale counter appears, with the
binding display on the right.
5.2.2 Displays during the operating cycle

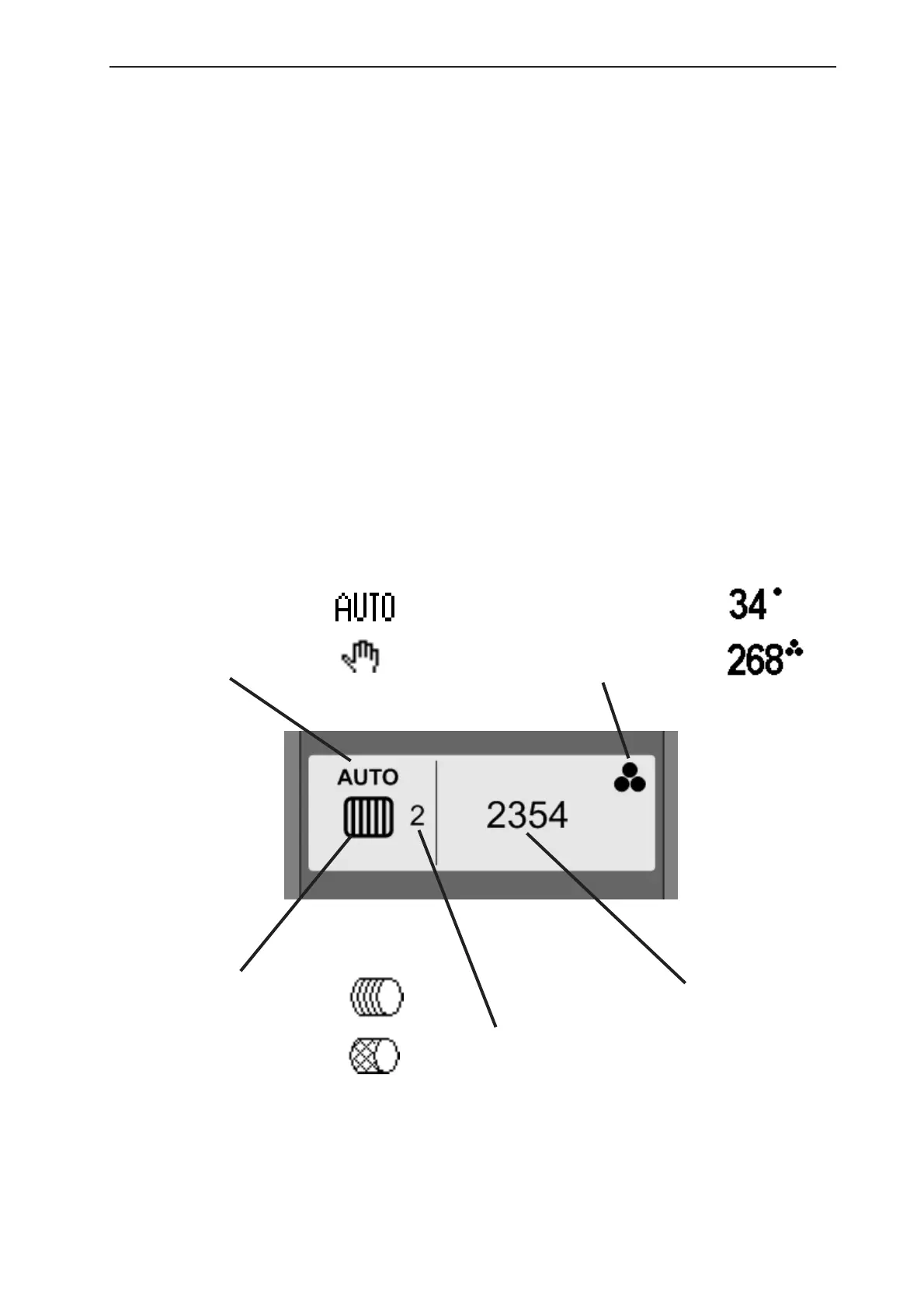

a.) Overview
Bindingprogram
Bind1
Bind 2
Bind 3
Automatic mode
Manual mode
Preselection of net binding
Daily bale counter
Preselection of twine binding
Total bale counter
Bale quantity
