5.4.3 Adjusting the cutting angle

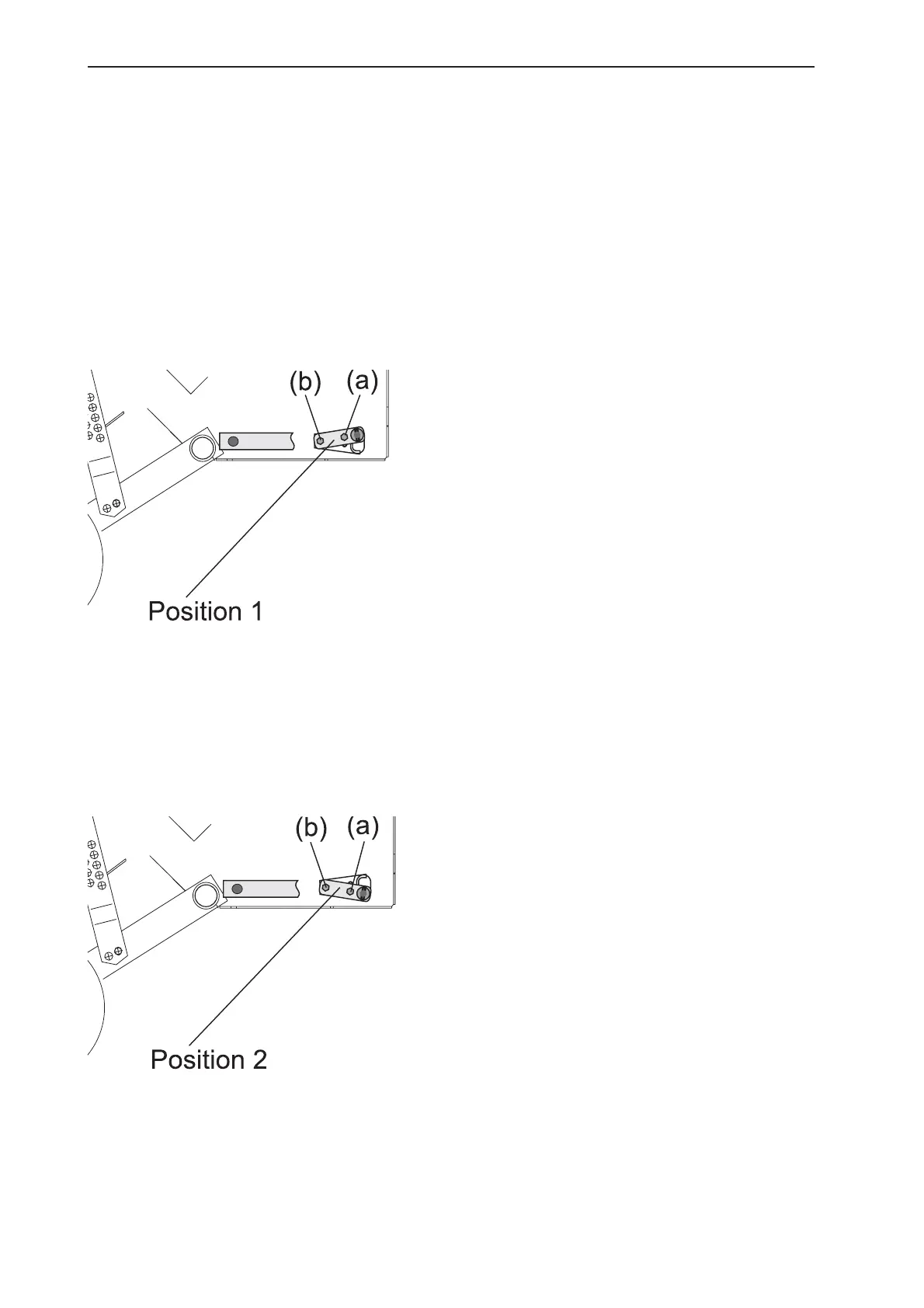

 Blade shaft, pos. 1
- steep cutting angle for ‘precision cutting’
 Blade shaft, pos. 2
- obtuse cutting angle for ‘normal cutting’
(approx. 20% lower power consumption)
Adjusting the cutting angle from ‘normal cutting’ to
‘precision cutting’:
 Move out the cutting system hydraulically, switch
off the tractor engine
 Unscrew fixing bolt M10 (a) on the left and
right-hand sides,
 Undo the hinge screw M10 (b) on the left and
right-hand sides,
 Move in the cutting system hydraulically, switch
off the tractor engine,
 Assemble fixing screws (a) in the upper position,
 Tighten the fixing and hinge screws (a, b) at the
left and right.
Adjusting the cutting angle from ‘precision cutting’ to
‘normal cutting’:
 Move in the cutting system hydraulically, switch
off the tractor engine,
 Unscrew fixing bolt M10 (a) on the left and right-
hand sides,
 Undo the hinge screw M10 (b) on the left and
right-hand sides,
 Move out the cutting system hydraulically, switch
off the tractor engine,
 Assemble fixing screws (a) in the lower position,
 Tighten the fixing and hinge screws (a, b) on the
left and right-hand sides.
