6.18 Sensormatic / American Dynamics Dome
6.18.1 Reference material and documents
Dome Sensormatic DeltaDome II
Rs-422/RS-485 Communication Protocols, 8000-2694-01, Rev.A

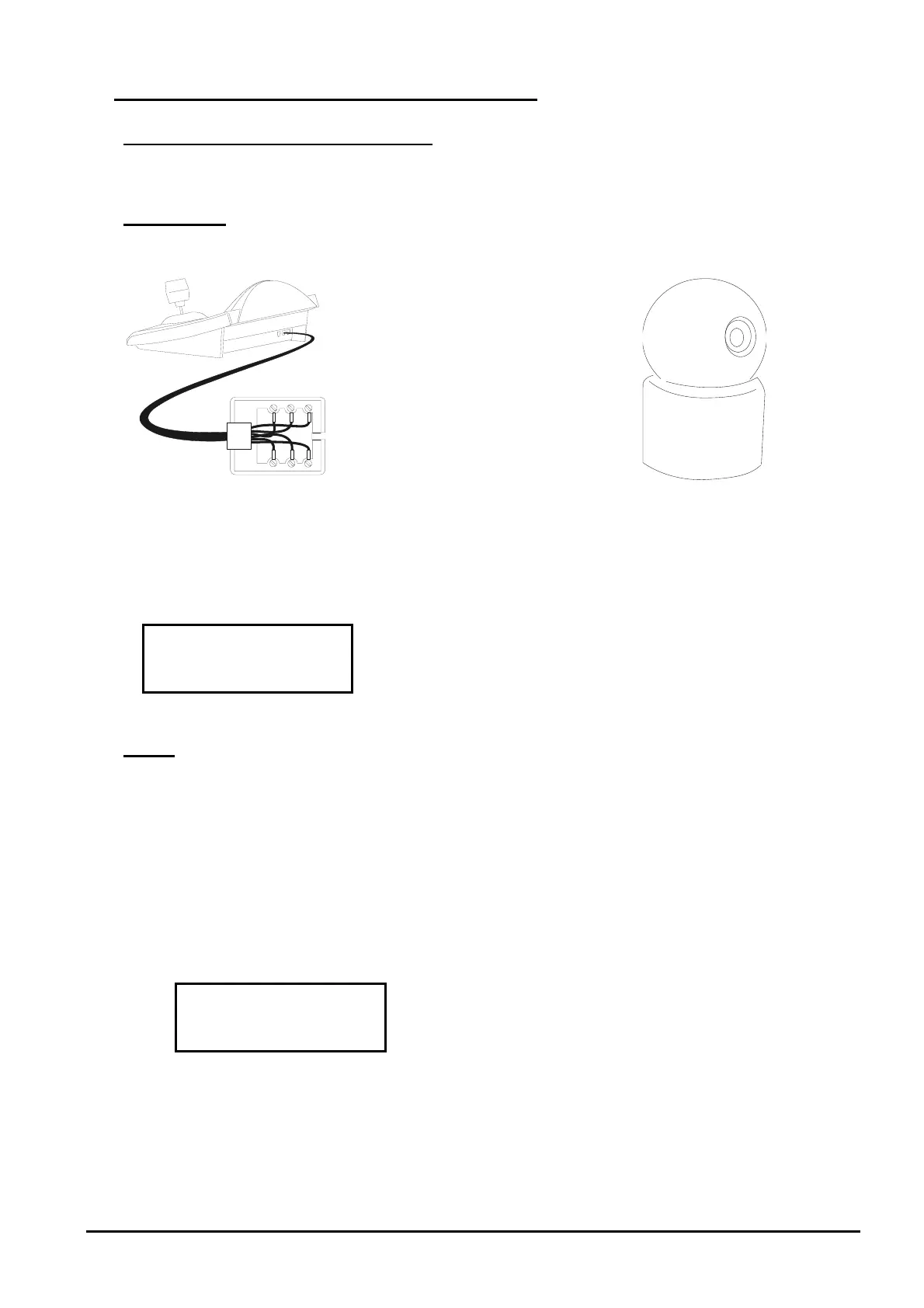

6.18.2 Connection
6.18.2.1 Cable
White
Yellow
RS485
A
RS485B
RX +
RX -
6.18.2.2 Dome settings
Dome ID-number must be set according to the respective installation manual.
6.18.2.3 Keyboard settings
During Keyboard setup, submenu  must be suitably set:




Baudrate is fixed (480
0 ba
ud).

6.18.3 Setup
Dome setup is mostly carried out by On Screen Menu.
Some parameters can be set up by pressing a combination of keys or by inserting a special code.
For all setup operations the keyboard must be enabled to perform the receiver setup (menu
).
6.18.3.1 OSM Setup
Connect the dome directly to the keyboard and a monitor to the dome video outlet.
The DCJ keyboard enter in special mode during the dome setup.
 start dome setup
The dome show the On Screen Menu; the keyboard shows the change mode in the display:




 setup end
Joy
stick
: cursor movement within the menus
 or / : select the submenus
 or to increase a value; cursor to the right in text definitions
