6.16 Samsung Dome
6.16.1 Reference material and documents
Dome Samsung SCC-641
Dome Samsung SCC-643P
Samsung Protocol

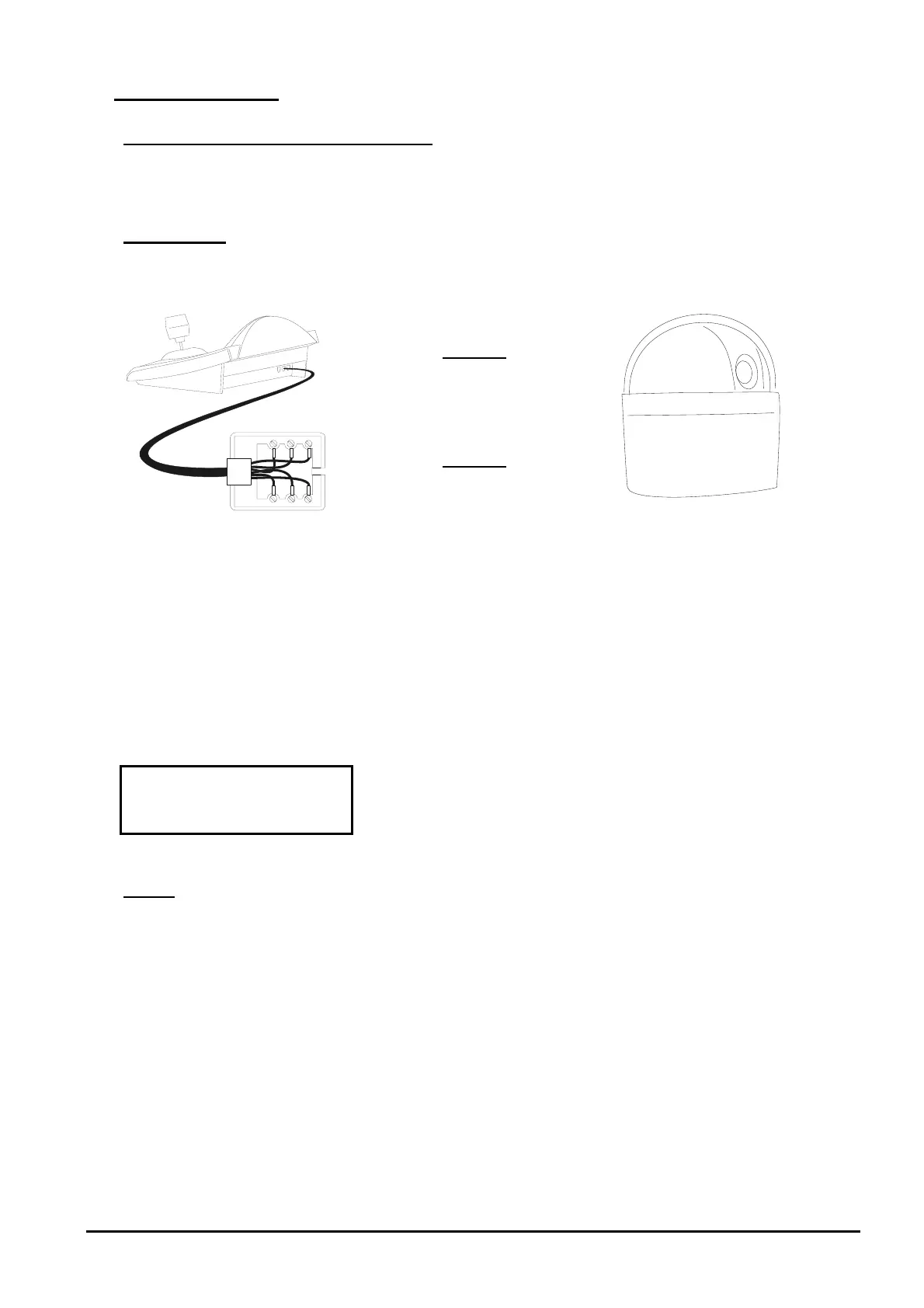

6.16.2 Connection
6.16.2.1 Cable
White
Yellow
White
Yellow
SCC-641
RS485A
RS485B
SCC-643
RS485A
RS485B
Txd +
Txd -
Rxd +
Rxd –
6.16.2.2 Dome settings
Dome ID-number must be set according to the respective installation manual.
Baudrate can be selected among the following values: 4800, 9600 (default), 19200, 38400 baud.
For the Dome SCC-643 configure the mode FULL DUPLEX. Should the system require it, there can be
configured the mode HALF DUPLEX: in this case the connection is the same as for the Dome SCC-641, on the
poles Txd+ and Txd-.
6.16.2.3 Keyboard settings
During Keyboard setup, submenu , must be suitably set:




Baudrate mu
st be equ
al to the one selected for the dome.

6.16.3 Setup
Dome setup is mostly carried out by On Screen Menu.
Some parameters can be set up by pressing a combination of keys or by inserting a special code.
For all setup operations the keyboard must be enabled to perform the receiver setup (menu
).
