6.20 VCL Dome
6.20.1 Reference material and documents
Dome VCL 8” Internal Orbiter
Details of VCLTP Protocol, file ref. CIMICRO8 26.05.99

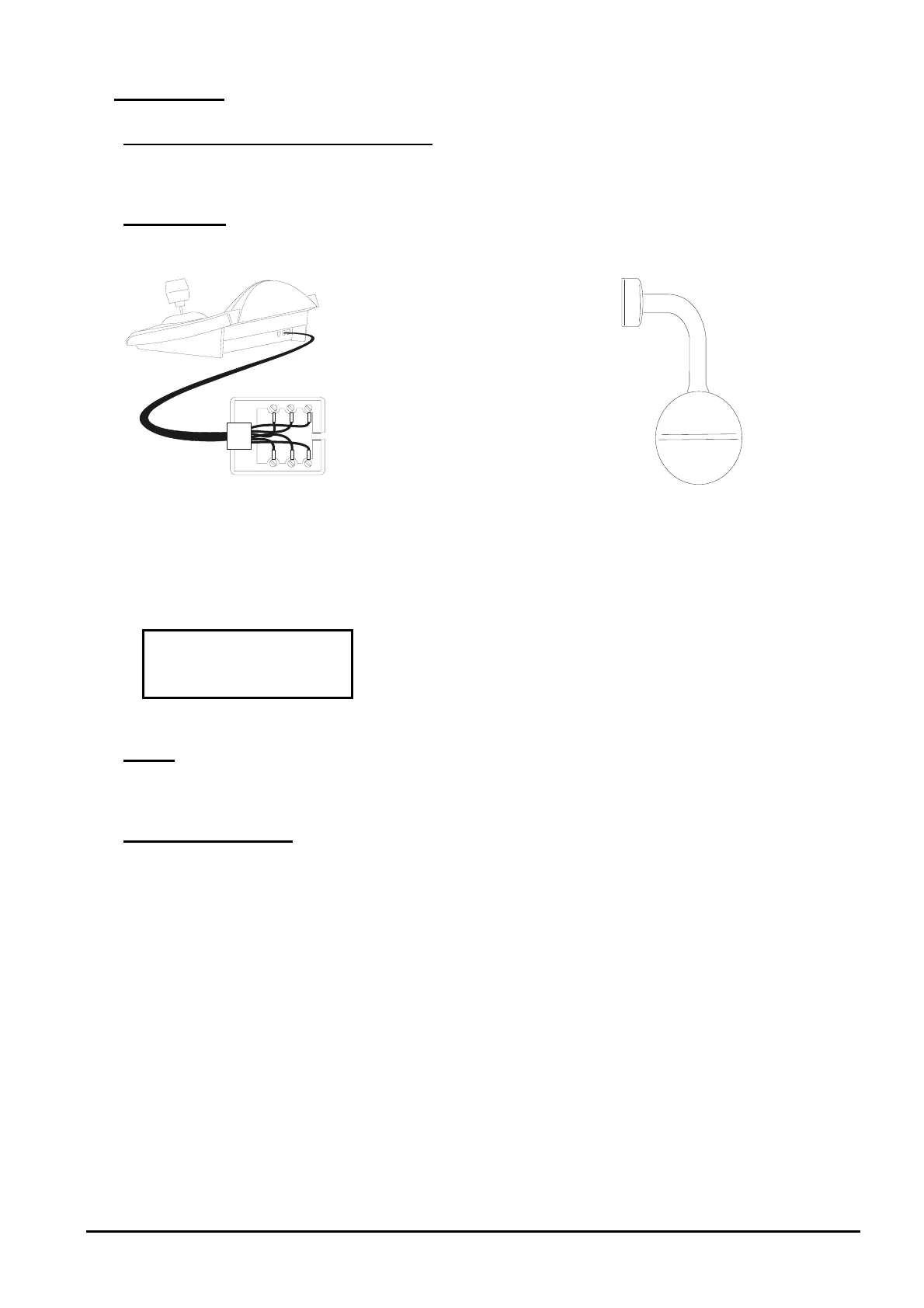

6.20.2 Connection
6.20.2.1 Cable
White
Yellow
RS485
A
RS485B
D +
D -
6.20.2.2 Dome settings
Dome ID-number must be set according to the respective installation manual.
6.20.2.3 Keyboard settings
During Keyboard setup, submenu must be suitably set:
Baudrate is fixed (960
0 ba
ud).
6.20.3 Setup
During dome setup the keyboard must be suitably set on TELEMETRY CONFIGURATION
(
menu)
6.20.4 Preset, scan, home
(0÷127): store the present position as preset position number X
(0÷127): movement towards previously stored preset position X
: movement towards the Home position, corresponding to preset position 1
