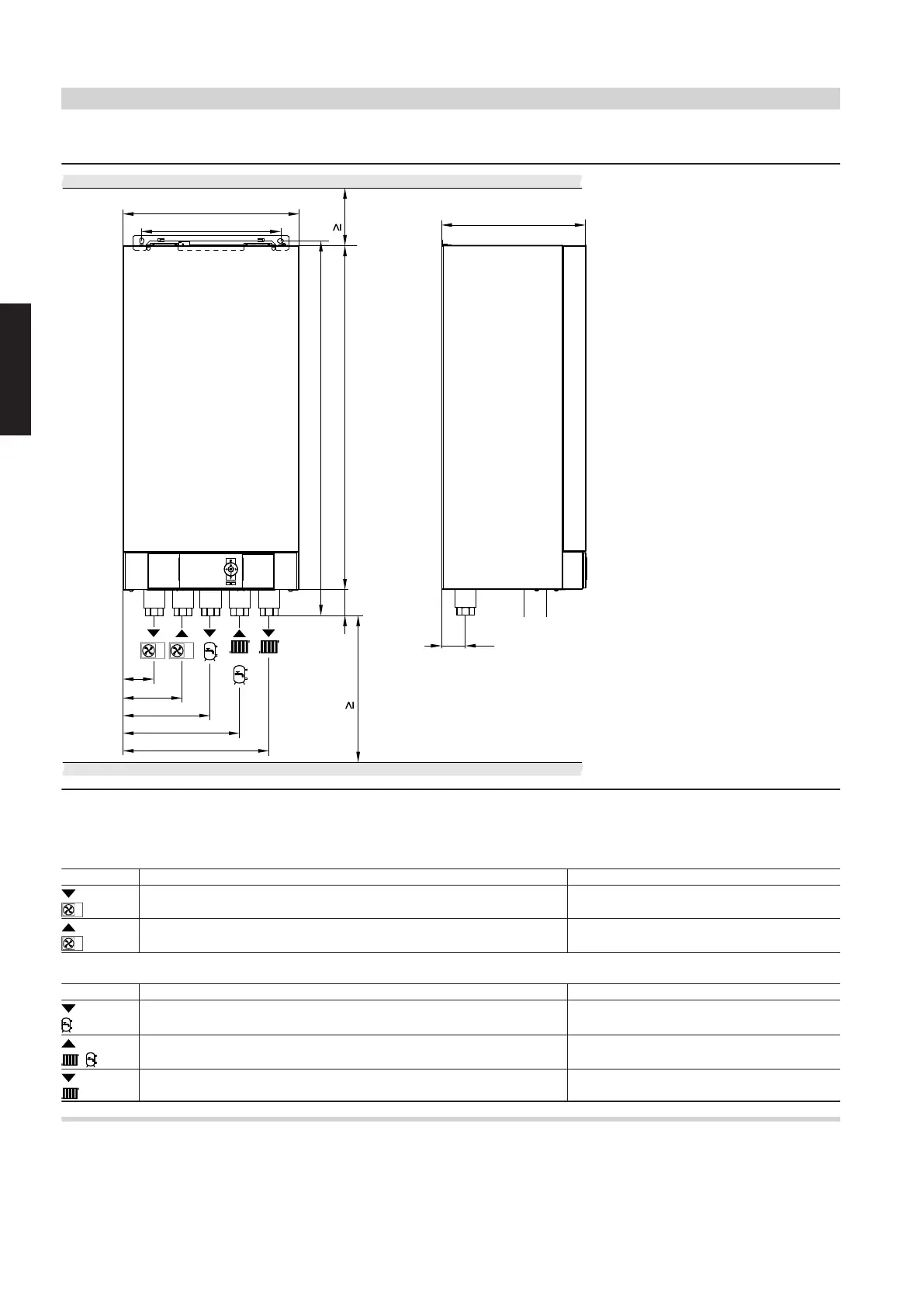

Indoor unit dimensions
880
66
370
+
1105
150
960
358
450
80
152
224
299
374
68
A
B
A
Cable entry < 42 V
B
Cable entry 400 V~/230 V~, > 42 V
Connections to the outdoor unit
Symbol Meaning Connection to the indoor unit (female thread)
Outdoor unit return G 1¼ (union nut DN 32)
Outdoor unit flow G 1¼ (union nut DN 32)
Secondary circuit connections
Symbol Meaning Connection to the indoor unit (female thread)
DHW cylinder flow (on the heating water side) G 1¼
+
Heating water return and DHW cylinder return G 1¼
Heating water flow G 1¼
Outdoor unit dimensions
See from page 26.
