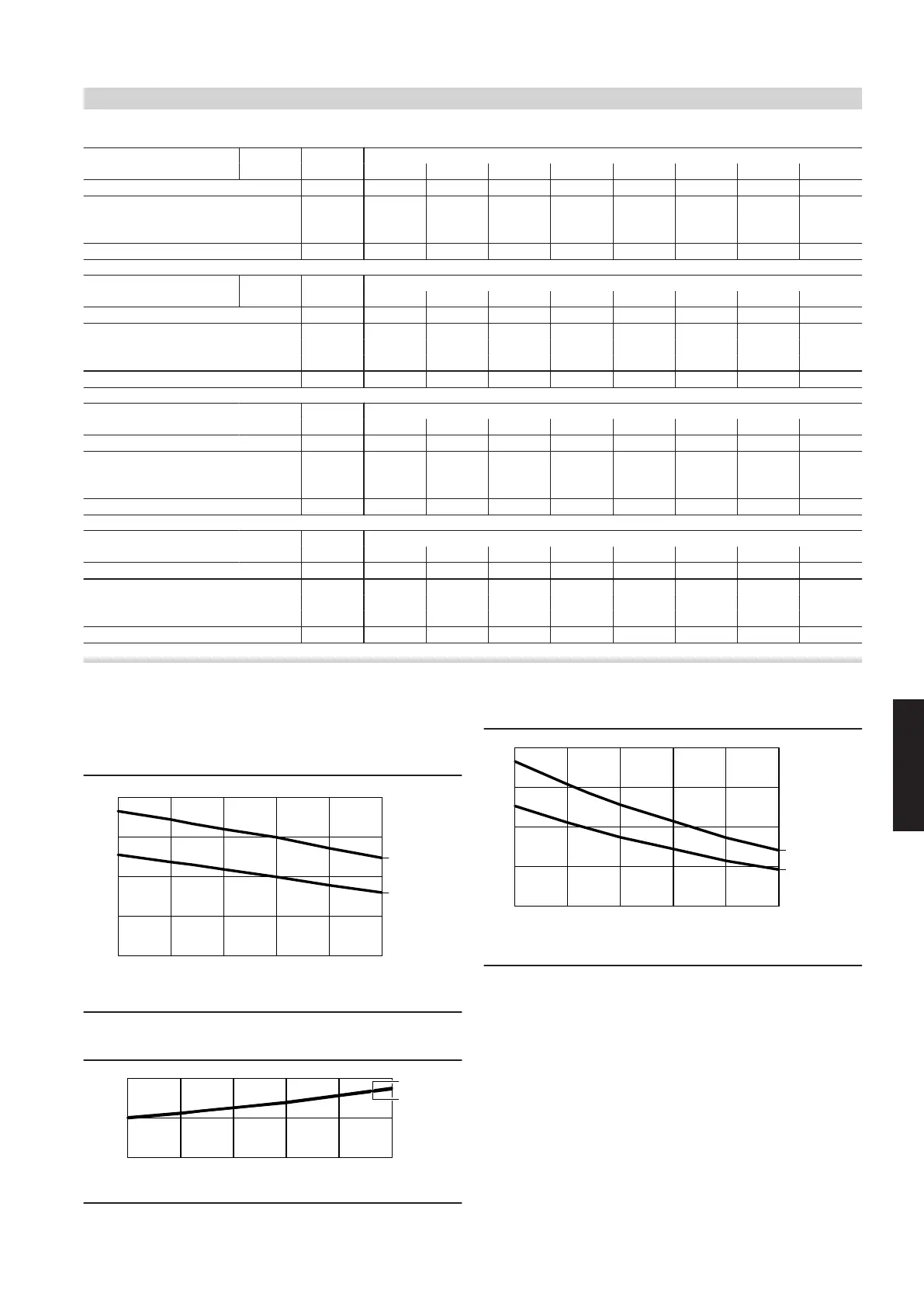

Viessmann VITOCAL Series - Cooling

Operating point W °C 35
A °C –20 –15 –7 2 7 10 20 30
Max. heating output kW 4.33 5.23 6.67 6.99 7.54 8.10 10.45 11.87
Rated heating output kW 4.33 5.23 6.67 4.04 5.62 5.85 7.18 8.80
Power consumption kW 2.08 2.22 2.31 1.02 1.19 1.14 1.10 1.05
Coefficient of performance ε (COP) 2.08 2.36 2.89 3.96 4.71 5.13 6.53 8.38
Min. heating output kW 1.78 2.18 2.18 2.82 3.47 3.77 4.73 5.95
Operating point W °C 45
A °C –20 –15 –7 2 7 10 20 30
Max. heating output kW 4.62 5.17 6.49 6.85 7.06 8.81 10.13 11.46
Rated heating output kW 4.62 5.17 6.49 3.70 5.22 5.57 6.88 8.42
Power consumption kW 2.50 2.60 2.72 1.28 1.46 1.45 1.42 1.37
Coefficient of performance ε (COP) 1.85 1.99 2.39 2.89 3.58 3.84 4.85 6.15
Min. heating output kW 1.94 2.22 2.77 2.65 3.25 3.56 4.48 5.62
Operating point W °C 55
A °C –20 –15 –7 2 7 10 20 30
Max. heating output kW 5.27 6.64 6.72 6.82 8.42 9.78 11.01
Rated heating output kW 5.27 6.64 3.52 4.97 5.30 6.56 8.06
Power consumption kW 2.89 3.13 1.58 1.81 1.80 1.79 1.74
Coefficient of performance ε (COP) 1.82 2.12 2.23 2.75 2.94 3.66 4.63
Min. heating output kW 2.18 2.82 3.20 3.71 4.03 5.04 6.26
Operating point W °C 60
A °C –20 –15 –7 2 7 10 20 30
Max. heating output kW 6.35 6.26 6.59 8.00 9.57 10.76
Rated heating output kW 6.35 3.67 4.87 5.18 6.40 7.85
Power consumption kW 3.31 1.77 2.00 2.00 2.00 1.96
Coefficient of performance ε (COP) 1.92 2.07 2.43 2.59 3.20 4.00
Min. heating output kW 2.90 3.58 4.03 4.29 5.35 6.46
Cooling
■ Vitocal 200-A, type AWO-M-E-AC 201.A08
■ Vitocal 222-A, type AWOT-M-E-AC 221.A08
Cooling capacity at flow temperatures 18 °C, 7 °C
7 °C
18 °C
0
P in kW
20
ϑ in °C
2
4
6
8
25 30 35 40 45
Power consumption for cooling at flow temperatures 18 °C, 7 °C
2
0
Pel in kW
ϑ in °C
20
18 °C
7 °C
1
25 30 35 40 45
Performance factor EER at flow temperatures of 18 °C, 7 °C
EER
ϑ in °C
20
0
8
7 °C
18 °C
2
4
6
25 30 35 40 45
ϑ Air intake temperature
P Cooling capacity
P
el
Power consumption
EER Coefficient of performance
Note
■ The EER data in the tables and diagrams was calculated with ref-
erence to EN 14511.
■ Performance characteristics apply to new appliances with clean
plate heat exchangers.
Curves
(cont.)
