Viessmann VITOCAL Series - Cooling

Cooling
■ Vitocal 200-A, type AWO-M-E-AC 201.A13
■ Vitocal 222-A, type AWOT-M-E-AC 221.A13

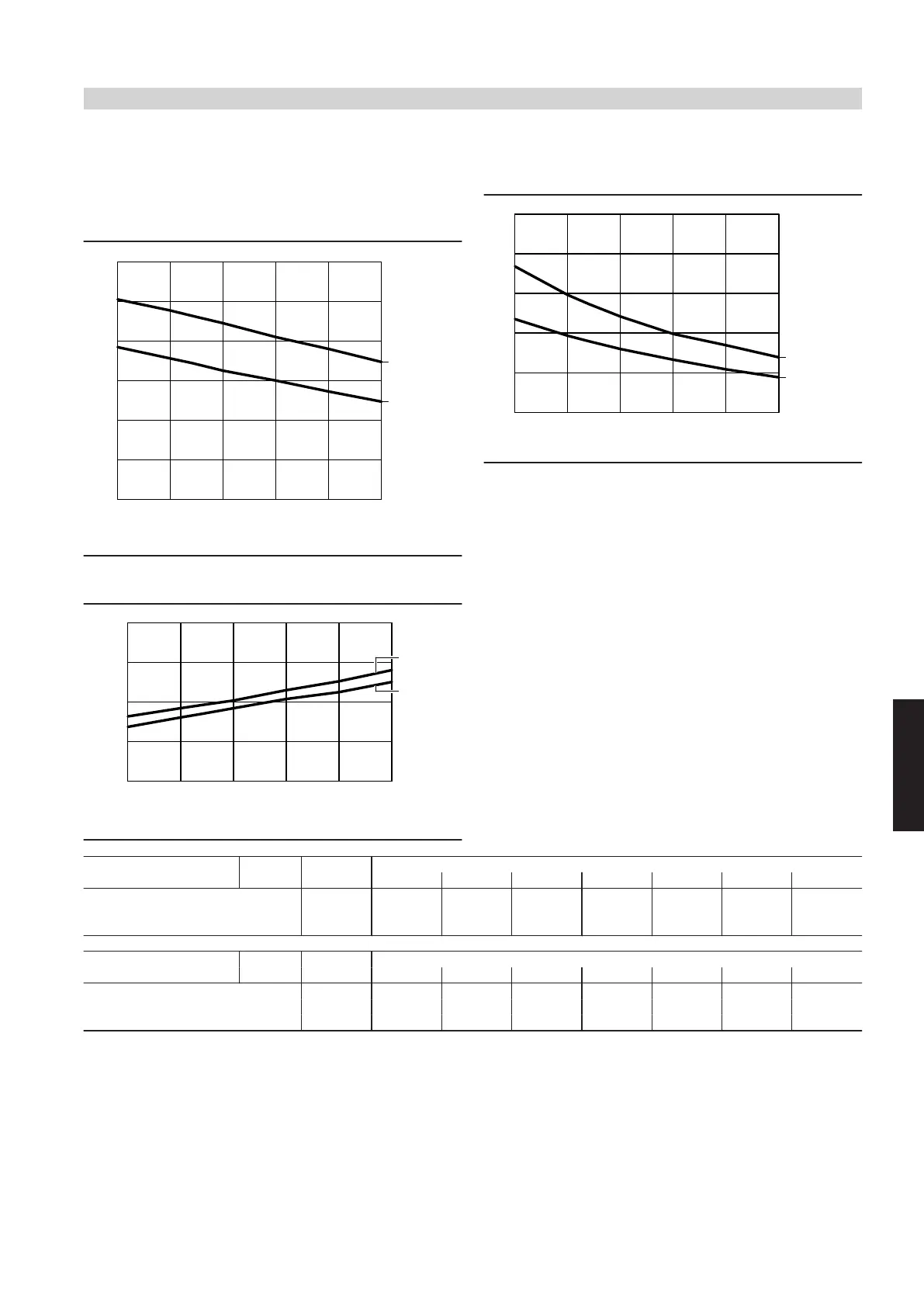

Cooling capacity at flow temperatures 18 °C, 7 °C
7 °C
18 °C
0
P in kW
20
ϑ in °C
2
4
6
8
25 30 35 40 45
10
12
Power consumption for cooling at flow temperatures 18 °C, 7 °C
7 °C
1
0
Pel in kW
ϑ in °C
20
4
18 °C
3
2
25 30 35 40 45
Performance factor EER at flow temperatures of 18 °C, 7 °C
EER
ϑ in °C
20
0
8
7 °C
18 °C
10
6
4
2
25 30 35 40 45
ϑ Air intake temperature
P Cooling capacity
P
el
Power consumption
EER Coefficient of performance
Note
■ The EER data in the tables and diagrams was calculated with ref-
erence to EN 14511.
■ Performance characteristics apply to new appliances with clean
plate heat exchangers.
Operating point W °C 18
A °C 20 25 27 30 35 40 45
Cooling capacity kW 10.10 9.54 9.28 8.90 8.20 7.6 6.94
Power consumption kW 1.37 1.61 1.70 1.84 2.08 2.25 2.50
Energy efficiency ratio EER 7.36 5.92 5.46 4.83 3.95 3.38 2.77
Operating point W °C 7
A °C 20 25 27 30 35 40 45
Cooling capacity kW 7.69 7.12 6.89 6.50 6.00 5.45 4.94
Power consumption kW 1.64 1.84 1.92 2.04 2.30 2.52 2.81
Energy efficiency ratio EER 4.70 3.86 3.58 3.19 2.65 2.16 1.76
Curves
(cont.)
