Solar Divicon, type PS10
Part no. Z017690
Pump station for the collector circuit
■ With variable speed high efficiency circulation pump for alternating
current
Delivery head: 6.0 m at a pump rate of 1000 l/h
■ Integrated SDIO/SM1A electronics module for solar control
■
For apertures of up to 40 m
2
in area for Vitosol 200-F, 300-F, 200-T
and 300-T
The aperture area details refer to "low flow systems" and are sub-
ject to the system pressure drop: See technical guide for solar col-
lectors.

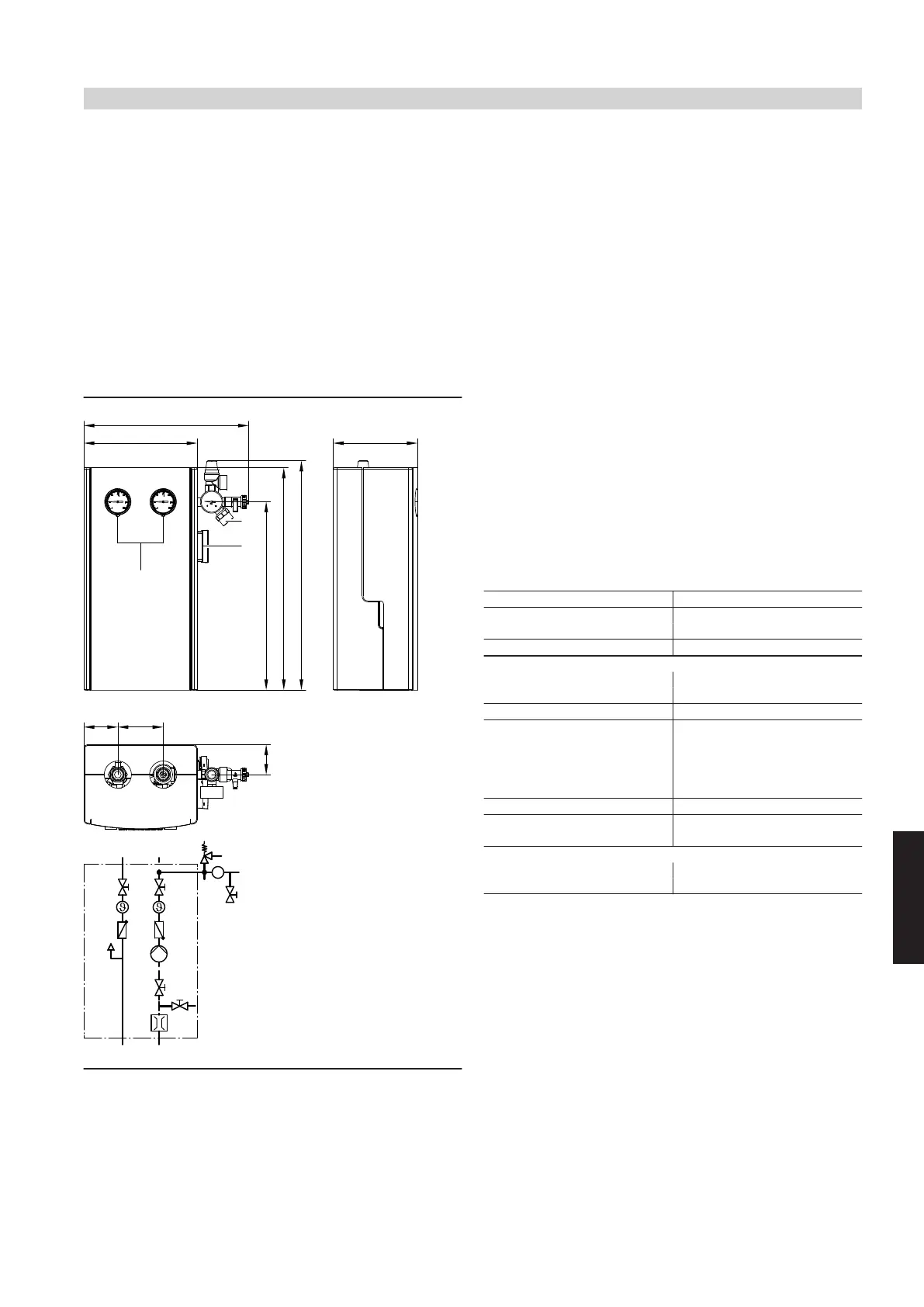

Design
A
D
C
P
N
K
F
H
F
M
C
G
E
L
C
G
VL RL
O
O
250
364
186
415
490
505
66
75 100
E
A
Solar-Divicon
C
Thermometer
D
Safety assembly (safety valve 6 bar, pressure gauge 10 bar)
E
High efficiency circulation pump
F
Shut-off valves
G
Non-return valves
H
Shut-off valve
K
Drain valve
L
Flow indicator
M
Air separator
N
Fill valve
O
Expansion vessel connection
RL Return
VL Flow
Safety valve in conjunction with Vitosol-FM switching flat-plate
collector
Up to a system height of 20 m, the Solar-Divicon may be used with
the 6 bar safety valve.
At system heights over 20 m, the safety valve may be replaced with
an 8 bar safety valve (see "Vitosol" accessories).
Compact heat pumps
The permissible operating pressure in solar circuits linked to com-
pact heat pump appliances is 6 bar.
Vitosol-FM collectors can only be used in conjunction with compact
heat pump appliances where the system height is 20 m maximum.
Specification
Type PS10
High efficiency circulation pump Wilo Para 15/7.0
– Energy efficiency index EEI ≤ 0.20
Rated voltage 230 V∼
Power consumption
– Min. 3 W
– Max. 45 W
Flow indicator 1 to 13 l/min
Safety valve (solar)
– At the factory 6 bar
0.6 MPa
– When replacing 10 bar
1 MPa
Max. operating temperature 120 °C
Max. operating pressure 10 bar
1 MPa
Connections (locking ring fitting/double O-ring)
– Solar circuit 22 mm
– Expansion vessel 22 mm
Installation accessories
(cont.)
