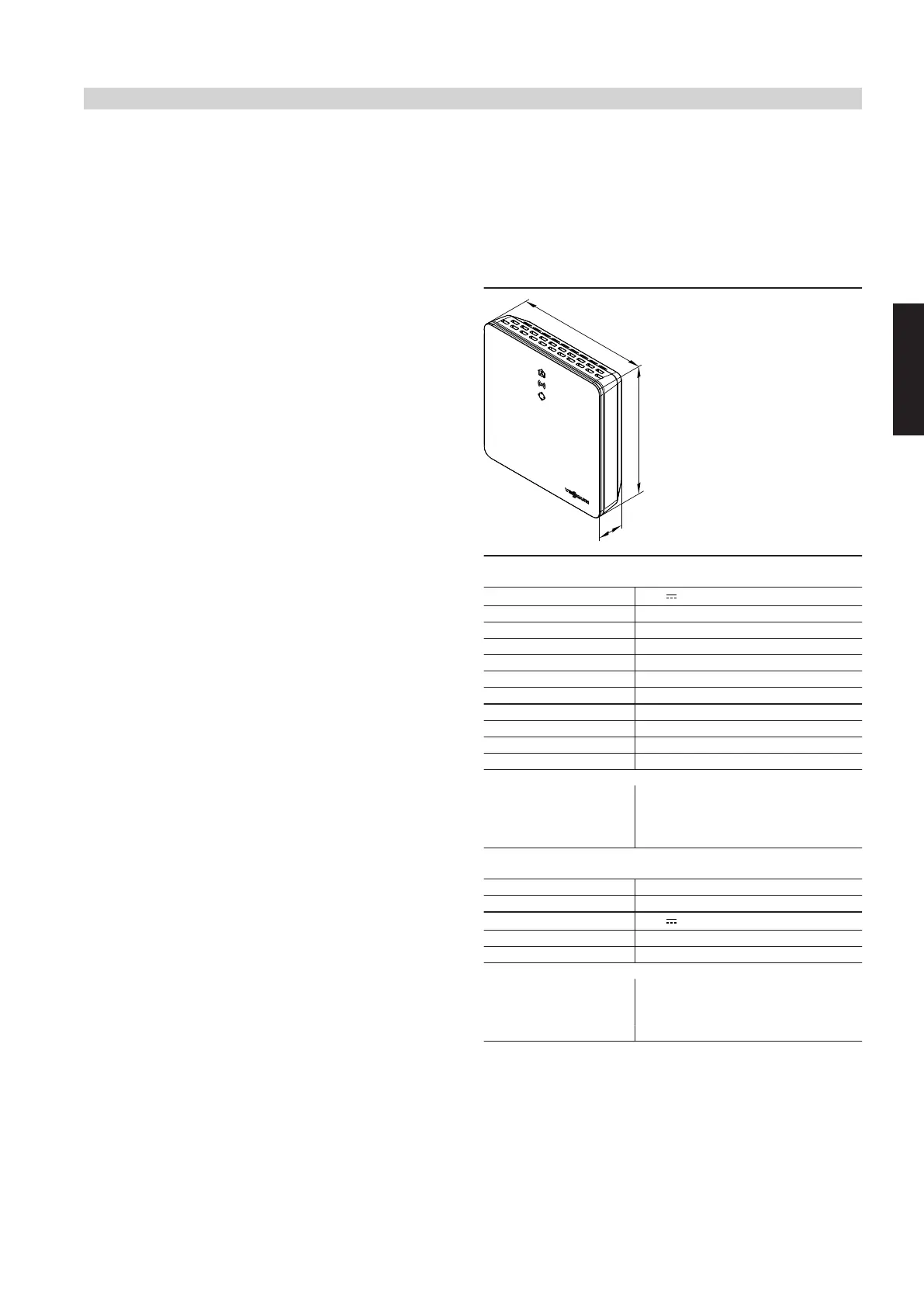

Vitoconnect, type OPTO2
Part no. ZK04789
■ Internet interface for remote control of a heating system with 1
heat generator via WiFi with DSL router
■ Compact device for wall mounting
■ For system operation with ViCare app and/or Vitoguide
Functions when operating with the ViCare app
■ Calling up the temperatures of connected heating circuits
■ Intuitive adjustment of preferred temperatures and time programs
for central heating and DHW heating
■ Easy transmission of system data, e.g. fault messages via email or
telephone communication with the heating contractor
■ Heating system fault reporting by push notification
The ViCare app supports mobile devices with the following operating
systems:
■ Apple iOS
■ Google Android
Note
■ Compatible versions: Visit the App Store or Google Play.
■ Further information: Visit www.vicare.info
Functions when operating with Vitoguide
■ Monitoring of heating system following service clearance by the
system user
■ Access to operating programs, set values and time programs
■ Retrieving system information for all connected heating systems
■ Display and forwarding of fault messages in plain text
Vitoguide supports the following end devices:
■ Mobile devices with a screen size of 8 inches or larger
Note
Further information: Visit www.vitoguide.info
On-site requirements
■ Compatible heating systems with Vitoconnect, type OPTO2
Note
Supported control units: Visit www.viessmann.de/vitoconnect
■ Before commissioning, check the system requirements for commu-
nication via local IP networks/WiFi.
■ Port 443 (HTTPS) and port 123 (NTP) must be open.
■ The MAC address is printed on the device label.
■ Internet connection with flat rate data (without time or volume
restrictions)
Installation location
■ Installation type: Wall mounting
■ Installation only in enclosed buildings
■ The installation location must be dry and free of frost.
■ Distance to heat generator min. 0.3 m and max. 2.5 m
■ Standard socket 230 V/50 Hz
or
US/CA: Socket 120 V/60 Hz
max. 1.5 m to installation location
■ Internet access with adequate WiFi signal
Note
The WiFi signal strength can be increased with commercially avail-
able WiFi repeaters.
Standard delivery
■ Web interface for wall mounting
■ Power cable with plug-in power supply unit (1.5 m long)
■ Connecting cable with Optolink/USB (WiFi module/boiler control
unit, 3 m long)
Specification
Vitoconnect specification
Rated voltage
12 V
WiFi frequency 2.4 GHz
WiFi encryption Unencrypted or WPA2
Frequency band 2400.0 to 2483.5 MHz
Max. transmitting power 0.1 W (e.i.r.p.)
Internet protocol IPv4
IP assignment DHCP
Rated current 0.5 A
Power consumption 5.5 W
Protection class III
IP rating IP 20D to EN 60529
Permissible ambient temperature
– Operation 5 to +40 °C
Installation in living spaces or boiler
rooms (standard ambient conditions)
– Storage and transport –20 to +60 °C
Plug-in power supply unit specification
Rated voltage 100 to 240 V~
Rated frequency 50/60 Hz
Output voltage
12 V
Output current 1 A
Protection class II
Permissible ambient temperature
– Operation 5 to +40 °C
Installation in living spaces or boiler
rooms (standard ambient conditions)
– Storage and transport –20 to +60 °C
Control unit accessories
