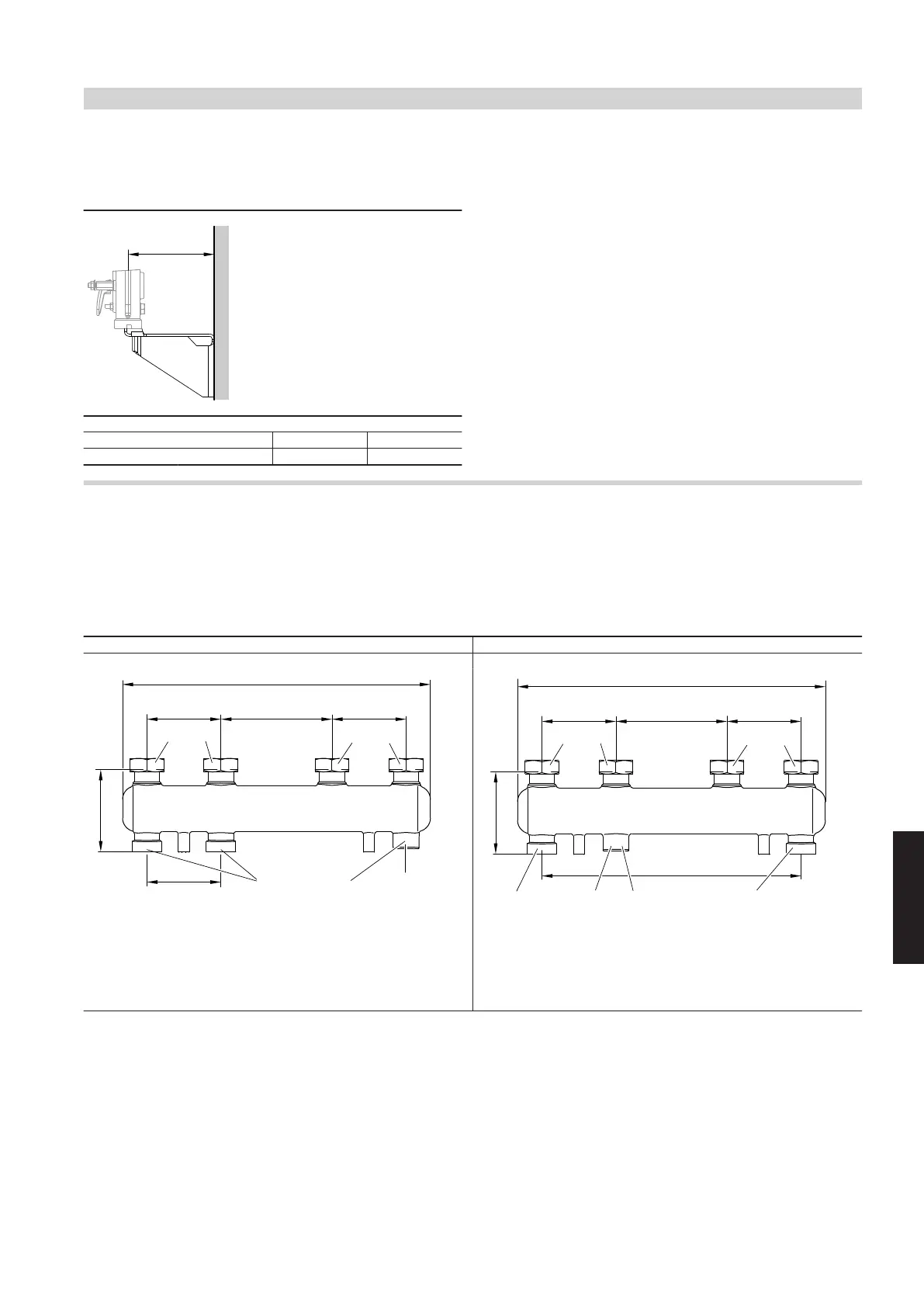

Viessmann VITOCAL Series - Wall Mounting Bracket for Individual Divicon; Manifold

Wall mounting bracket for individual Divicon
Part no. 7465894
With screws and rawl plugs
a
Divicon With mixer Without mixer
a mm 151 142
Manifold
■ With thermal insulation
■ Wall mounted with wall mounting bracket to be ordered separately
■ The connection between boiler and manifold must be made on
site.
For 2 Divicons
Part no. 7460638 Part no. 7466337
For Divicon R ¾ and R 1 For Divicon R 1¼
HV HR HV HR
120
495
HV HR
120
135
120
A
180
G 1½ Rp ¾
G 1½ G 1½
A
Connection option for expansion vessel
HV Heating water flow
HR Heating water return
HV HR HV HR
120
495
HV HR
420
183
120
A
180
G 2
Rp ¾
G 2
G 1½ G 1½
A
Connection option for expansion vessel
HV Heating water flow
HR Heating water return
Installation accessories
(cont.)
