Viessmann VITOCAL Series - 5.10 Residual heads with the integral circulation pump

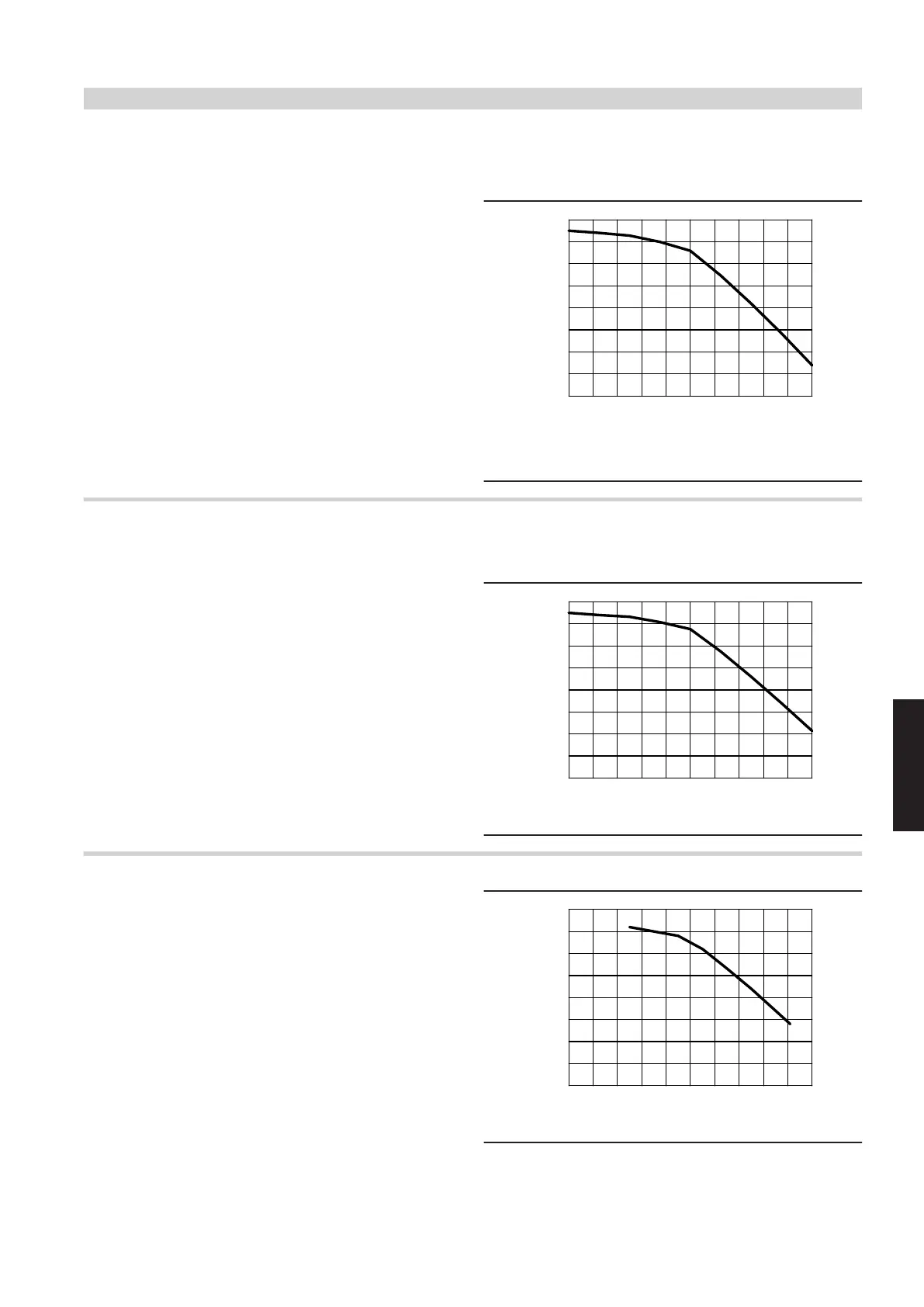

5.10 Residual heads with the integral circulation pump
Indoor unit Vitocal 200-A and Vitocal 222-A, types 201.A04 to 201.A08 and 221.A04 to 221.A08, 230 V~
Vitocal 200-A, type
■ AWO-M 201.A04
■ AWO-M-E 201.A04
■ AWO-M-E-AC 201.A04
■ AWO-M 201.A06
■ AWO-M-E 201.A06
■ AWO-M-E-AC 201.A06
■ AWO-M 201.A08
■ AWO-M-E 201.A08
■ AWO-M-E-AC 201.A08
Vitocal 222-A, type
■ AWOT-M-E 221.A04
■ AWOT-M-E-AC 221.A04
■ AWOT-M-E 221.A06
■ AWOT-M-E-AC 221.A06
■ AWOT-M-E 221.A08
■ AWOT-M-E-AC 221.A08
2.01.81.61.41.21.00.80.60.40.20
80
70
60
50
40
30
20
10
0
Flow rate in m³/h
Residual head mbar kPa
800
700
600
500
400
300
200
100
0
Indoor unit Vitocal 200-A, types 201.A10 to 201.A16, 230 V~ and 400 V~
Vitocal 200-A, type
■ AWO 201.A10
■ AWO-E 201.A10
■ AWO-E-AC 201.A10
■ AWO-M 201.A10
■ AWO-M-E 201.A10
■ AWO-M-E-AC 201.A10
■ AWO 201.A13
■ AWO-E 201.A13
■ AWO-E-AC 201.A13
■ AWO-M 201.A13
■ AWO-M-E 201.A13
■ AWO-M-E-AC 201.A13
■ AWO 201.A16
■ AWO-E 201.A16
■ AWO-E-AC 201.A16
■ AWO-M 201.A16
■ AWO-M-E 201.A16
■ AWO-M-E-AC 201.A16
2.01.81.61.41.21.00.80.60.40.20
80
70
60
50
40
30
20
10
0
Flow rate in m³/h
Residual head mbar kPa
800
700
600
500
400
300
200
100
0
Indoor unit Vitocal 222-A, types 221.A10 to 221.A16, 230 V~ and 400 V~
Vitocal 222-A, type
■ AWOT-E 221.A10
■ AWOT-E-AC 221.A10
■ AWOT-M-E 221.A10
■ AWOT-M-E-AC 221.A10
■ AWOT-E 221.A13
■ AWOT-E-AC 221.A13
■ AWOT-M-E 221.A13
■ AWOT-M-E-AC 221.A13
■ AWOT-E 221.A16
■ AWOT-E-AC 221.A16
■ AWOT-M-E 221.A16
■ AWOT-M-E-AC 221.A16
2.01.81.61.41.21.00.80.60.40.20
80
70
60
50
40
30
20
10
0
Flow rate in m³/h
Residual head mbar kPa
800
700
600
500
400
300
200
100
0
Curves
(cont.)
VITOCAL
VIESMANN
55
5831388
5
