Viessmann VITOCAL Series - Dimensions

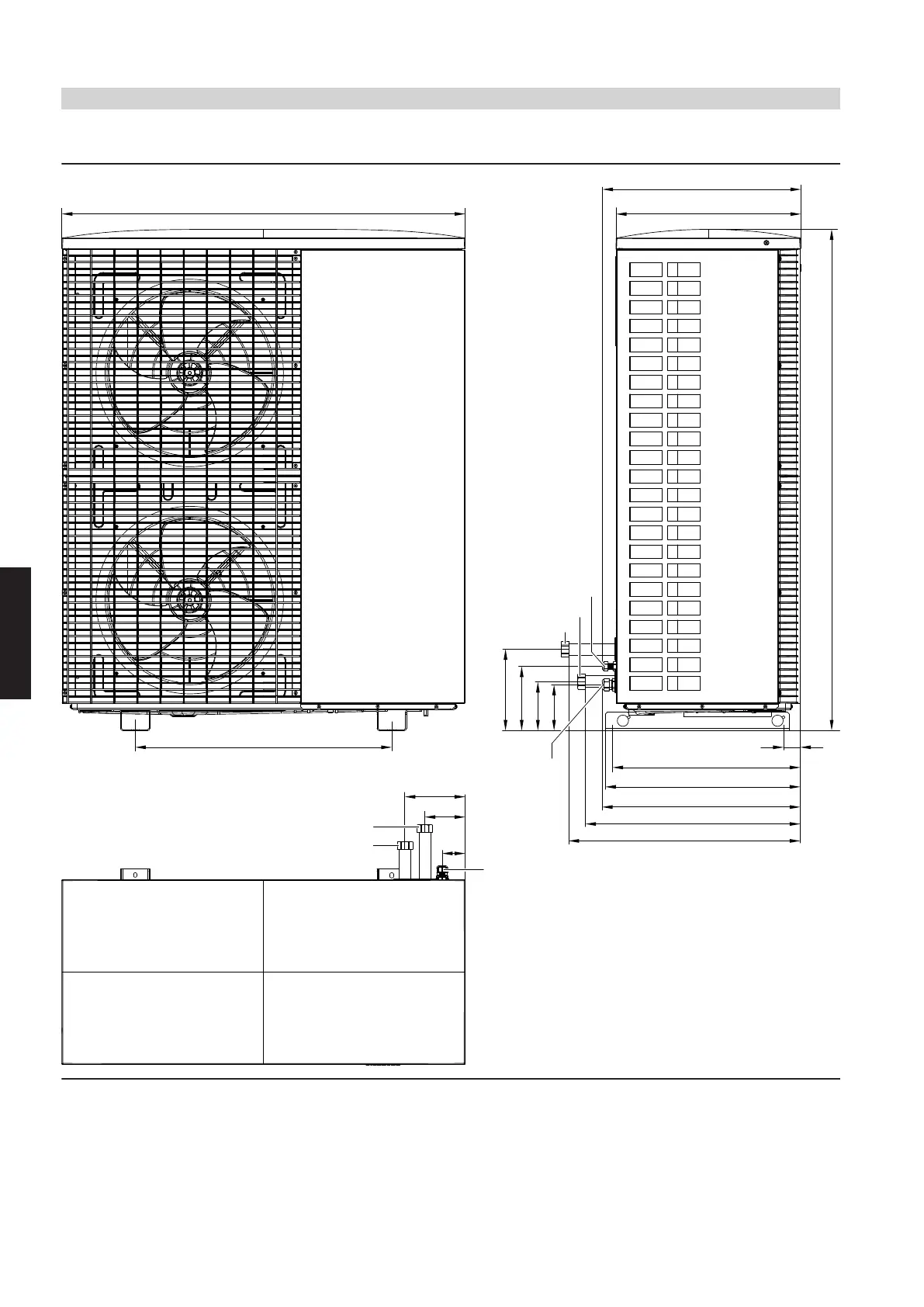

Dimensions
1109
705
62
110
165
508
544
536
545
1377
126
133
176
223
590
637
48
518
A
D
C
B
A
B
C D
/
A
Outdoor unit flow (heating water outlet) G 1¼ (union nut sup-
plied, female thread)
B
Outdoor unit return (heating water outlet) G 1¼ (union nut sup-
plied, female thread)
C
Power cable inlet
D
Modbus cable inlet for indoor/outdoor unit
Outdoor units
(cont.)
28
VIESMANN
VITOCAL
4
5831388
