Viessmann VITOCAL Series - 6.12 Solar accessories

6.12 Solar accessories
Solar heat exchanger set (Divicon)
Part no. ZK03798
For connecting solar thermal systems to heat pump compact appli-
ances
■ Connections matched to Solar-Divicon for direct mounting below
the Solar-Divicon
■ Suitable for systems to DIN 4753. Up to a total water hardness of
20 °dH (3.6 mol/m
3
)
■ Max. collector surface area that can be connected:
–
5 m
2
flat-plate collectors
–
3 m
2
tube collectors
Components:
■ Circulation pump
■ Plate heat exchanger
■ Connection pipes G ¾ (male thread)
■ Sensor well for cylinder temperature sensor of the solar control
unit
■ Thermal insulation
Note
The hydraulic connections for the solar circuit can optionally be
routed either upwards or downwards from the appliance.
Specification
Permissible temperatures
Solar side 140 °C
Heating water side 110 °C
DHW side
– For boiler operation 95 °C
– For solar operation 60 °C
Permissible operating pressure 10 bar (1.0 MPa)
Solar side, heating and DHW side
Test pressure 13 bar (1.3 MPa)
Solar side, heating and DHW side
Circulation pump
Power supply 230 V/50 Hz
IP rating IP 42

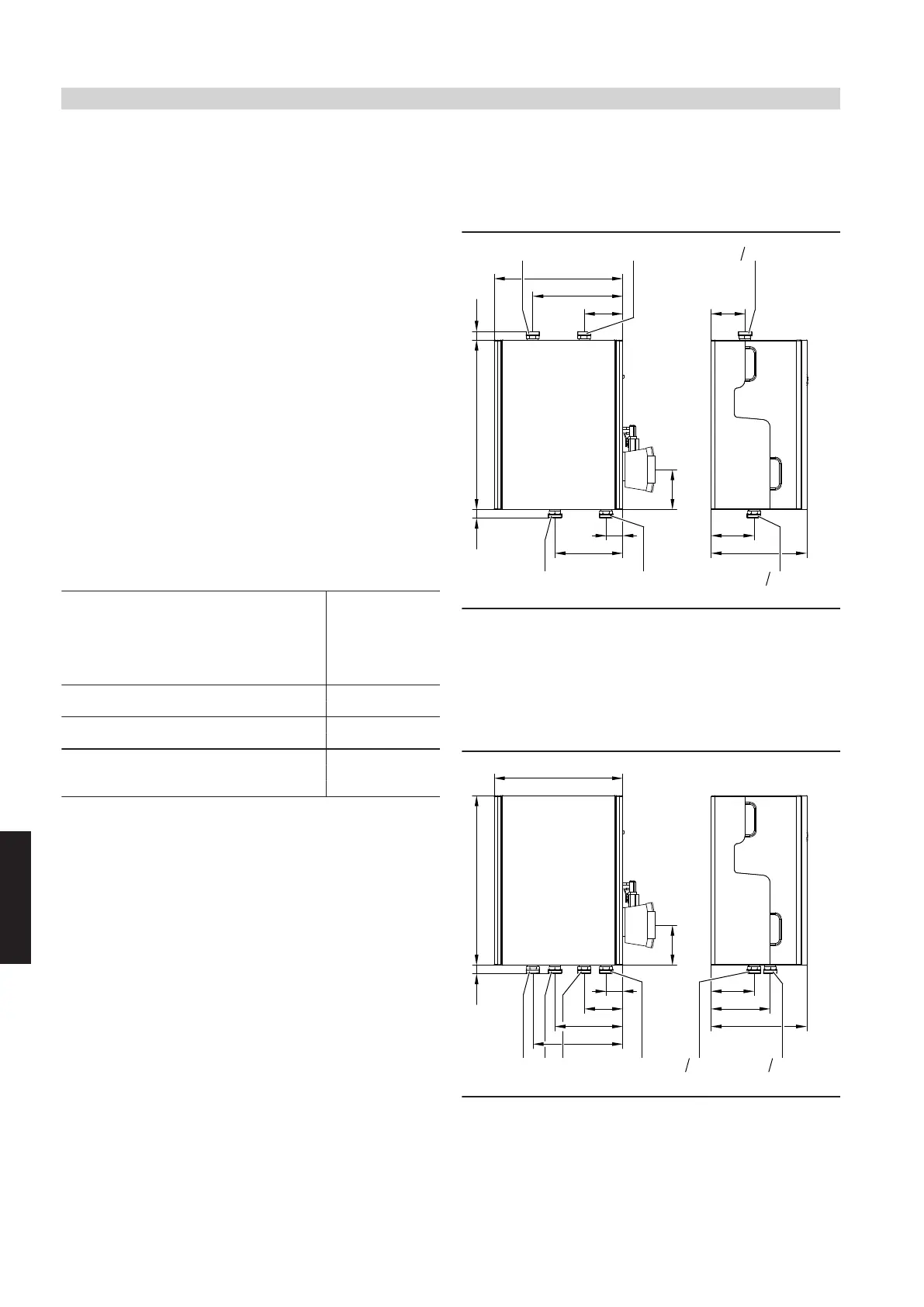

Hydraulic connections upwards and downwards
17 17330
84
32
132
75
175
250
66
83
186
D
A B
C
A B
C D
A
Solar circuit return
B
Solar circuit flow
C
DHW cylinder return
D
DHW cylinder flow
Hydraulic connections downwards
17 330
84
32
75
83
115
C C D
250
132
175
DA B
186
A B
A
Solar circuit return
B
Solar circuit flow
C
DHW cylinder return
D
DHW cylinder flow
Installation accessories
