105
>E,ĂƌĚǁĂƌĞ^ƉĞĐŝĮĐĂƟŽŶ
sŝĞǁ^ŽŶŝĐ>&ĐŽŵŵƵŶŝĐĂƟŽŶƉŽƌƚŽŶƚŚĞƌĞĂƌƐŝĚĞ

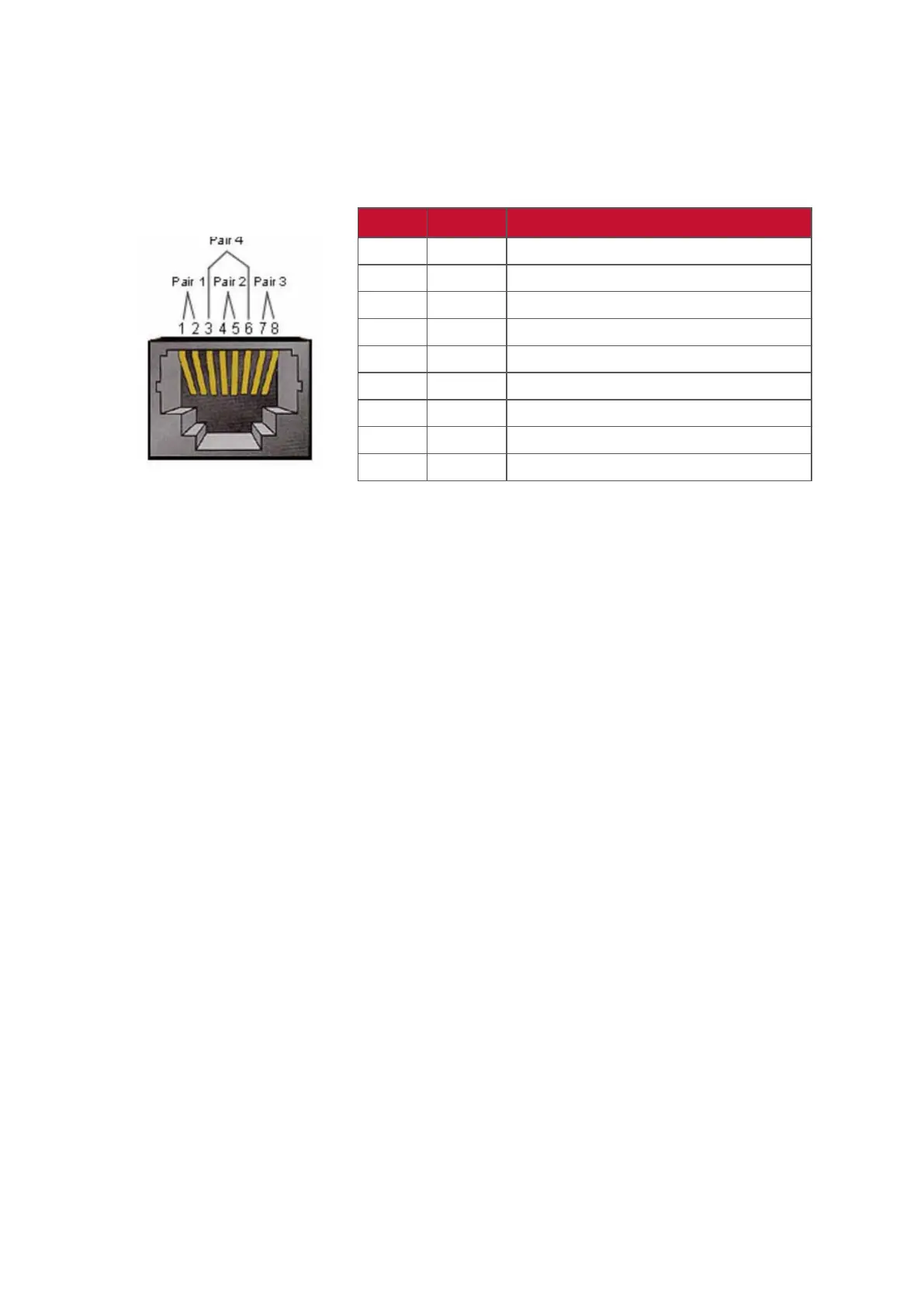

1. Connector type: 8P8C RJ45
2. Pin Assignment:
Pin # Signal Remark
1 TX+ Output from Display
2 TX- Output from Display
3 RX+ Input to Display
4 BI_D3+ For 1G case
5 BI_D3- For 1G case
6 RX- Input to Display
7 BI_D4+ For 1G case
8 BI_D4- For 1G case
frame GND
Z^ϮϯϮŽŵŵƵŶŝĐĂƟŽŶ^ĞƫŶŐ
- Baud Rate Select: ϵϲϬϬďƉƐ;ĮdžĞĚͿ
- Data bits: ϴďŝƚƐ;ĮdžĞĚͿ
- Parity: EŽŶĞ;ĮdžĞĚͿ
- Stop Bits: ϭ;ĮdžĞĚͿ
>EŽŵŵƵŶŝĐĂƟŽŶ^ĞƫŶŐ
- Type: Ethernet
- Protocol: TCP/IP
- Port: ϱϬϬϬ;ĮdžĞĚͿ
- Cross subnet: No
Ͳ>ŽŐŽŶƌĞĚĞŶƟĂůƐ No
Command Message Reference
WƐĞŶĚƐƚŽ>&ĐŽŵŵĂŶĚƉĂĐŬĞƚĨŽůůŽǁĞĚďLJZǀĞƌLJƟŵĞWƐĞŶĚƐĐŽŶƚƌŽů
command to Display, the Display shall respond as follows:
1. If the message is received correctly it will send “+” (02Bh) followed by “CR”
(00Dh)
2. If the message is received incorrectly it will send “-” (02Dh) followed by “CR”
(00Dh)
