Vigilant QE20 - ATA Programming

Document: LT0732 QE20 Fibre Networking User Manual
Issue 1.0 24 May 2023 Page 3-19

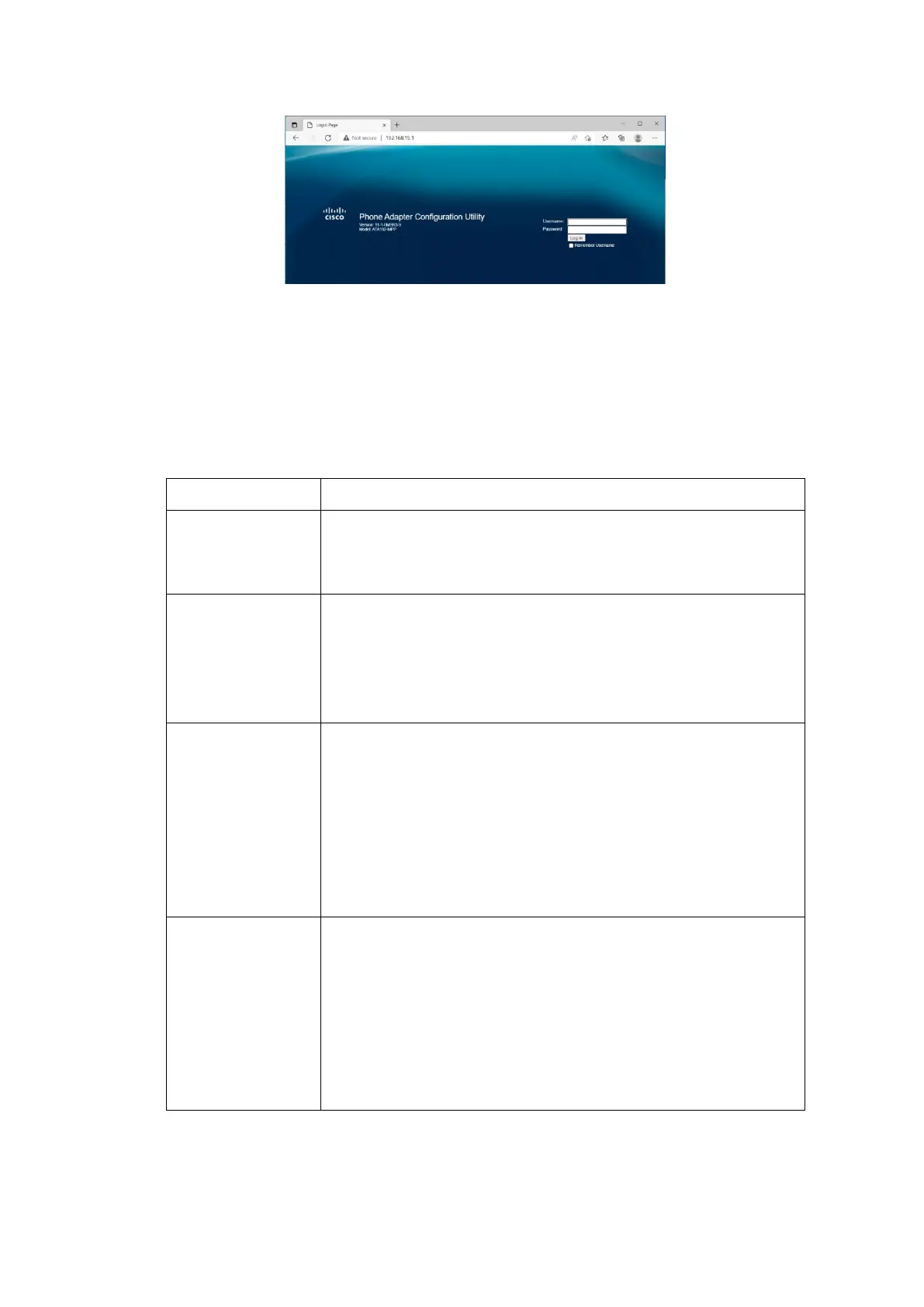

Screen Sample – ATA Log in page
• Log in with the configured username and password (or the default if no
specific username and password is assigned).
• Program all the other settings as per Section 3.8.4.
3.1.15 ATA Programming
The following fields are required for QE20 VoIP after the ATA factory
default is applied.
Page
Entry/Option
Administration User List=>admin: Assign a suitable password.
User List=>cisco: Assign a suitable password.
Click Submit.
Voice | Regional
Call Progress Tones=>Holding Tone : (Blank)
Control Timer Values=>Hook Flash Timer Min : 0.4
Miscellaneous=>FXS Port Input Gain : 1
Miscellaneous=>FXS Port Output Gain : 6
Click Submit.
Voice | Line 1
Call Feature Settings=>Enable IP Dialing : Yes
Proxy and Registration=>Register : No
Proxy and Registration=>Make Call Without Reg : Yes
Proxy and Registration=>Ans Call Without Reg : Yes
Subscriber Information=>User ID: 1
Dial Plan=>Dial Plan : as per section 3.5
FXS Port Polarity Configuration=>Idle Polarity : Reverse
Click Submit.
Voice | Line 2
Call Feature Settings=>Enable IP Dialing : Yes
Proxy and Registration=>Register : No
Proxy and Registration=>Make Call Without Reg : Yes
Proxy and Registration=>Ans Call Without Reg : Yes
Subscriber Information=>User ID: 2
Dial Plan=>Dial Plan : as per section 3.5
FXS Port Polarity Configuration=>Idle Polarity : Reverse
Click Submit.
