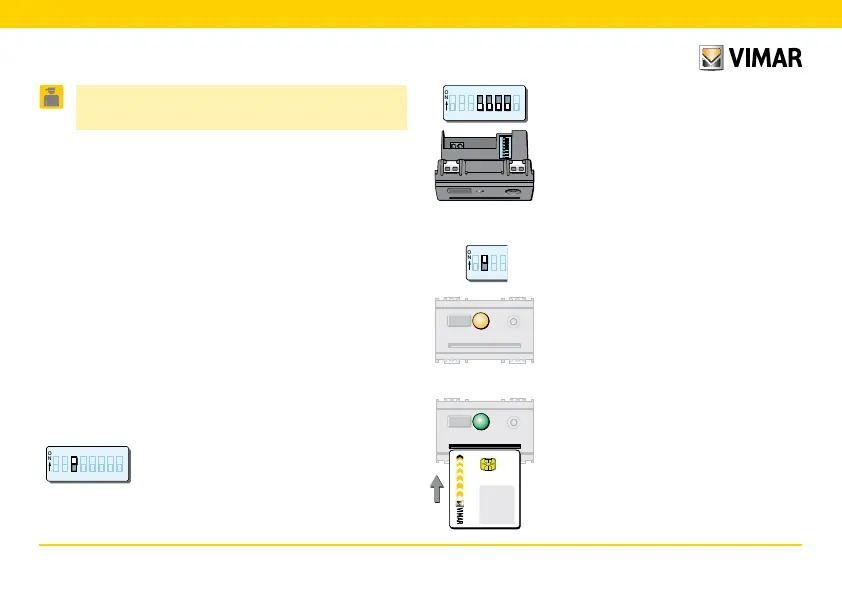

6.1 Initialising the reader and pro-
gramming MASTER smart cards
This procedure generates a MASTER code, associates it
with the address selected by the dip-switches on the read-
er/programmer being initialised, and copies it to the desired
MASTER smart cards.
Important!
During this phase, always program several copies of
the MASTER smart card (to be kept in a safe place),
because it will not be possible to make duplicates at a
later time.
6.1.1
Power up the reader.
6.1.2
Place dip-switch 3 in the ON position.
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1
O
N
2 3 4 5 6 7
6.1.5
When the LED turns green (after about
15 seconds), insert the smart card to be
programmed as the MASTER.
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1
O
N
2 3 4 5 6 7
1 2 3 4
6
7 8
ON
6.1.4
Place dip-switch 2 in the ON position.
The LED lights up yellow.
6.1.3
Select the desired address (see “Address
selection” table on page 8).
In the example, address A was used.
