Vimar Plana Instruction Handbook

ENGLISH - 43
6.4.9

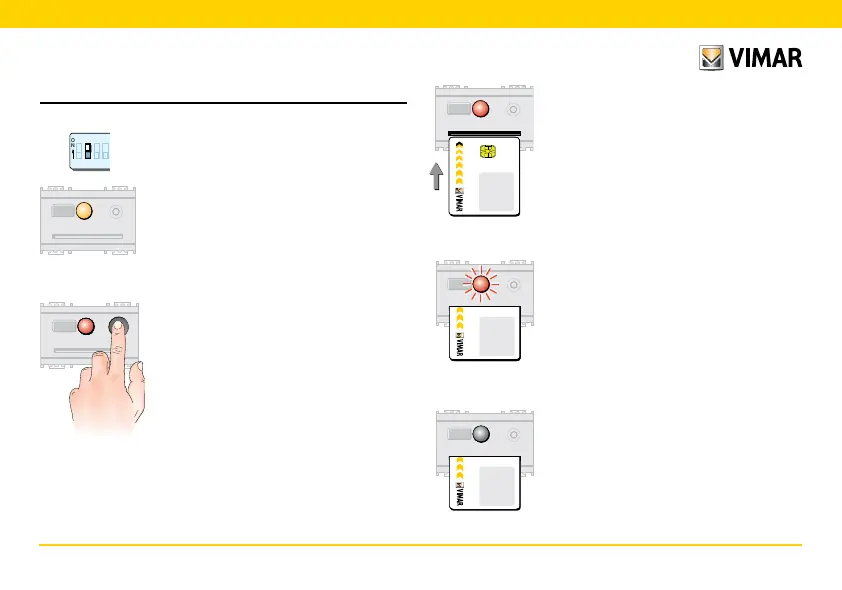

Insert into the reader a MASTER smart
card programmed by that same reader,
to enable continuation of the procedure.
MASTER
card
MASTER
card
If the MASTER smart card is not recog-
nised, the LED blinks red. Remove the
incorrect smart card and insert the cor-
rect one.
6.4.10
If the MASTER smart card is recognised,
the LED switches off.
MASTER
card
MASTER
card
1 2 3 4
6
7 8
ON
6.4.8
Press the front button within 15 sec-
onds. The LED turns red.
Warning!
If the button is not pressed within 15 sec-
onds, the LED turns red and the system
switches to the “Reprogram reader code
and MASTER smart cards” procedure.
To exit the procedure, place dip-switch 2
in the OFF position.
Repeat the procedure from step 6.4.7.
6.4.7
Place dip-switch 2 on the reader being
synchronised in the ON position.
The LED lights up yellow.
Synchronising an already-initialised reader
