Vimar Plana Instruction Handbook

ENGLISH - 23
4.4.2

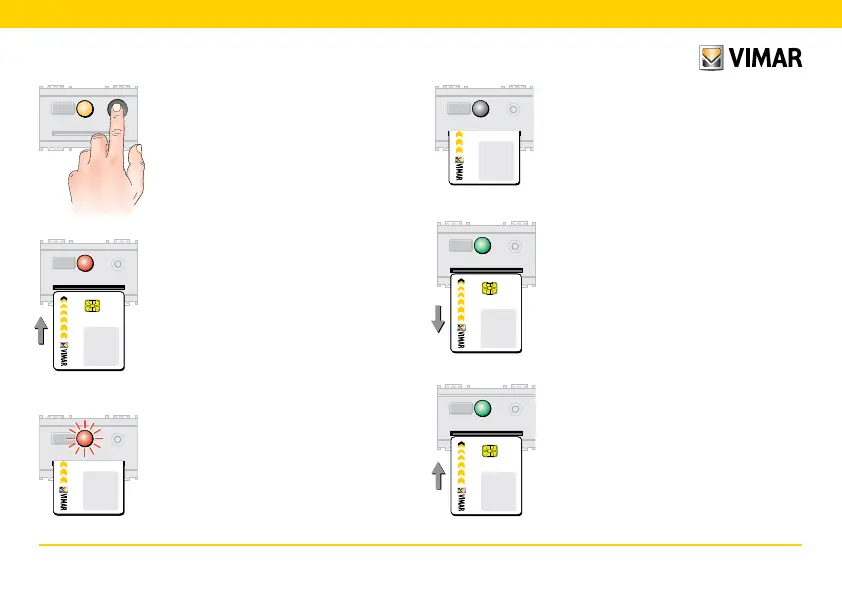

Press the front button again. The LED
turns yellow.
4.4.3
Wait for the LED to turn red (after about
15 seconds), then insert the MASTER
smart card to enable the procedure.
If the MASTER smart card is not inserted
within 10 seconds, the LED turns off and
the device exits the procedure.
MASTER
card
MASTER
card
If the LED blinks red it means the
MASTER smart card was not recognised.
Remove the incorrect smart card and
insert the correct one.
4.4.5
Remove the MASTER smart card.
The LED turns green, waiting for a SLAVE
smart card to program.
4.4.6
Insert the SLAVE smart card to be pro-
grammed or reprogrammed.
If the SLAVE smart card is not inserted
within 15 seconds, the LED turns off and
the device exits the procedure.
MASTER
card
MASTER
card
MASTER
card
MASTER
card
SLAVE
card
SLAVE
card
4.4.4
If the MASTER smart card is recognised,
the LED switches off.
