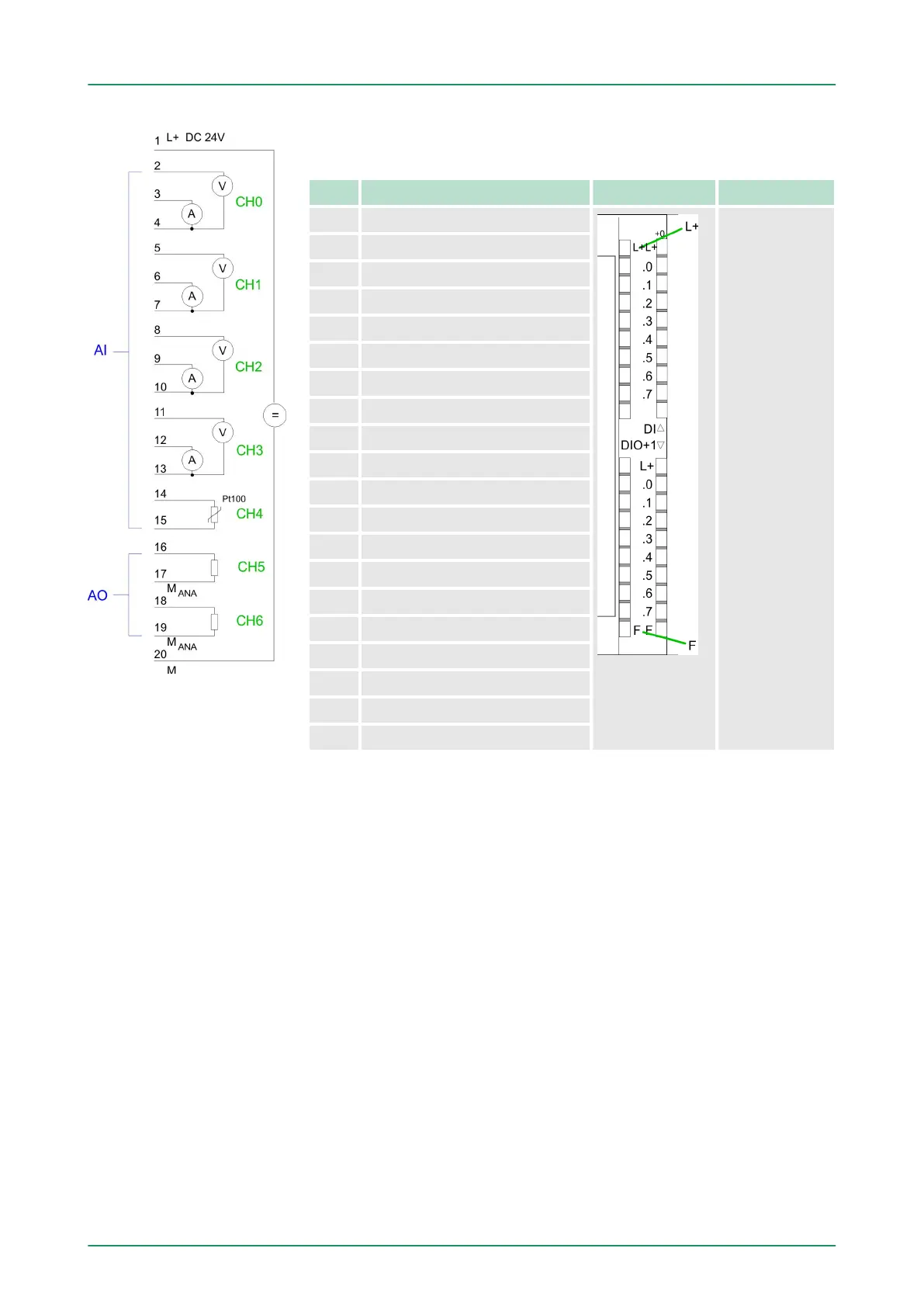

CPU 314-6CF03: Analog part pin assignment and status indi-
cator
Pin Assignment LEDs Description
1 Power supply DC 24V AIO 1L+
LED (green)
Supply voltage
available
F
LED (red)
Sum error
2 Voltage measurement channel 0
3 Current measurement channel 0
4 Ground channel 0
5 Voltage measurement channel 1
6 Current measurement channel 1
7 Ground channel 1
8 Voltage measurement channel 2
9 Current measurement channel 2
10 Ground channel 2
11 Voltage measurement channel 3
12 Current measurement channel 3
13 Ground channel 3
14 Pt 100 channel 4
15 Pt 100 channel 4
16 Output + channel 5
17 Ground output channel 5
18 Output + channel 6
19 Ground output channel 6
20 Ground power supply AIO
VIPA System 300S Deployment I/O periphery
In-/Output range CPU 314-6CF03
