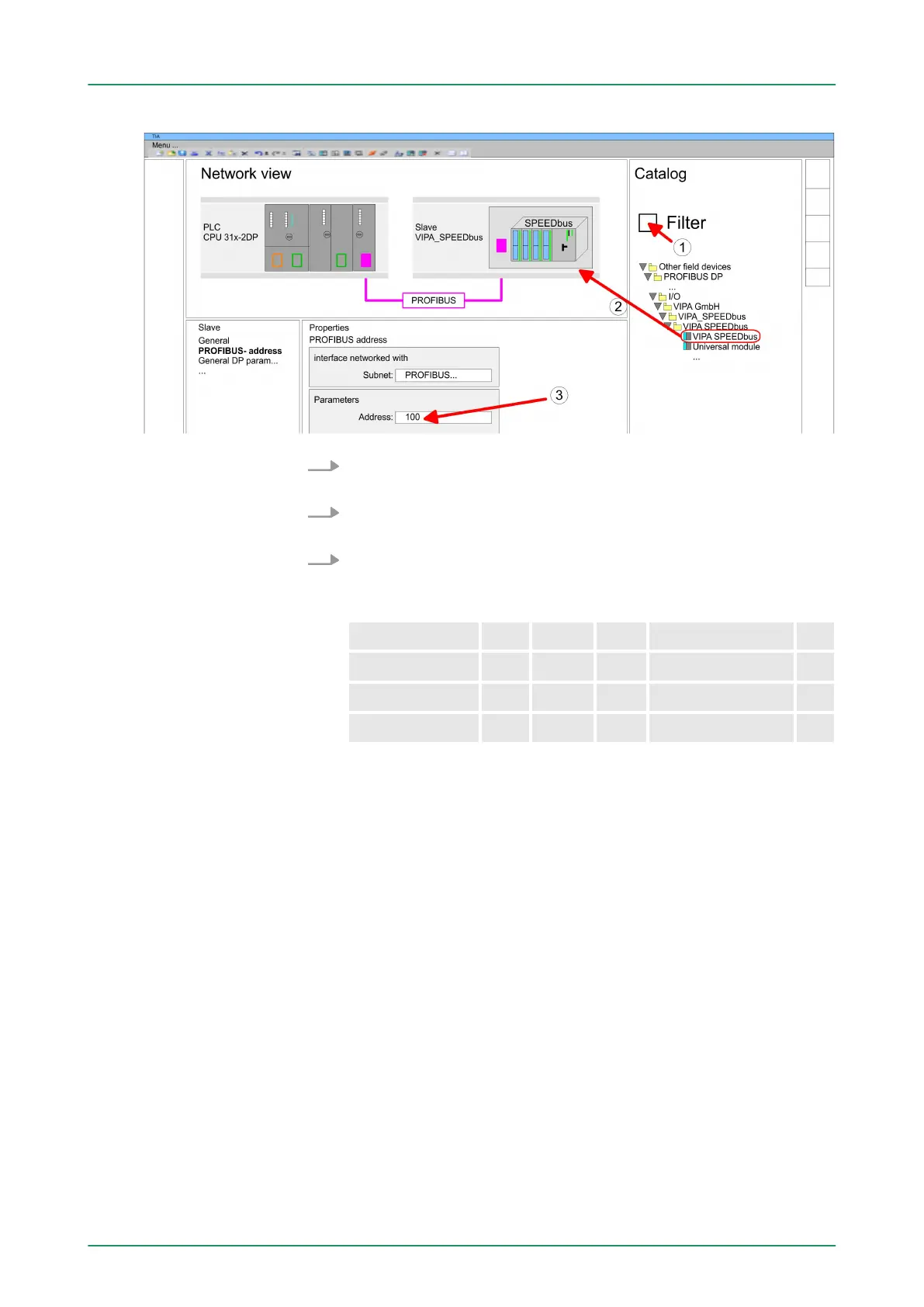

4. Click at the slave system and open the ‘Device overview’
in the
Project area.
5. Configure at slot 1 the VIP
A CPU 314-6CF03 of the hardware
catalog from VIPA_SPEEDbus.
6. By double clicking the placed CPU 314-6CF03 the properties
dialog of the CPU is showed.
Device overview
Module ... Slot ... Type ...
Slave ... 0 VIPA SPEEDbus
314-6CF03 1 314-6CF03 ...
2
ð
As soon as the project is transferred together with the PLC
user program to the CPU, the parameters will be taken after
start-up.
10.6
TIA Portal - VIPA-Include library
n The VIP
A specific blocks can be found in the "Service" area of
www.vipa.com as library download file at Downloads > VIPA LIB.
n The library is available as packed zip file for the corresponding
TIA Portal version.
n As soon as you want to use VIPA specific blocks you have to
import them into your project.
Execute the following steps:
– Load an unzip the file ...TIA_Vxx.zip (note TIA Portal version)
– Open library and transfer blocks into the project
Start your un-zip application with a double click on the file
TIA_Vxx.zip and copy all the files and folders in a work directory for
the Siemens TIA Portal.
Overview
Unzip ...TIA_Vxx.zip
VIPA System 300S Configuration with TIA Portal
TIA Portal - VIPA-Include library
