4 Hardware description
4.1 Properties
n SPEED7 technology and SPEED-Bus integrated
n 512kbyte work memory integrated (256kbyte code, 256kbyte data)
n W
ork memory expandable to max. 2Mbyte (1Mbyte code, 1Mbyte
data)
n 2Mbyte load memory
n PROFIBUS DP master integrated (DP-V0, DP-V1)
n RS485 interface configurable for PROFIBUS DP master respec-
tively PtP communication
n Ethernet PG/OP interface integrated
n MPI interface
n MCC slot for external memory cards (lockable)
n Status LEDs for operating state and diagnostics
n Real-time clock battery buffered
n Fast digital I/Os: DI 8xDC24V / DIO 8xDC 24V, 0.5A
n Analog I/Os: AI 4x12Bit / AO 2x12Bit / AI 1xPt100
n 4 counter (100kHz)
n I/O address range digital/analog 8191byte
n 512 timer
n 512 counter
n 8192 flag byte
Type Order number Description
CPU 314ST 314-6CF03 SPEED-Bus, MPI interface, card slot, real time
clock, Ethernet interface for PG/OP
, PROFIBUS DP
master, DI 8xDC24V / DIO 8xDC24V, 0.5A, AI
4x12Bit / AO 2x12Bit / AI 1xPt100, 4 Counter

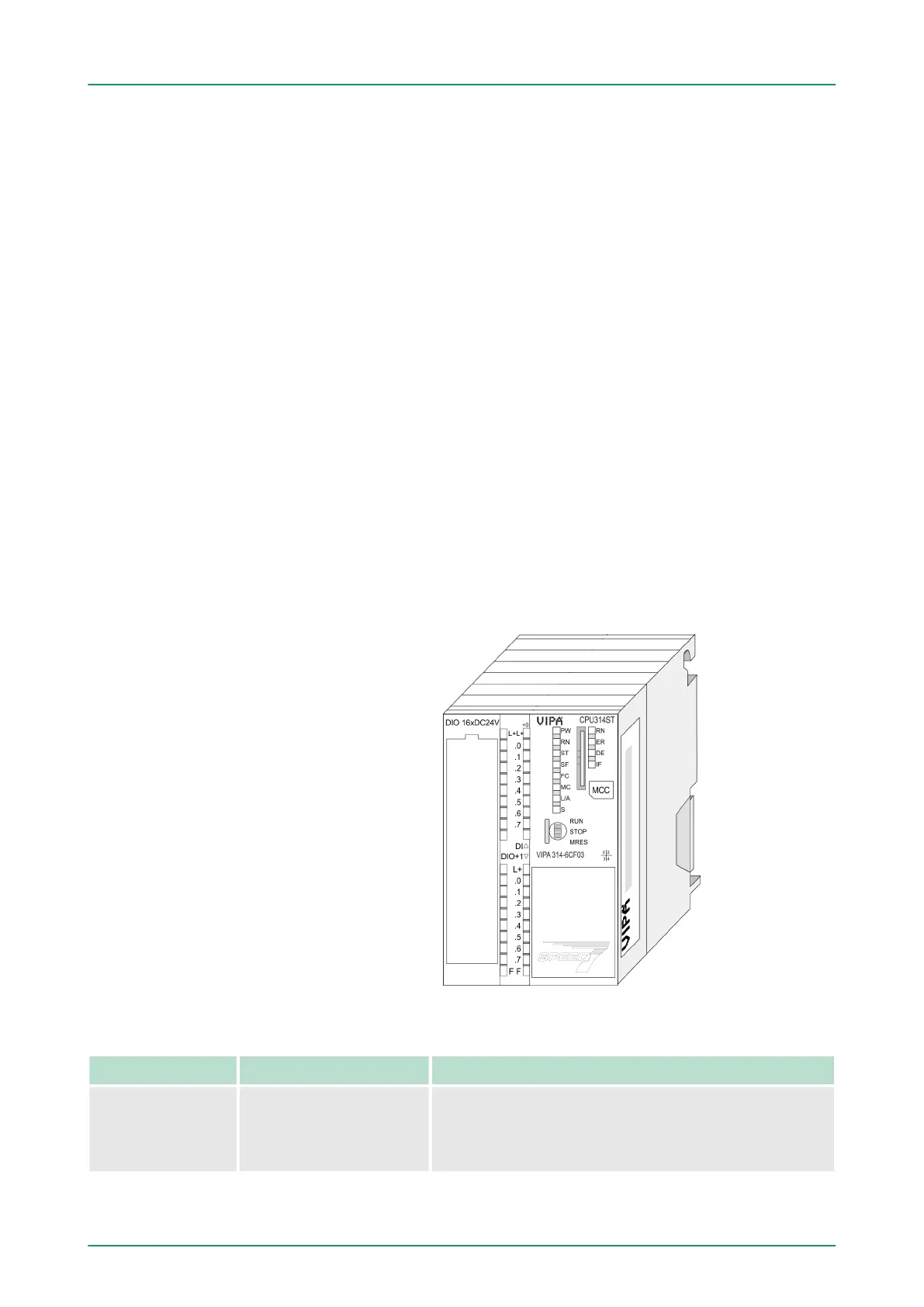

CPU 314-6CF03
Ordering data
VIPA System 300S Hardware description
Properties
HB140 | CPU | 314-6CF03 | GB | 16-43 31
