Limits Valid value range
Lower count limit
-2 147 483 648 (-2
31
)
Upper count limit
+2 147 483 647 (2
31
-1)

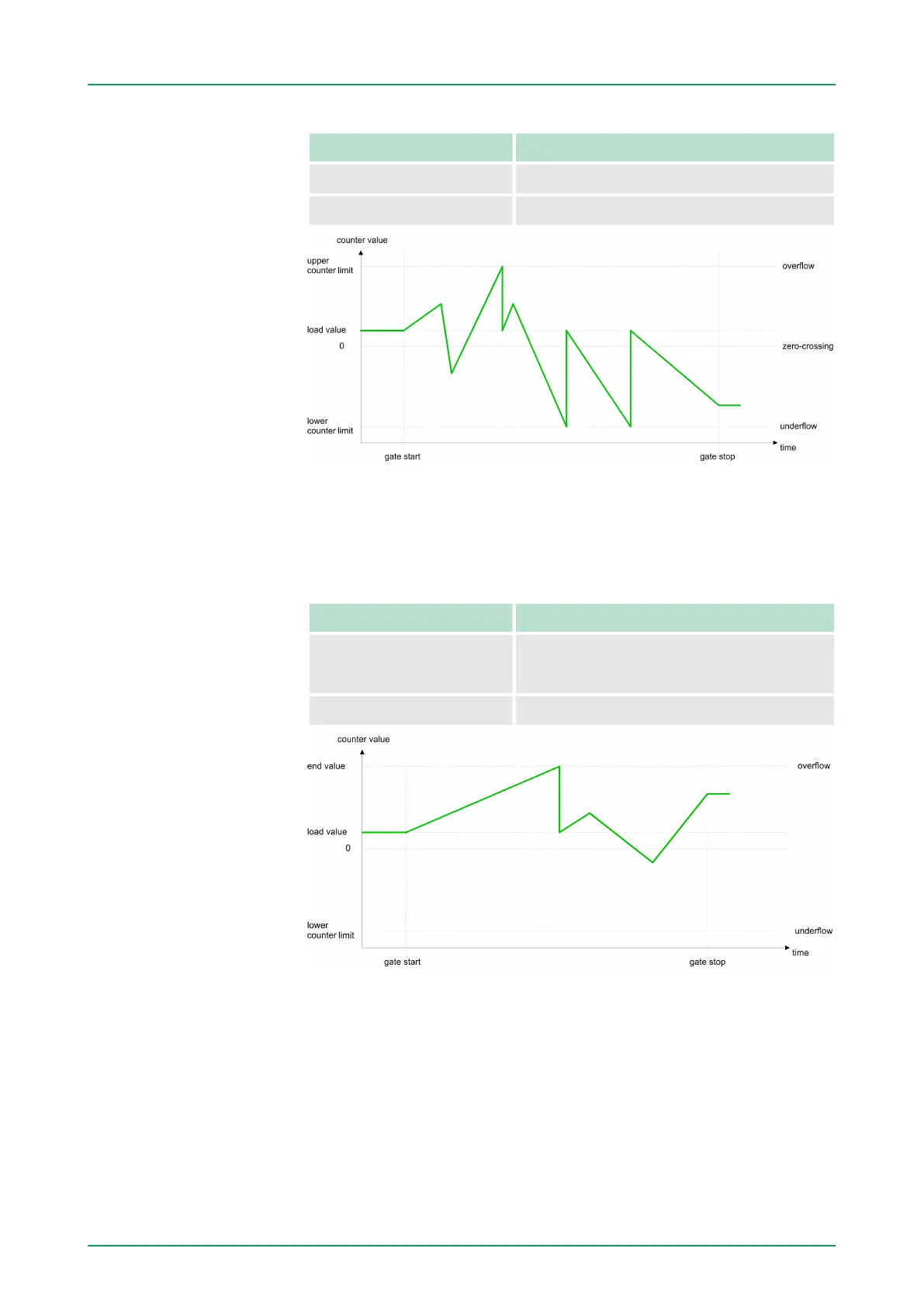

Main counting direction forward
n The counter counts forward starting with the load value.
n When the counter reaches the end value –1 in positive direction, it
jumps to the load value at the next positive count pulse.
Limits Valid value range
Limit value
-2 147 483 647 (-2
31
+1)
to +2 147 483 647 (2
31
-1)
Lower count limit
-2 147 483 648 (-2
31
)
Main counting direction backwards
n The counter counts backwards starting with the load value.
n When the counter reaches the end value +1 in negative direction,
it jumps to the load value at the next negative count pulse.
n Y
ou may exceed the upper count limit.
