3. T
o get the stations and their MAC address, use the [Browse]
button or type in the MAC Address. The Mac address may be
found at the 1. label beneath the front flap of the CPU.
4. Choose if necessary the known MAC address of the list of found
stations.
5. Either type in the IP configuration like IP address, subnet mask
and gateway
.
6. Confirm with [Assign IP configuration].
ð
Direct after the assignment the Ethernet PG/OP channel
may be reached online by these address data. The value
remains as long as it is reassigned, it is overwritten by a
hardware configuration or an factory reset is executed.
1. Open the Siemens hardware configurator und configure the Sie-
mens CPU 317-2DP (6ES7 317-2AJ10-0AB0/V2.6).
2. Configure the modules at the standard bus.

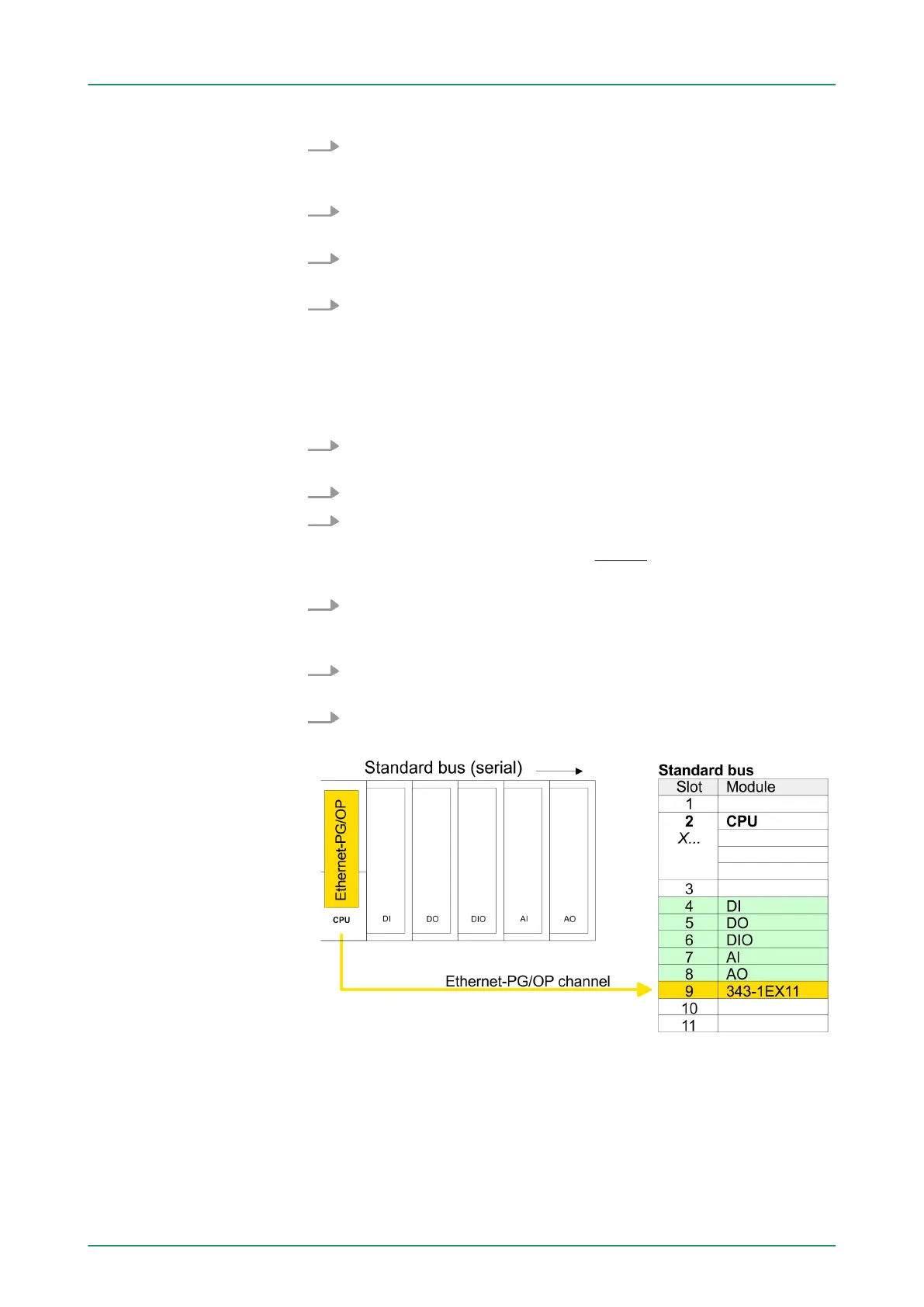

3. For the Ethernet PG/OP channel you have to configure a Sie-
mens CP 343-1 (SIMA
TIC 300 \ CP 300 \ Industrial Ethernet \CP
343-1 \ 6GK7 343-1EX11 0XE0)
always below the really
plugged modules.
4. Open the property window via double-click on the CP
343-1EX1
1 and enter for the CP at ‘Properties’ the IP address
data, which you have assigned before.
5. Assign the CP to a ‘Subnet’ . Without assignment the IP address
data are not used!
6. T
ransfer your project.
Take IP address param-
eters in project
