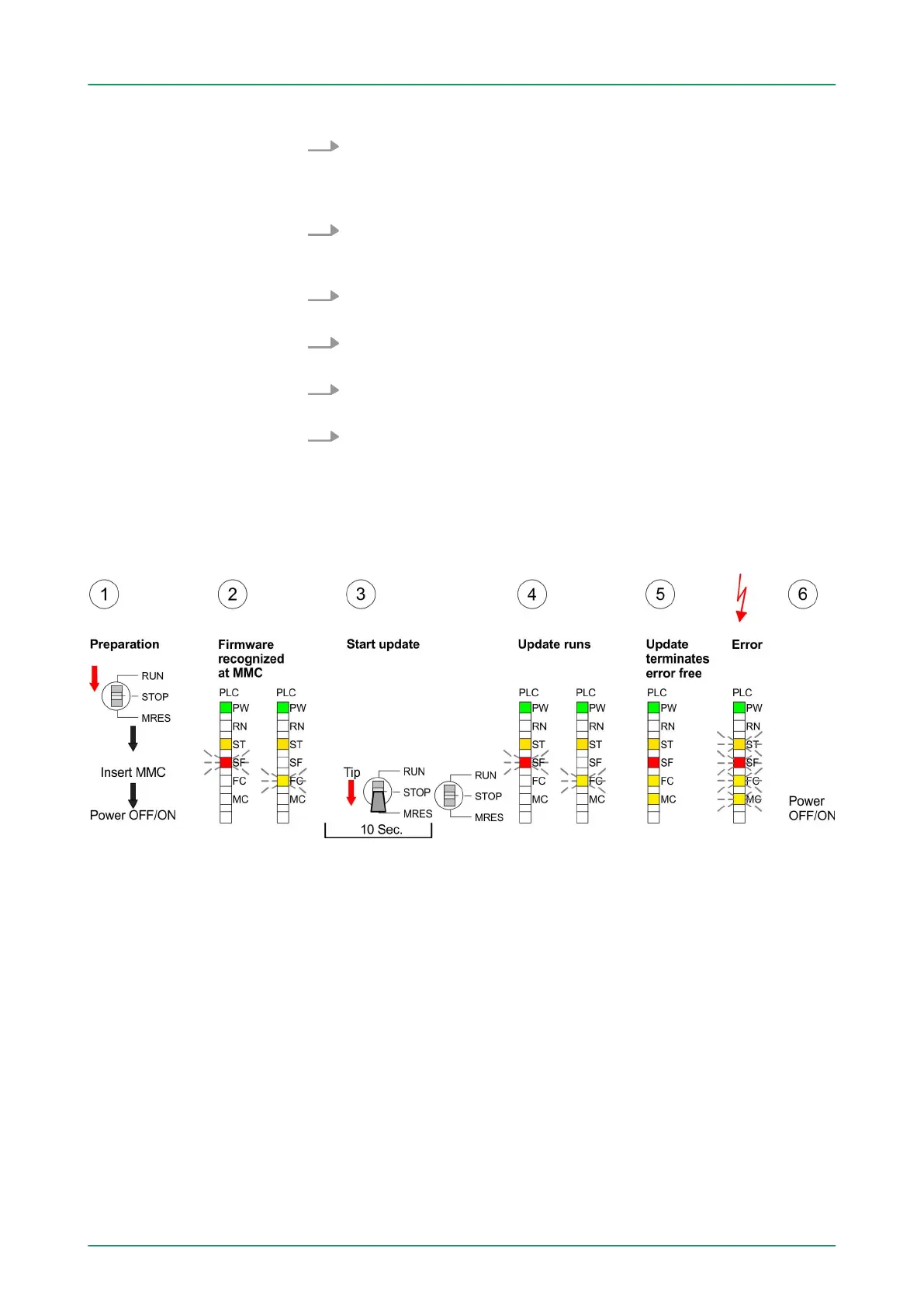

1. Switch the operating mode switch of your CPU in position ST
OP.
Turn off the voltage supply. Plug the MMC with the firmware files
into the CPU. Please take care of the correct plug-in direction of
the MMC. Turn on the voltage supply.
2. After a short boot-up time, the alternate blinking of the LEDs SF
and FC shows that at least a more current firmware file was
found on the MMC.
3. Y
ou start the transfer of the firmware as soon as you tip the
operating mode switch downwards to MRES within 10s.
4. During the update process, the LEDs SF and FC are alternately
blinking and MC LED is on. This may last several minutes.
5. The update is successful finished when the LEDs PW
, ST, SF,
FC and MC are on. If they are blinking fast, an error occurred.
6. T
urn Power OFF and ON. Now it is checked by the CPU,
whether further current firmware versions are available at the
MMC. If so, again the LEDs SF and FC flash after a short start-
up period. Continue with point 3.
ð
If the LEDs do not flash, the firmware update is ready. Now a
factory reset should be executed (see next page). After that
the CPU is ready for duty.
Transfer firmware from
MMC into CPU
VIPA System 300S Deployment CPU 314-6CF03
Firmware update
HB140 | CPU | 314-6CF03 | GB | 16-43 87
