VM1000C Pilot’s Guide Page
39
Data Communications
VISIONCONFIG can use any available serial port. When you start
the program by clicking VISIONCONFIG.exe, the program will
search all COM ports on your PC automatically, and list all COM
ports in the COM port combo box. You can select any one that is
connected with VM1000C. The default baud rate value is 19,200.

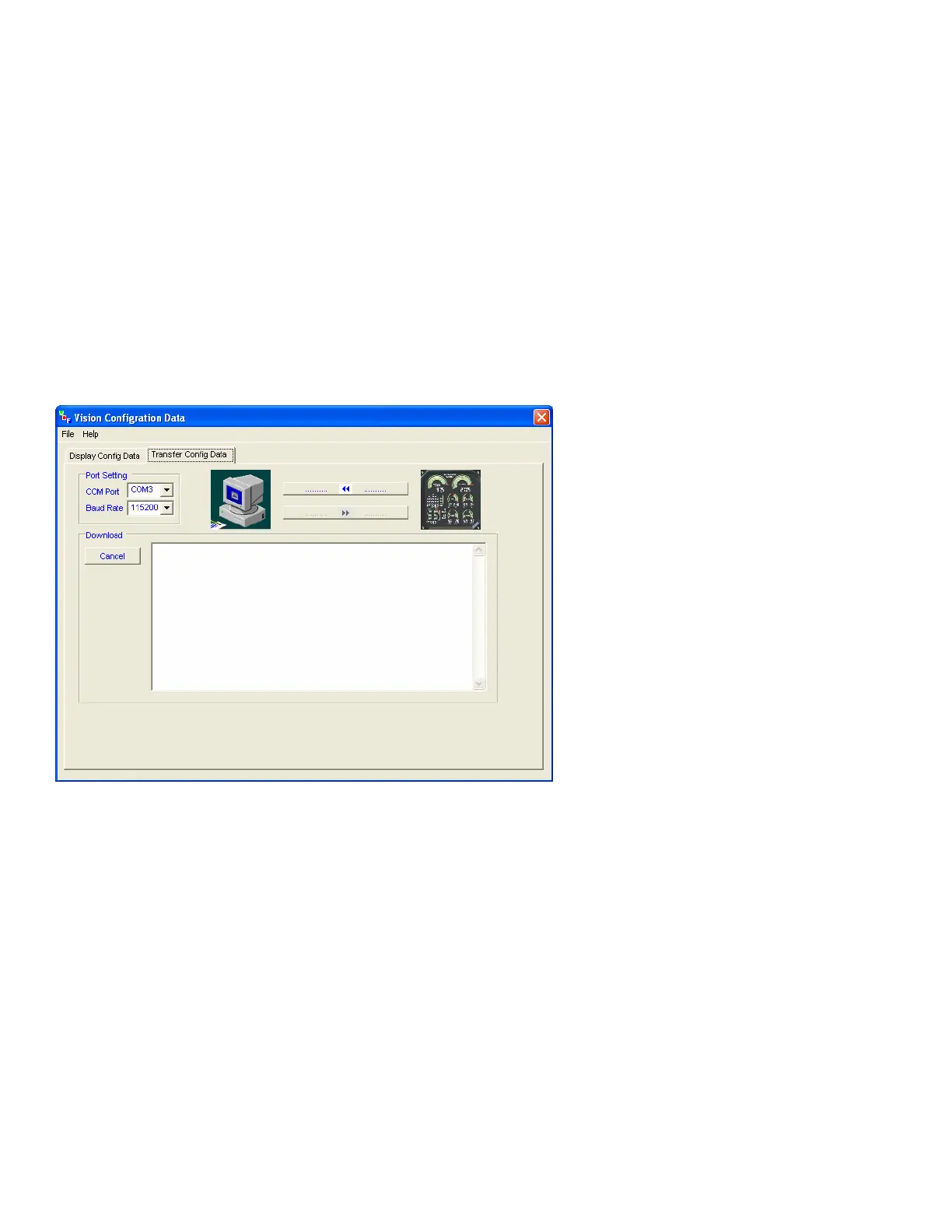

There are two modes for transfer: Download and Upload. Download
mode transfers the configuration data from VM1000C to your PC.
Click the Start button. The window will display the number of bytes
received. Save the configuration data in a file at the completion of
downloading. Upload mode transfers configuration data from your
PC to VM1000C. Click the Start button. The program will display
the number of bytes sent.
Configuring your VM1000C using your PC
To download the current configuration in the VM100C:
