Visonic KF-234 PG2 User Manual

KF-234 PG2
D-302758 3
KEYFOBS (KF-234 PG2)
Wireless PowerG 2-Way Keyfob
1. INTRODUCTION
KF-234 PG2 is a miniature PowerG 4-button (6-function) keyfob, designed for use
with the PowerMaster-10.
Transmission is initiated by pressing any one of the four recessed pushbuttons.
Upon pressing a specific button, the KF-234 PG2 transmits a PowerG message
associated with the button that was pressed and identifiable by PowerMaster-10
control panels.
A red LED lights during transmission. When an identified command is received by
the PowerMaster-10 control panel, it acknowledges the command. Upon
acknowledgement, the green LED lights and a happy beep is heard to indicate
successful completion of the command or the red LED lights and a sad beep is
heard to indicate that the control panel cannot perform the command.

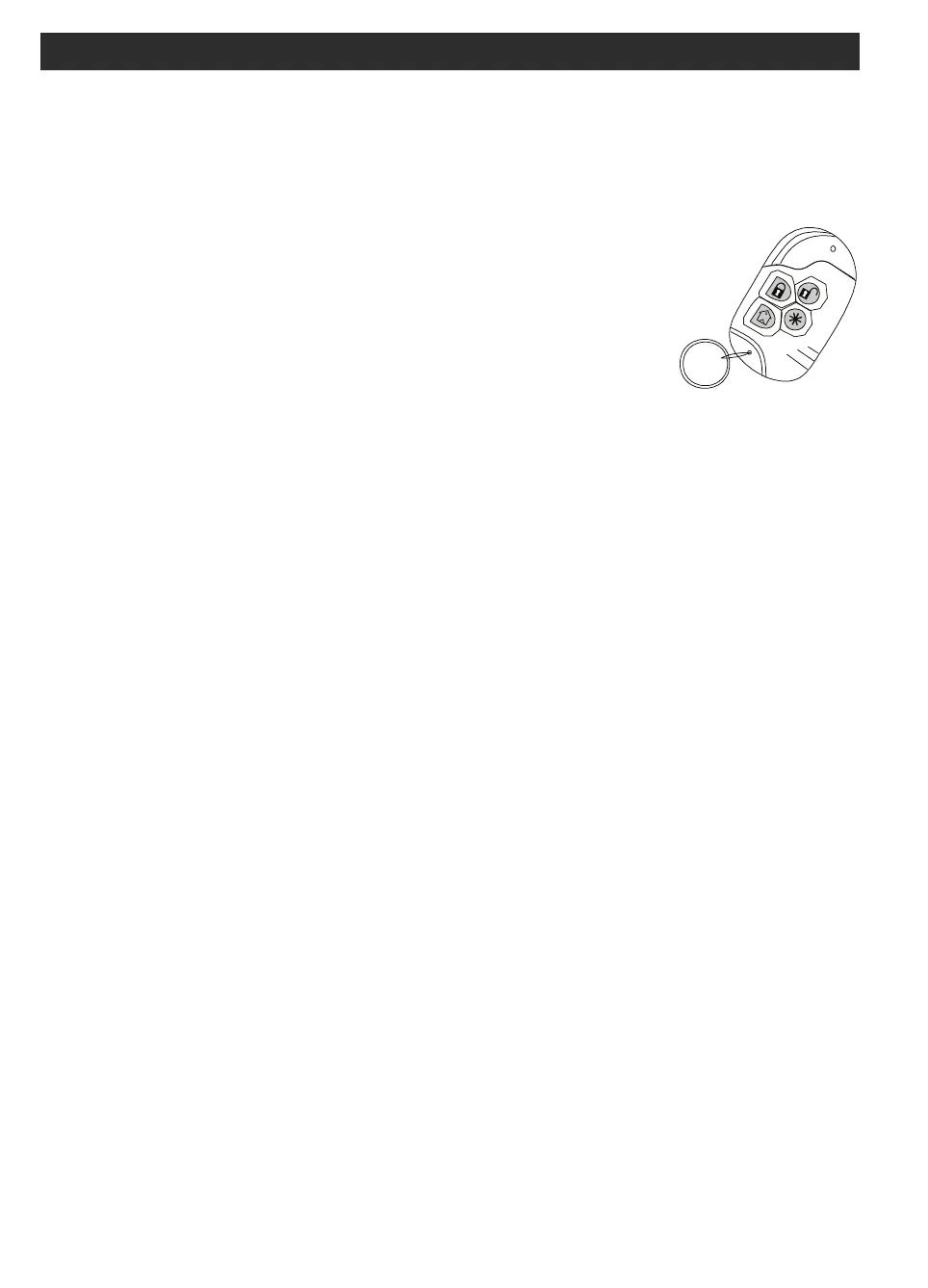

Figure 1:
External View
In addition, a battery report is transmitted with the outgoing message. PowerMaster-10 control panels are
designed to identify this report and operate a corresponding output, if required.
Each keyfob is supplied with a small key ring.
Operating power is obtained from an internal 3V Lithium battery.
2. SPECIFICATIONS
Frequency Band (MHz)
Europe: 433, 868, USA: 915
Modulation
GFSK
Antenna
Built-in helical antenna
Communication Protocol
PowerG
Battery type
3V CR-2032 Lithium battery
Caution!
Risk of explosion if battery is replaced by an incorrect type. Dispose of
used battery according to manufacturer's instructions.
Battery Life Expectancy
8 years (for typical use)
Note: If transmission is still possible despite the battery condition, the unit
will send a low battery signal to the control panel.
Transmitted Messages
Arm Away, Arm Home, Arm Latchkey, Disarm, AUX and Panic.
Operating Temperature
0° to 55°C (32° to 131°F)
Dimensions
60 x 34.5 x 12.5 mm (2-3/8 x 1-3/8 x 1/2 in.)
Weight (including battery)
25 g (0.9 oz)
Color
Black
Compliance with Standards Europe: EN 300220, EN 50131-1 Grade 2, Class II and (EN 50134-2
Class II if used for social alarm), EN 301489, EN 50130-4, EN 60950
USA: CFR47 Part 15
Canada: RSS 210
3. ENROLLMENT
Refer to the PowerMaster-10 Installer Guide for the device enrollment procedure.
4. MODIFY DEVICE SETTINGS

Visonic KF-234 PG2 Specifications

General

Brand	Visonic
Model	KF-234 PG2
Category	Security System
Language	English
