NEXT PG2, NEXT-K9 PG2
6 D-302758
MOTION SENSORS (NEXT PG2, NEXT-K9 PG2)
Wireless, PowerG, Digital PIR / Pet Immune PIR Detectors
1. INTRODUCTION
The Next PG2 and Next-K9 PG2 are 2-way, microprocessor-controlled, wireless digital PIR detectors.
The detectors features are as follows:
• Combined Fresnel and cylindrical optics, up to 15 meters (49 ft).
The Next PG2 includes wall creep zone protection.
In Next PG2 and Next-K9 PG2, Target Specific Imaging™ (TSI) technology is used for distinction between
human beings and pets weighing up to 38 kg (85lb).
• Includes a fully supervised PowerG transceiver.
• The advanced True Motion Recognition™ algorithm (patented) allows distinguishing between the true motion of
an intruder and any other disturbances which may cause false alarms.
• Sophisticated frequency domain digital signal processing.
• No vertical adjustment is needed.
• Motion event counter determines whether 1 or 2 consecutive motion events will trigger
an alarm.
• Automatic termination of walk-test after 15 minutes.
• Microprocessor-controlled temperature compensation.
• Sealed chamber protects the optical system.
• Front cover and back tamper switches, for improved tamper protection.
• White light protection.
LED
Len

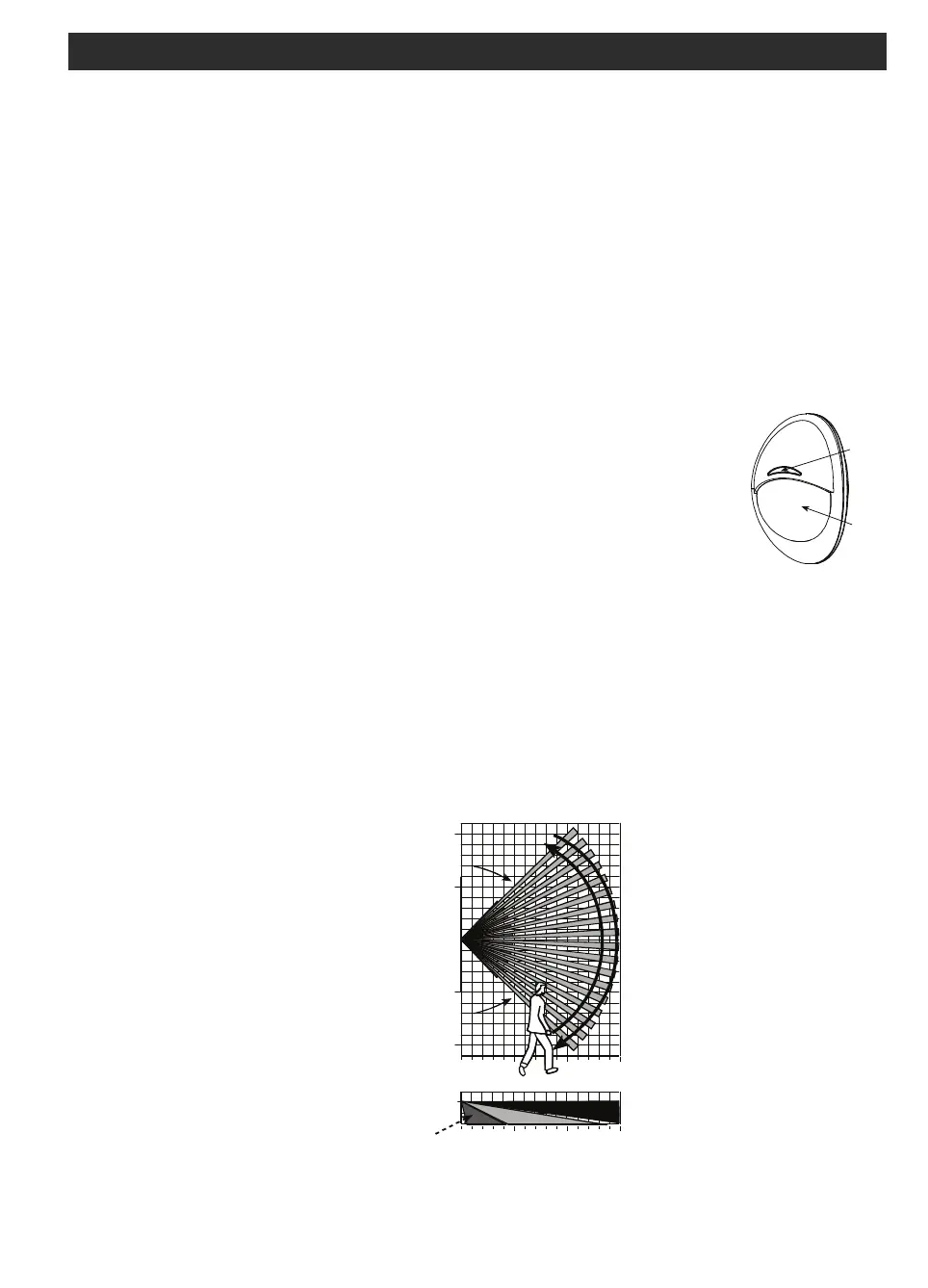

Fig. 1. External
View
2. SPECIFICATIONS
GENERAL
Detector Type
Dual element low-noise pyroelectric sensor
Lens Data
No. of Curtain Beams / curtains:
Next PG2: 18 far, 18 mid, 10 close.
Next-K9 PG2: 18 far, 18 mid, 18 close.
Max. Coverage: 15 x 15 m, (49 x 49 ft) / 90°
90°
5
0
16.4
0
15 m
49.2 ft
10
32.8
5m
16.4ft
5m
16.4ft
10m
32.8ft
10m
32.8ft
HORIZONTAL VIEW
51015 m
0
2.1 m
(6.9 ft)
16.4 32.8 49.2 ft
VERTICAL VIEW
Next PG2: 0.5-4m
Next-K9 PG2: 2-4m
Fig. 2. Coverage Pattern & Walk-test
