SR-730 PG2
D-302758 41
installation. If this device does cause such interference, which can be verified by turning the device off and on,
the user is encouraged to eliminate the interference by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
Changes or modifications not expressly approved by Visonic Ltd. could void the user's authority to operate the
equipment.

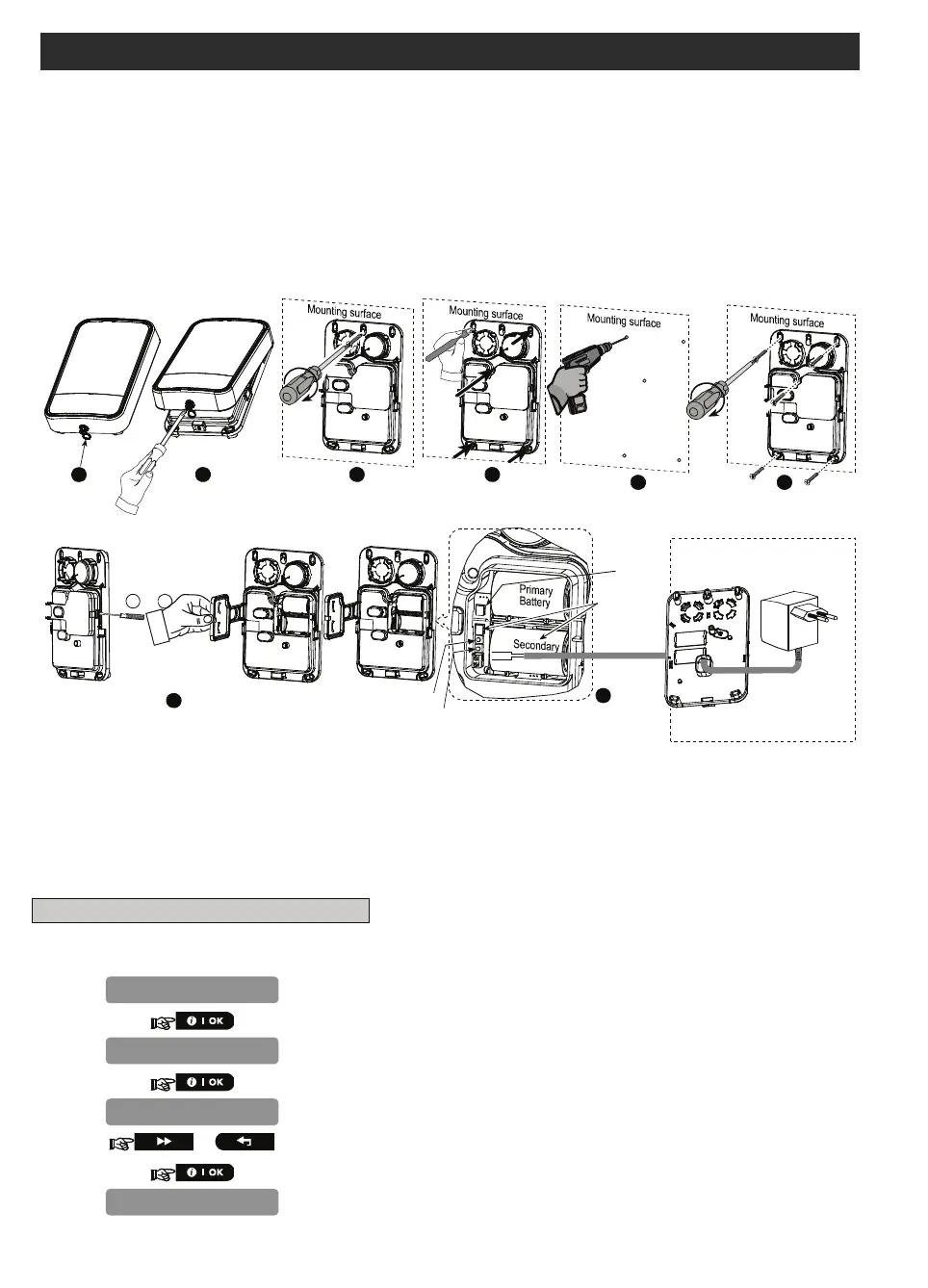

3. INSTALLATION
Optional step only:
Hang back unit with a screw on
mounting surface to make the next
step (drilling marking) easier.
3
Mark for driling
4
For
tamper
1
Open
plastic cover
screw
Using Philips screw-
driver, remove screw
and remove cover.
2
Drill 5 holes
5 6
Fasten with 5 screws
BA
Release catch (A) and open battery cover (B)
7
Optional second
battery and
its connector
Enroll button
Connect battery / optional battery and 9VAC
power to the proper connectors and set the
optional jumpers as desired
8
220/110 VAC
9VAC
9VAC
Siren rear side
Note: When external
power is used, set the
AC Enable (ON)/
Disable(OFF) jumper
to Enable position
(see step 8)
Note:
There are SR-730 PG2 model
variations that are supplied with battery only,
or, with battery and AC adaptor.
Battery connector
Self-test button
Figure 3: Installation
4. ENROLLMENT
Refer to the PowerMaster-10 Installer Guide for the device enrollment procedure.
5. MODIFY DEVICE SETTINGS
This section describes how to configure the parameters of the siren from the PowerMaster-10 control panel.
To Modify the Siren Device Settings
Refer to the PowerMaster-10 Installer Guide and perform the procedure for Adding A Wireless Device (section
4.5.2), or, Modifying a Device (section 4.5.5). Then continue below to modify the device settings.
1.
Here you determine the mode in which the strobe alarm will operate.
2.
3.
or
Select between "Timer limited", "Disabled" and "Until Disarmed".
4.
TROBE ALARM
TROBE ALARM
EV SETTINGS
imer limited
To Next Page
