Vitus Audio RD-101 - Replacing a Blown Fuse

27
RD-101 | Version 1
4. operation &
service
Fuse type:
230V: 20 x 5mm – 500mA – T -
LBC fuse (Time lag fuse)
100-120V: 20 x 5mm – 1 A – T
- LBC fuse (Time lag fuse)
Replacing the fuses with fuses
of a type and rating different
from the original fuses, might
result in damage to the unit
and injury to you (the user).
Damage to the unit as a result
of wrongly replacing the
mains fuse, will invalidate the
guarantee.
For an explanation of how to
replace the fuse see “Replacing
a blown fuse”chapter 4.

Replacing a blown
fuse
REMOVE THE POWER CABLE
In the following steps we will
show you how to replace a
blown fuse.
5 There is a spare fuse
available in the fuse carrier.
spare fuse
blown fuse
2 Take a small flat bladed
screwdriver and place it over
the fuse carrier.
4 Pull the fuse carrier out.
3 Open the fuse carrier.

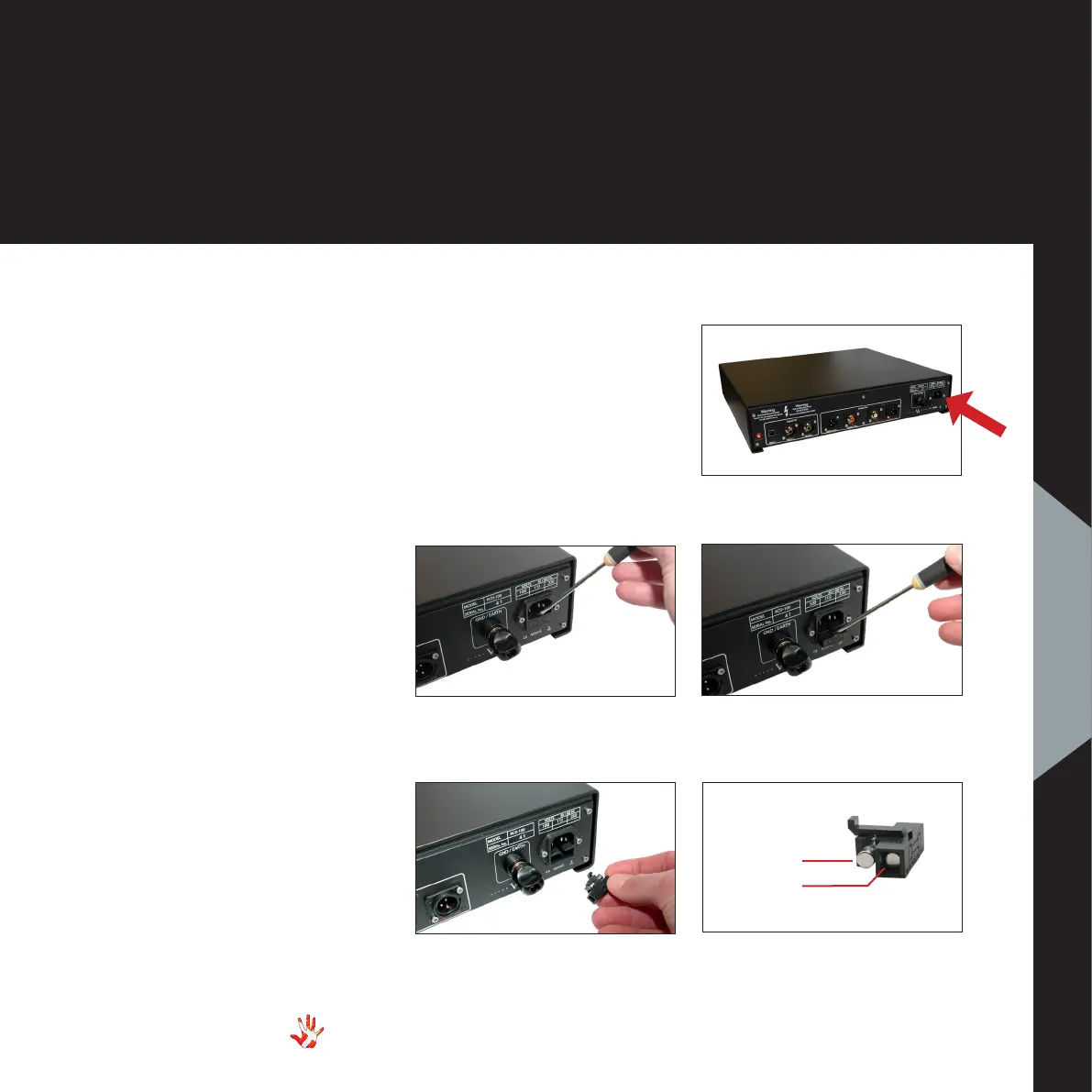

1 The fuse carrier is placed
on the back under the power
connector
4. operation & service
