Voith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Removing and Installing the Retarder
Voith Turbo I 153.00009710 I arrtd I 2005-11
© 2005
Requirements
• Retarder switched off
• Ignition switched off
• Supply-air pressure discharged
• Retarder oil discharged (see page 22)
• Coolant drained (see page 28)
• Gearbox oil discharged
• Propeller shaft at gearbox flange removed
• Output flange removed
• Speedometer sensor removed
• Retarder with gearbox removed from vehicle

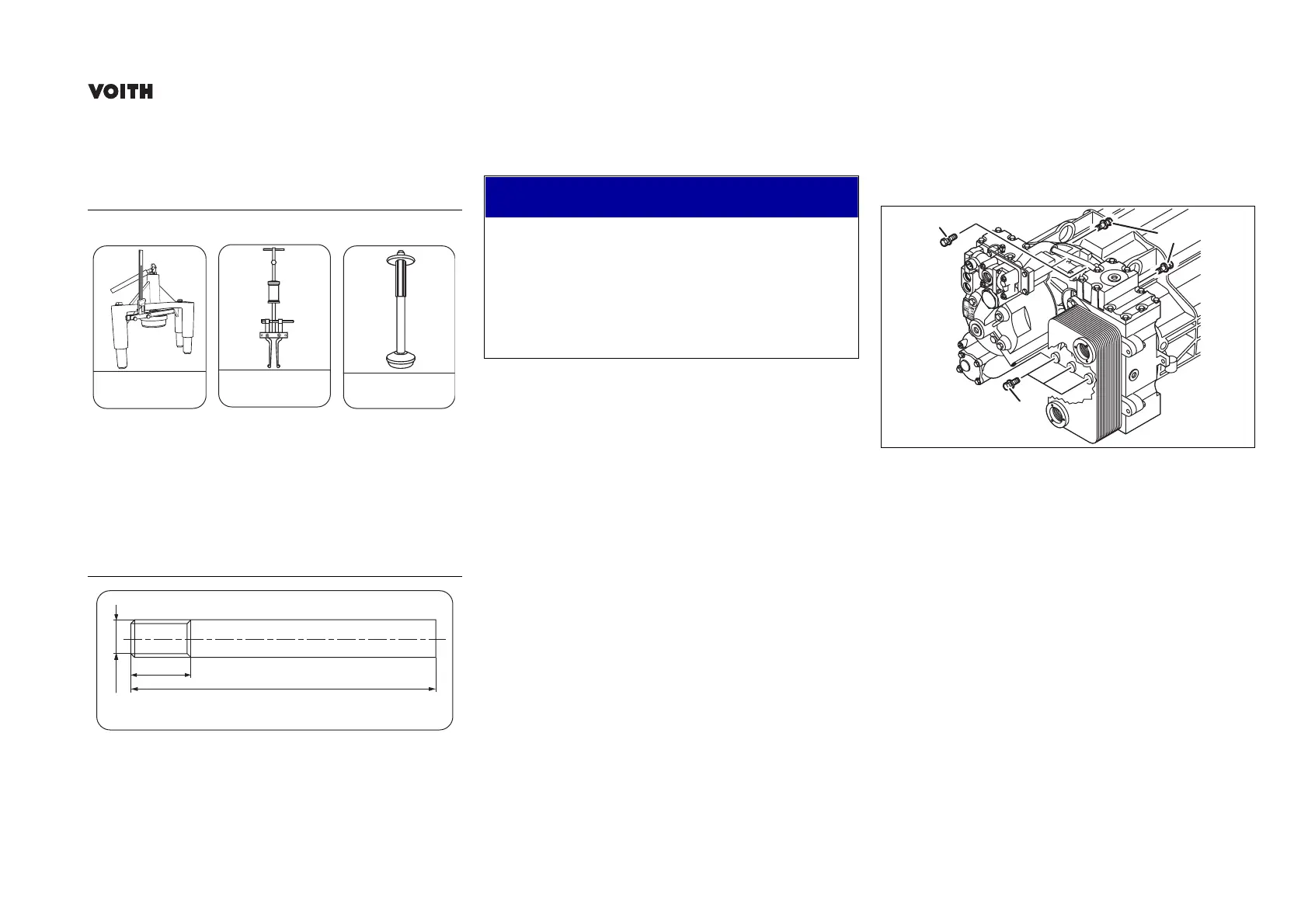

Removal
1. Unscrew the hex head screws (25200) and
(25300).
2. Remove retarder from the gearbox with a suitable
lifting device.
Special tools
Measuring
device
Puller
for bearing outer
ring
Drive-in tool
98/1 98/3 98/4
Tools for self-fabrication
Material: St37-2, DIN 17100 (1.80)
2 x Threaded bolt
H67.3224xx
FJ 6280 0
486 265
H67.3320xx
H67.3319xx
15
80
M10
28028
Ö The shim must always be redetermined if
- the inside part (800) is replaced
- the retarder is attached to the gearbox
- the retarder has been repaired
- the gearbox has been repaired
NOTE
25200
25200
25300
28029
