Casing VentilationVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Repair
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005

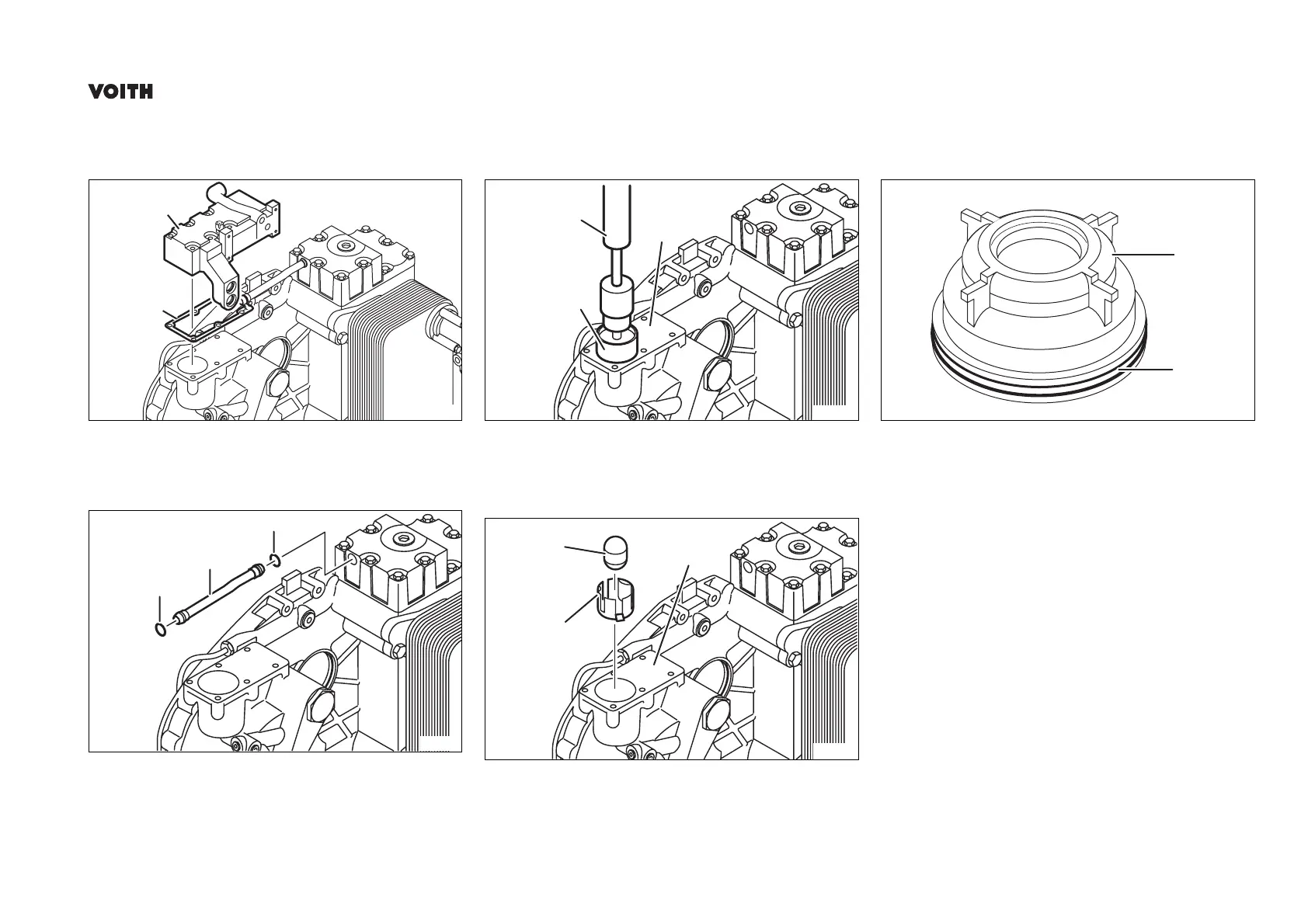

2. Remove cover of casing ventilation (2800).
3. Remove casing ventilation cover gasket (2900).
4. Remove the pipe (6100).
5. Knock valve insert (2300/1) with the impact puller
(99/5) and the adapter (98/9) upward from the
retarder housing (100).
6. Remove float (2300/2) and float cage
(2300/3) from the retarder housing (100)
7. Take O-ring (2301) out of the groove in the valve
insert (2300/1).
