Pressure Control ValveVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Repair
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005

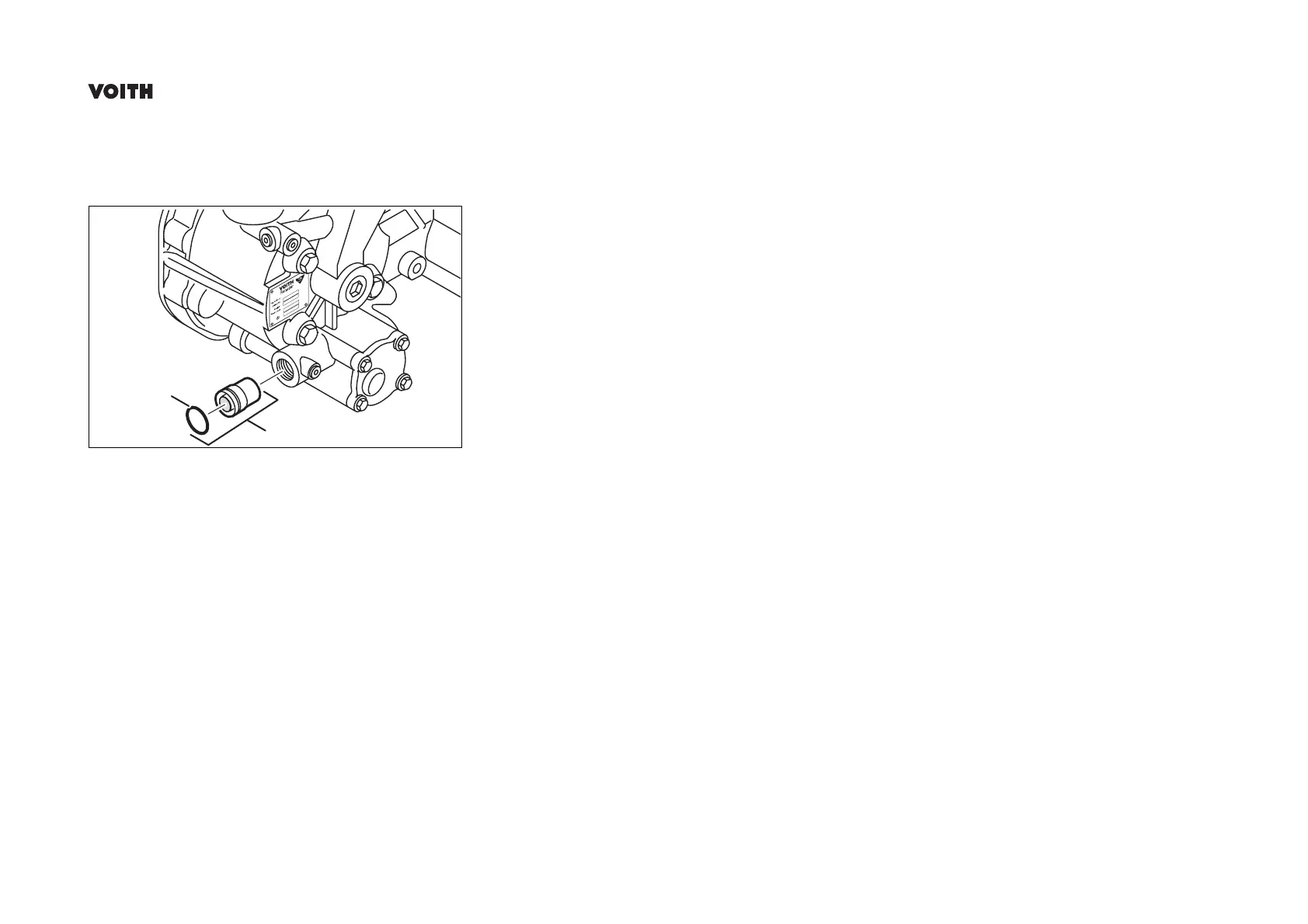

Installation
1. Lubricate the new O-ring (2206) with silicone-free,
non-corrosive grease and pull it onto the pressure
control valve (2200).
2. Carefully press pressure control valve (2200) with
the impact puller (99/5) and the screw plug (50/43)
into the retarder housing.
3. Lubricate the new sealing ring (3550) with
silicone-free, non-corrosive grease.
4. Screw in the screw plug (3500) with sealing ring
(3550) and tighten to 130 Nm.
