1. Leave your Brat in the base of the box for added support until kickstand is
installed.
2. Remove and open the small box under the bike, which contains the parts and
tools needed to assemble your Brat.
3. Follow the Kickstand Installation steps next.
4. After installing the kickstand, you can then fully remove the Brat from the box
and lean it on the kickstand.
5. Make sure to remove all the protective foam and zip ties from all around the
Brat before you continue to the rest of the assembly process.
Kickstand Installation

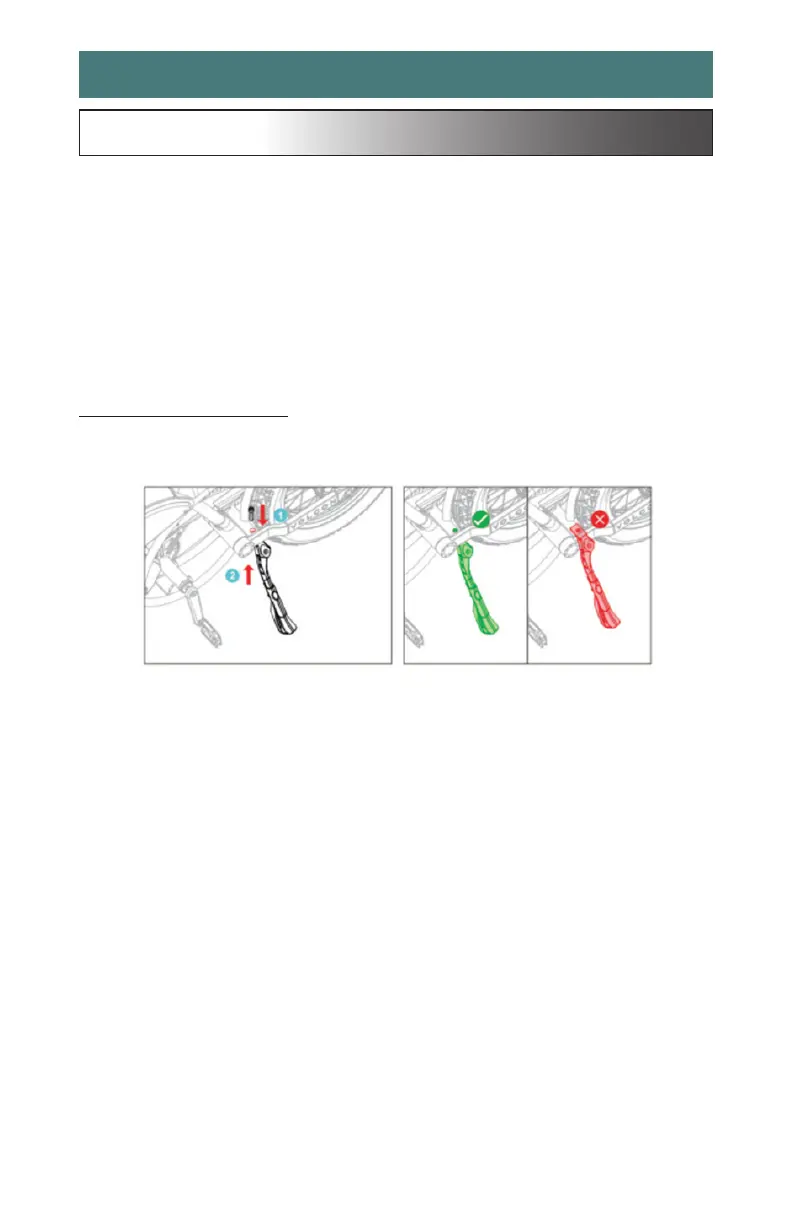

Figure 9 - Kickstand Installation
1. Find the kickstand bolt hole below the rear shock on the left side of the bike
(non-chain side) the hole will have a small rubber plug, remove that plug.
2. Install the kickstand into the slot on the bottom of the swing arm.
3. Insert the 8mm Allen bolt into the screw hole from top to bottom.
4. Torque the kickstand bolt at 7.37 ft lbs (10.00 Nm) with the 8mm Allen wrench
provided.
5. Re-install the rubber plug over the kickstand bolt hole.
ASSEMBLY & SETUP
