VOLCON BRAT - Handlebar Installation

pg. 24
VOLCON BRAT OWNER’S MANUAL
Handlebar Installation

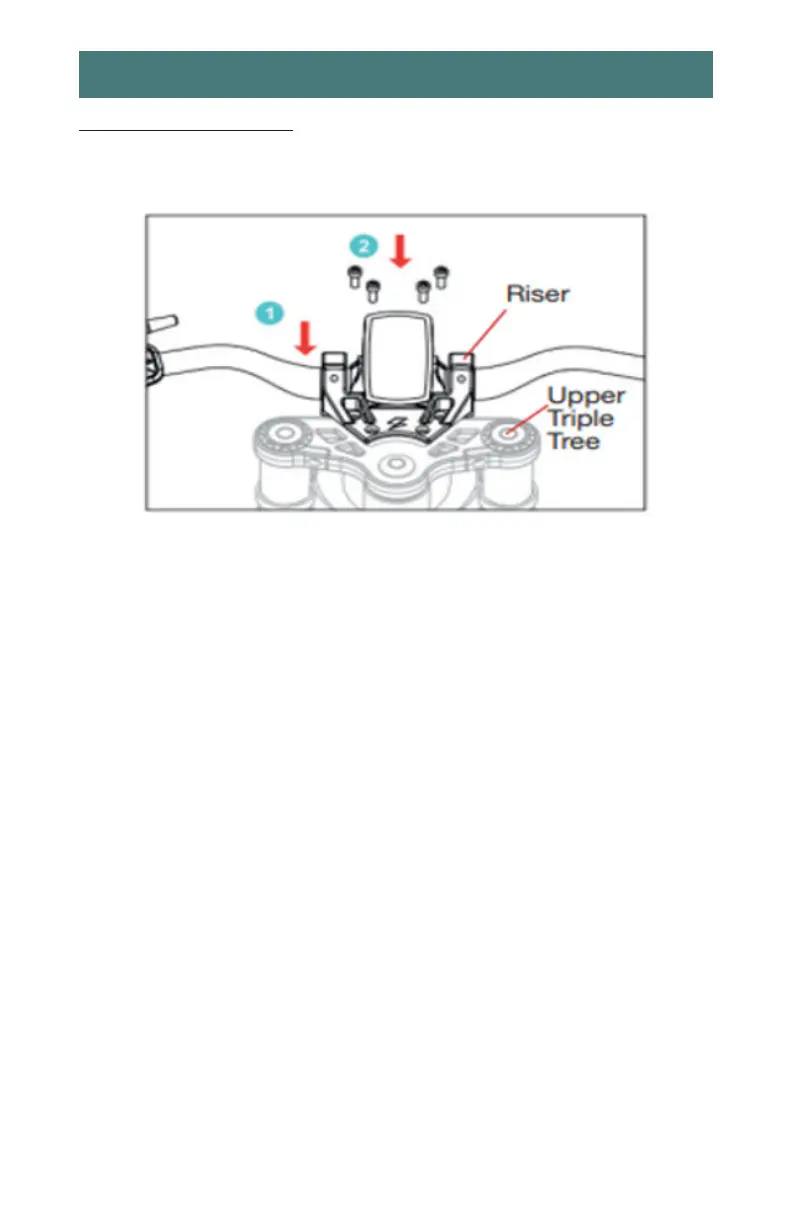

Figure 10 - Handlebar Installation
1. Attach the handlebar by placing the riser assembly into the mounting slot of the
upper triple tree.
2. Then insert 4 x 5mm Allen bolts into the holes from the top.
3. Torque the screws at 7.37 ft lbs (10.00 Nm) with the 5mm Allen wrench
provided.
