5.Panel Operation
11
Figure 5-6: Set the symmetry of ramp wave
Glossary
Symmetry: Sets the percentage of the period during which the ramp waveform
is rising.
Output Pulse Wave
Press , the screen displays the user interface of the pulse wave. The
Pulse waveform parameters can be set by operating the Pulse setting menu
on the right.
The pulse wave menu includes: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Phase, Width/Duty, and Rise/Fall.
To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, Phase,
please refer to Output Sine Wave on page 6.
Load
Output
switch
Parameter 1
Parameter 2
Parameter 3
Parameter 4
Pulse
Period
High low - level
Channel
Current
signal
Setting menu of
Pulse signal
Parameter 5
Parameter 6
Parameter 7

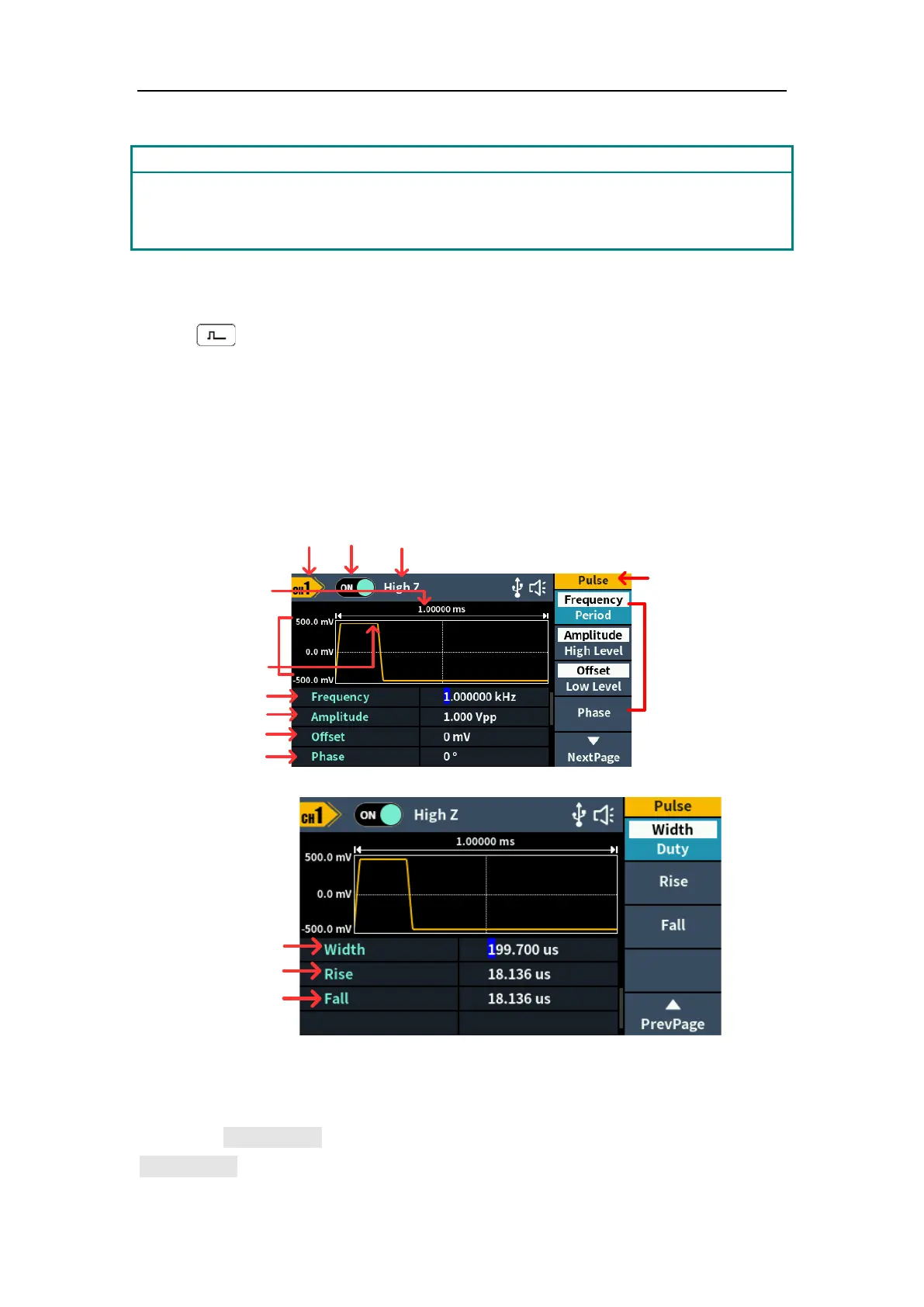

Figure 5-7: Pulse wave user interface
Set the pulse width/duty cycle
Press the Width/Duty softkey, the chosen menu item is highlighted. Press the
Width/Duty softkey to switch between Pulse Width and Duty Cycle. In
