Volvo Penta D1-13 - 26-1 Radiator, Heat Exchanger; Heat Exchanger Cleaning and Change

26-1 Radiator, Heat Exchanger
Heat Exchanger, Cleaning
Drained cooling system and raw water. Air filter
housing removed. Removed expansion tank and
attachment fitting (D1-30 and D2-40)

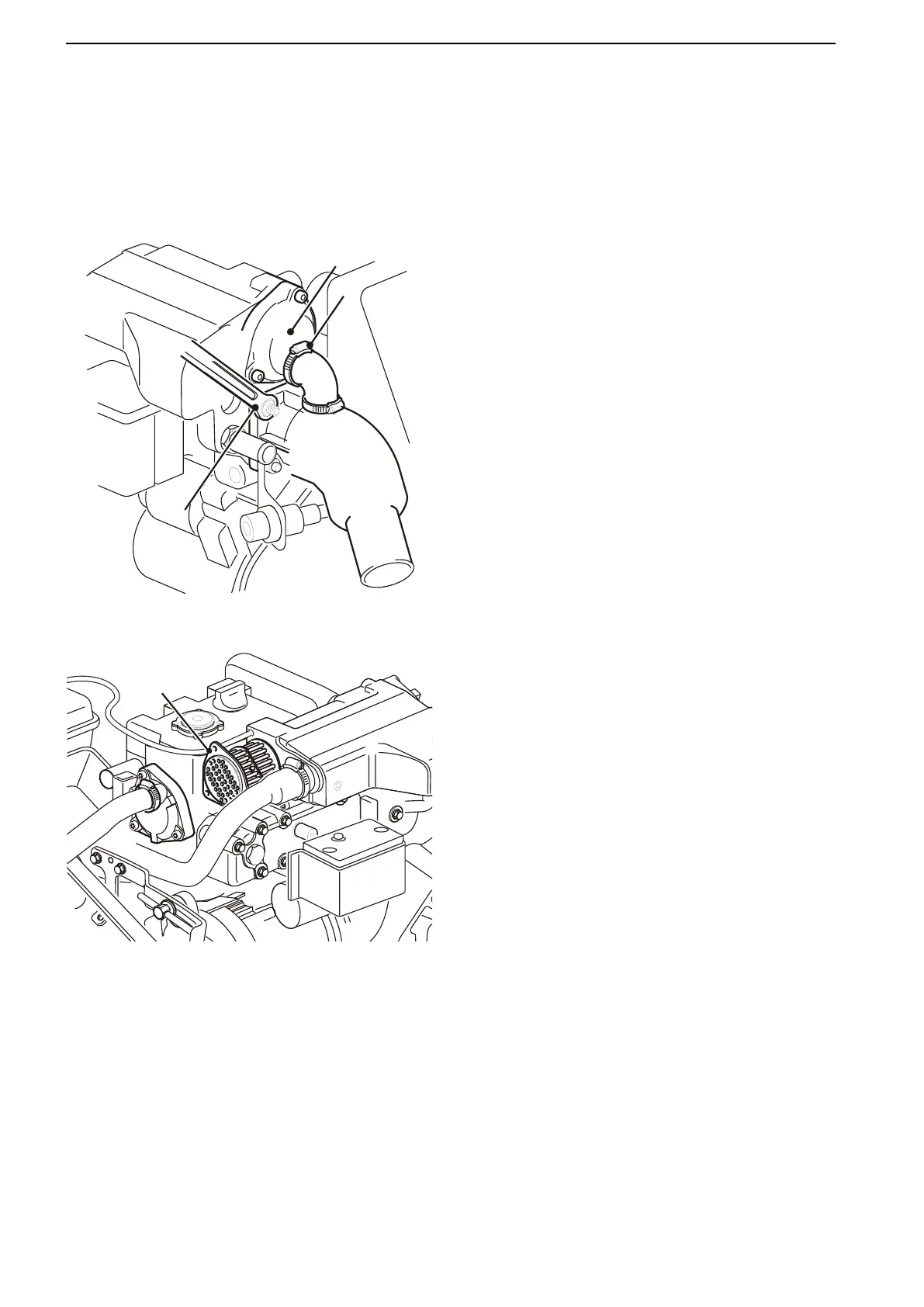

1 Undo the heat exchanger end plate on the alter-
nator side.
Remove the exhaust elbow (1
) and hose clamp
(2) from the heat exchanger end plate. Remove
the exhaust elbow.
Undo the other heat exchanger end plate (3).
2 Remove the insert (1) and clean it.
P0008143
3
2
1
1
p0008144
