Volvo Penta D1-13 - Timing Gear, Installation

Timing Gear, Installation

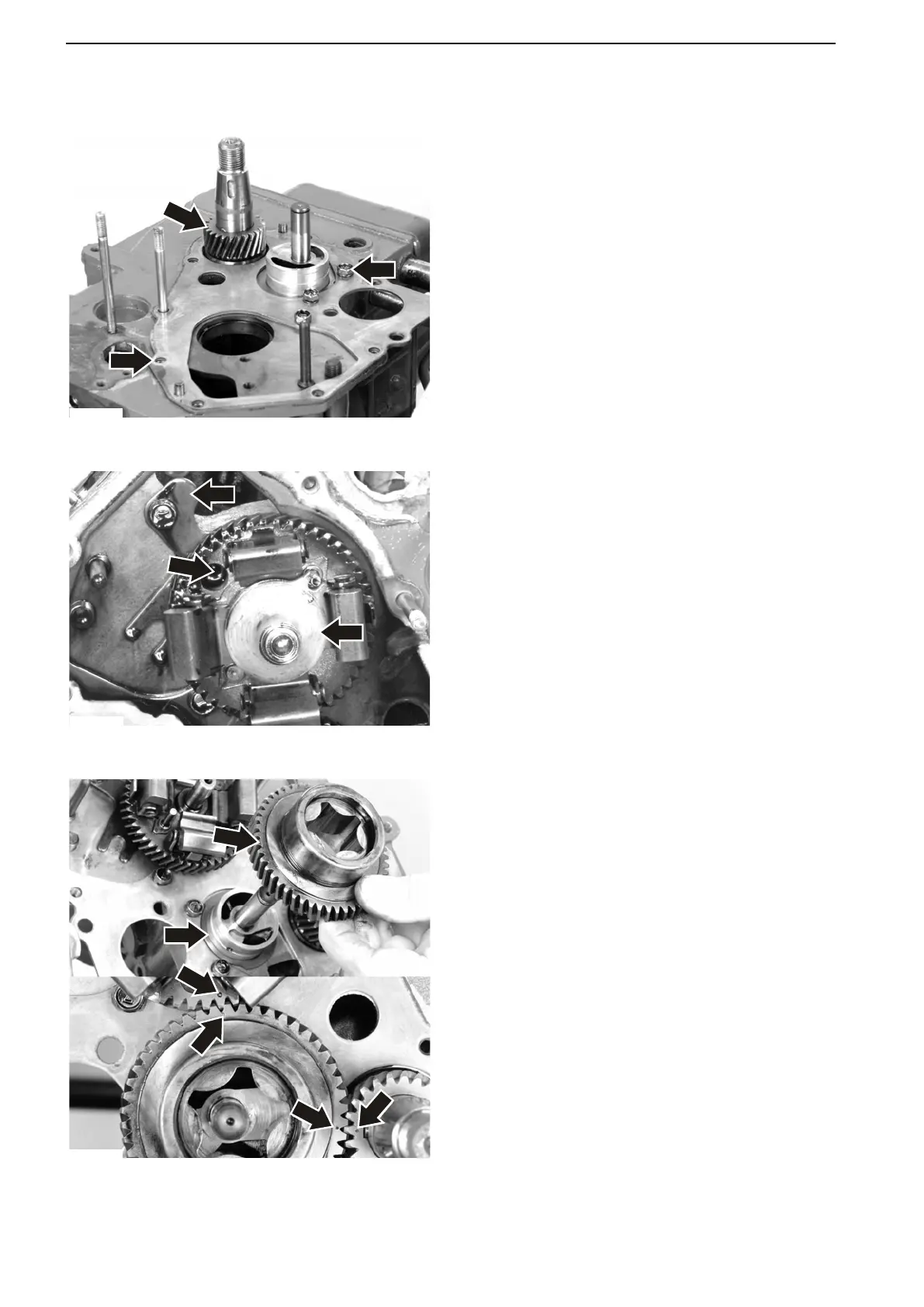

1 Place the
gear wheel (1) and its key on the crank-
shaft. Tap the gear wheel on.
Position the timing gear plate (2) and a new gas-
ket.
Fasten the timing gear plate inner bolts (3).
2 Carefully insert the camshaft.
IMPORTANT!
If
the
camshaft is forced in, there is a risk that one
of the cam lobes will damage an internal bearing.
Place the lock plate (1) in position. Rotate the cam-
shaft until the screw hole for the socket cap screw
(2) becomes visible in the hole in the camshaft
drive gear. Fasten the lock plate. Place the cam-
shaft regulator sleeve (3) in position.
3 Fit the thrust washing (1) in place. Put on the oil
pump gear wheel (2). Make sure that the mark-
ings (3) on the gear wheel line up with the mark-
ings (4) on the other gear wheels. Check the gear
flank play; refer to Flank Clearance, Check-
ing page 76.
1
3
2
P0008044
1
3
2
P0008045
1
3
3
4
4
2
P0008046
21-5 Timing Gears and Shaft
80 47701798 05-2013 © AB VOLVO PENTA
